Chapter 1 Set Up Your Network

ZyWALL/USG Series Handbook

2 In the Internet Access page, you can configure Internet connections from two Internet service

providers (ISPs). Connect your ISP devices to your ZyWALL/USG WAN port, select I have two

ISPs if you want to configure two Internet connections or leave it cleared to configure just one.

Choose the Encapsulation option to be PPP over Ethernet, leave Zone as default setting

Internet connection belongs to the WAN zone. Leave the IP Address Assignment section to be

the Auto and click Next.

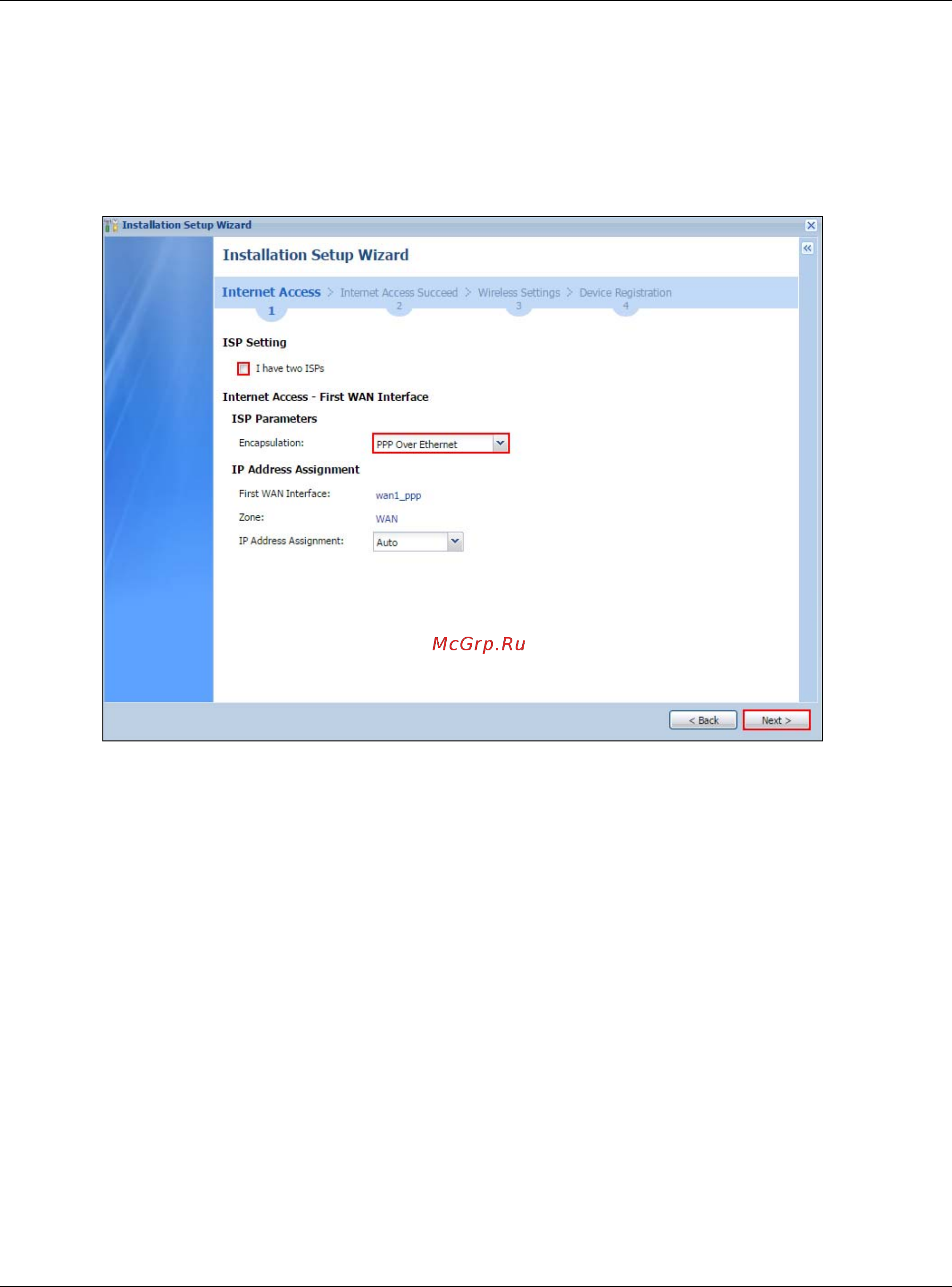

Figure 7 Installation Setup Wizard > Welcome > Internet Access
