Chapter 1 Set Up Your Network

ZyWALL/USG Series Handbook

3 Select the Authentication Type to be the authentication method by the remote node. Enter the

User Name and Password exactly as given by your ISP or network administrator. Select Nailed-

UP if you want to keep the connection always up or type the desired Idle Timeout value in

seconds. Click Next.

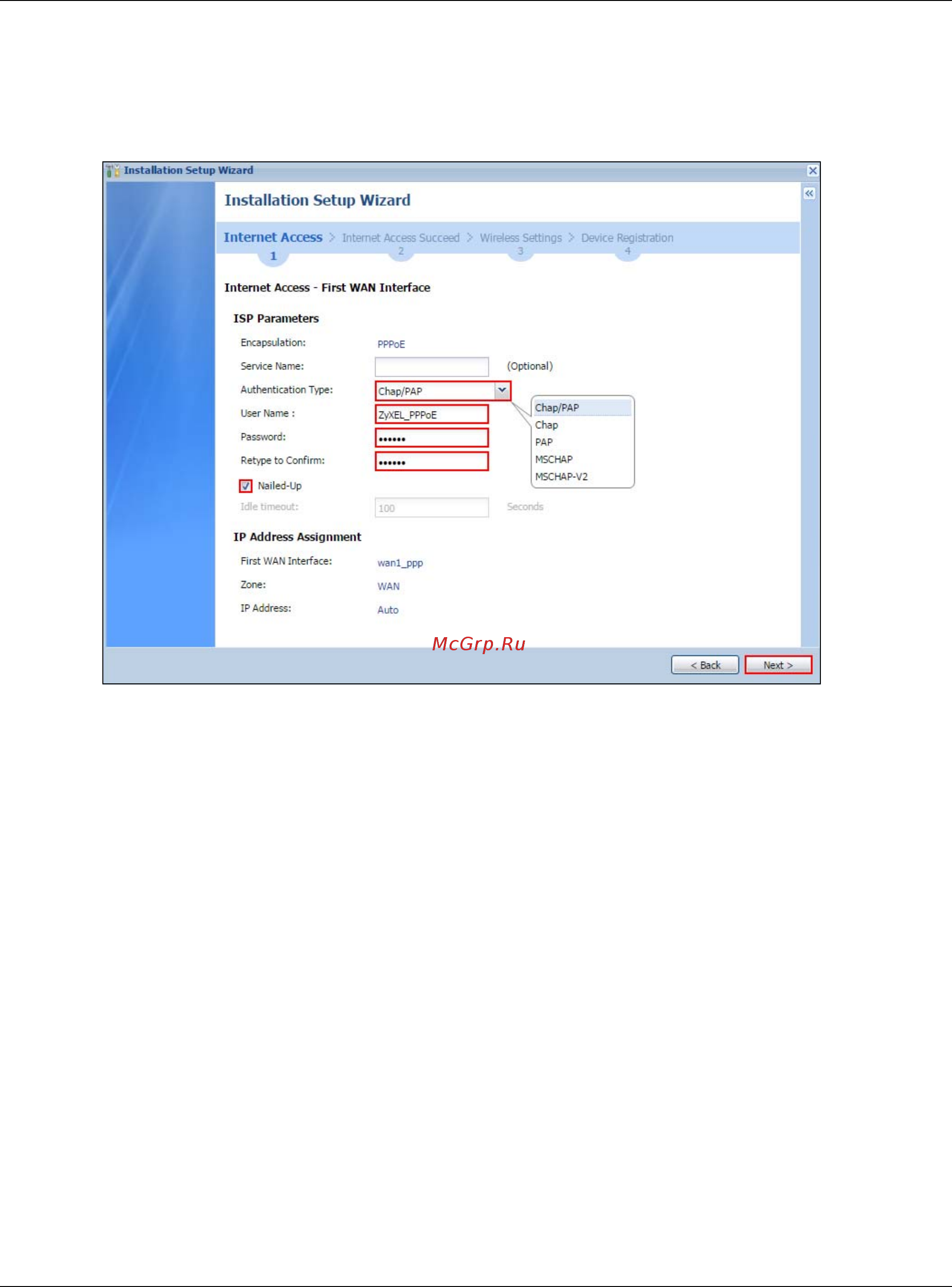

Figure 8 Installation Setup Wizard > Welcome > Internet Access
