Industrial Secure Router User's Manual Network Address Translation

7-5

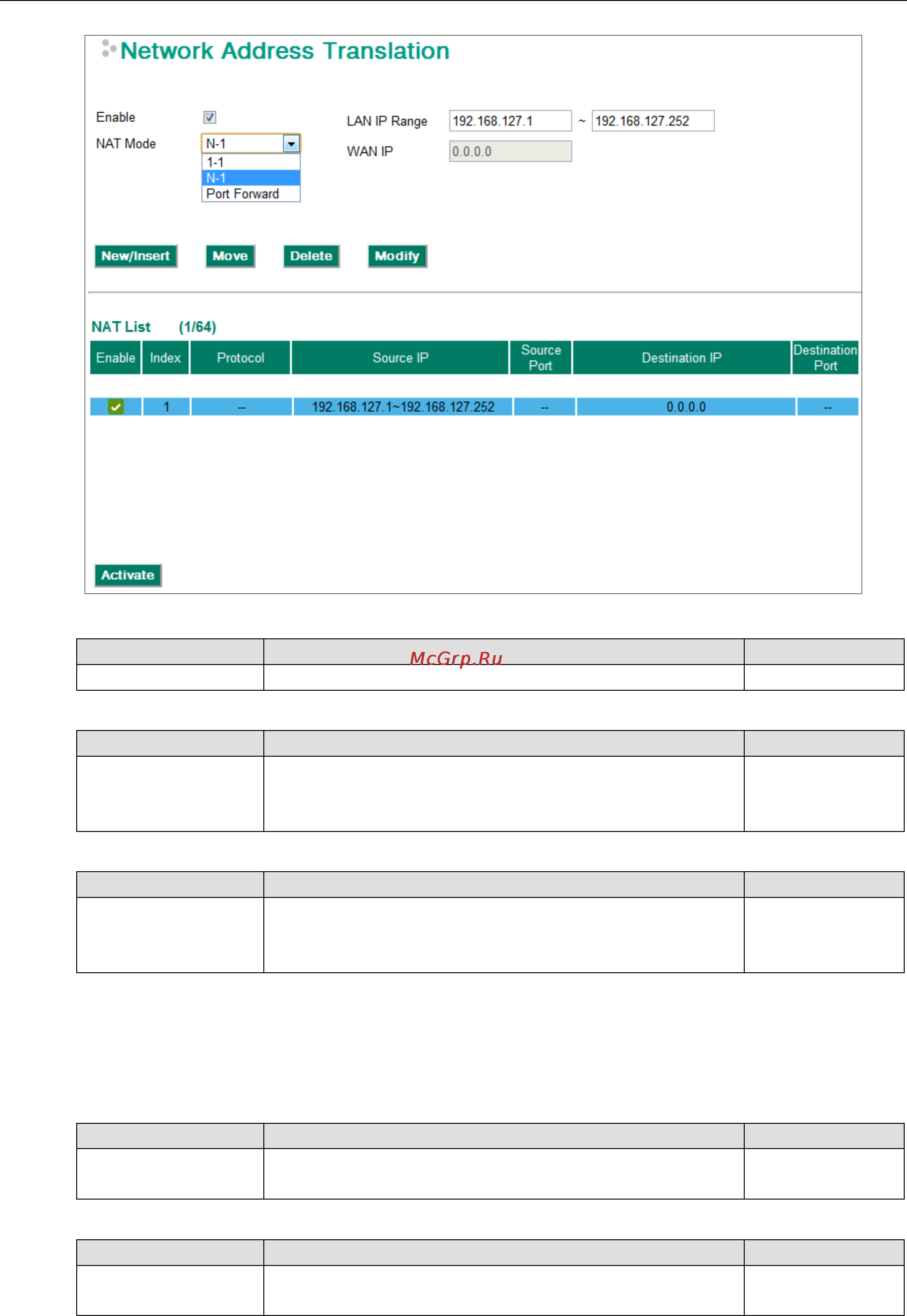

Enable/Disable NAT Policy

Setting Description Factory Default

Enable or Disable Enable or disable the selected NAT policy Enabled

NAT Mode

Setting Description Factory Default

N-1

1-1

Port Forwarding

Select the NAT types N-1

Interface (N-1 mode)

Setting Description Factory Default

Auto

WAN1

WAN2

Select the Interface for this NAT Policy Auto

The Industrial Secure Router provides a Dual WAN backup function for network redundancy. If the interface is

set to Auto, the NAT Mode is set to N-1, and the WAN backup function is enabled, the primary WAN interface

is WAN1. If the WAN1 connection fails, the WAN interface of this N-1 policy will apply to WAN2 and switch to

WAN2 for N-1 outgoing traffic until the WAN1 interface recovers.

IP Range

Setting Description Factory Default

IP address Select the Internal IP range for IP translation to WAN IP

address

None

WAN IP (N-1 mode)

Setting Description Factory Default

IP address The IP address of the user selected interface (WAN1, WAN2,

and Auto) in this N-to-1 policy.

None
