Industrial Secure Router User's Manual EDR-810 Series Features and Functions
3-10
Active
Setting Description Factory Default
Checked The Moxa switch can be accessed by the activated user name Enabled
Unchecked The Moxa switch can’t be accessed by the non-activated user
Authority
Setting Description Factory Default
admin The account has read/write access of all configuration
parameters.
admin
user The account can only read configuration but without any
modification.

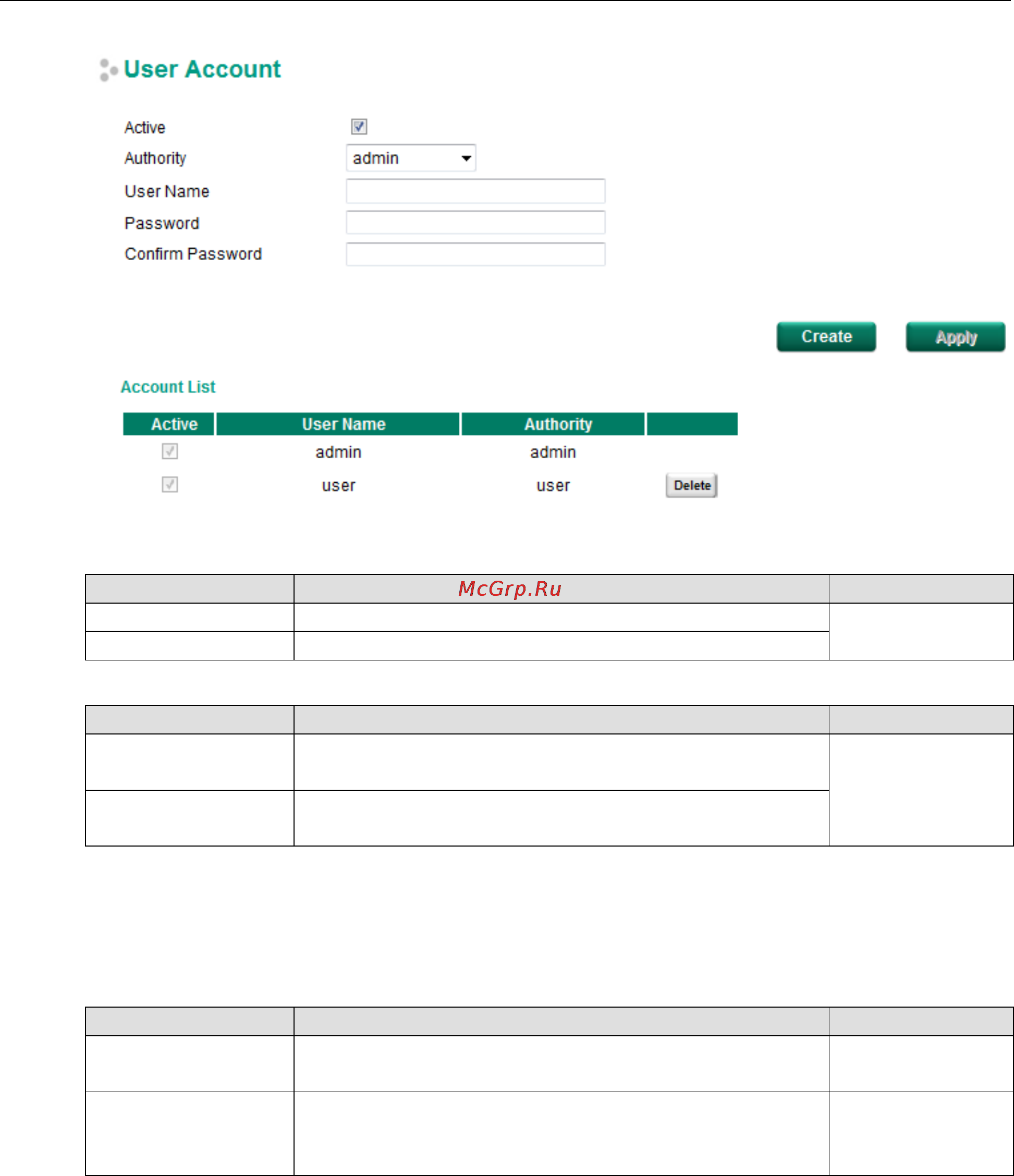

Create New Account
Input the user name, password and assign the authority to the new account. Once apply the new setting, the
new account will be shown under the Account List table.
Setting Description Factory Default
User Name
(Max. of 30 characters)
User Name None
Password Password for the user account.
Minimum requirement is 4 characters, maximum of 16
characters
None
