Industrial Secure Router User's Manual EDR-810 Series Features and Functions
3-2
Quick Setting Profile
WAN Routing Quick Setting
The EDR-810 series supports WAN Routing Quick Setting, which creates a routing function between LAN ports
and WAN ports defined by users. Follow the wizard’s instructions to configuring the LAN and WAN ports.

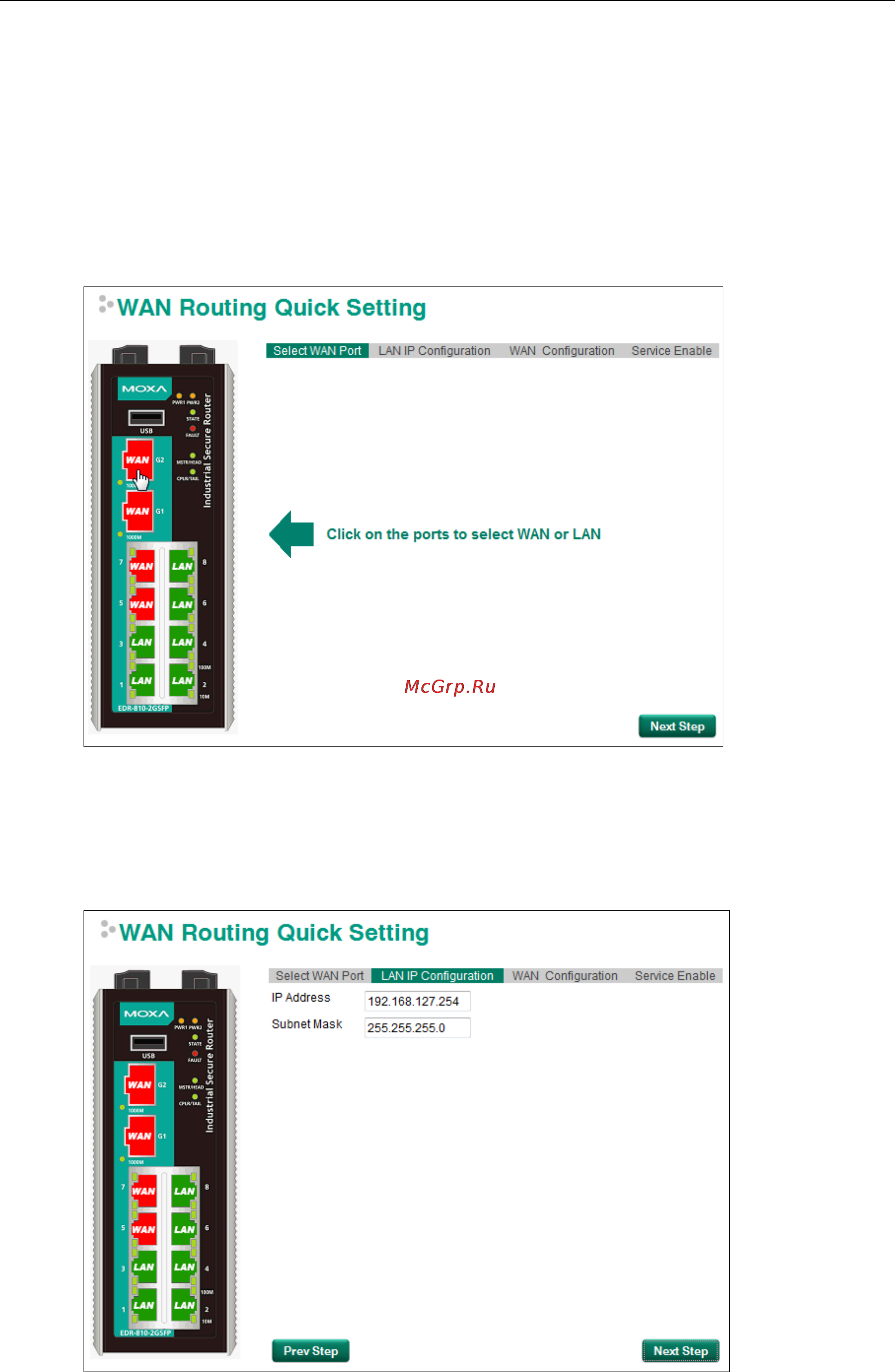

Step 1: Define the WAN ports and LAN ports
Click on the ports in the figure to define the WAN ports and LAN ports.
Step 2: Configure the LAN IP address of the EDR-810 and the subnet address of
the LAN ports
Configure the LAN IP address of the EDR-810 to define the subnet of the LAN ports on the secure router. The
default IP address of the EDR-810 on the LAN side is 192.168.127.254, and the default subnet address is
192.168.127.0/24.
