Industrial Secure Router User's Manual EDR-810 Series Features and Functions
3-13
Time Server IP/Name
Setting Description Factory Default
IP address or name of
time server
The IP or domain address (e.g., 192.168.1.1,
time.stdtime.gov.tw, or time.nist.gov).
None
IP address or name of
secondary time server
The Moxa switch will try to locate the secondary NTP server if
the first NTP server fails to connect.
Enable NTP/SNTP Server
Setting Description Factory Default
Enable/Disable Enables SNTP/NTP server functionality for clients Disabled
Warning Notification
Since industrial Ethernet devices are often located at the endpoints of a system, these devices will not always
know what is happening elsewhere on the network. This means that an industrial secure router that connects
to these devices must provide system maintainers with real-time alarm messages. Even when control
engineers are out of the control room for an extended period of time, they can still be informed of the status of
devices almost instantaneously when exceptions occur. The Moxa industrial secure router supports different
approaches to warn engineers automatically, such as email, trap, syslog and relay output. It also supports one
digital input to integrate sensors into your system to automate alarms by email and relay output.

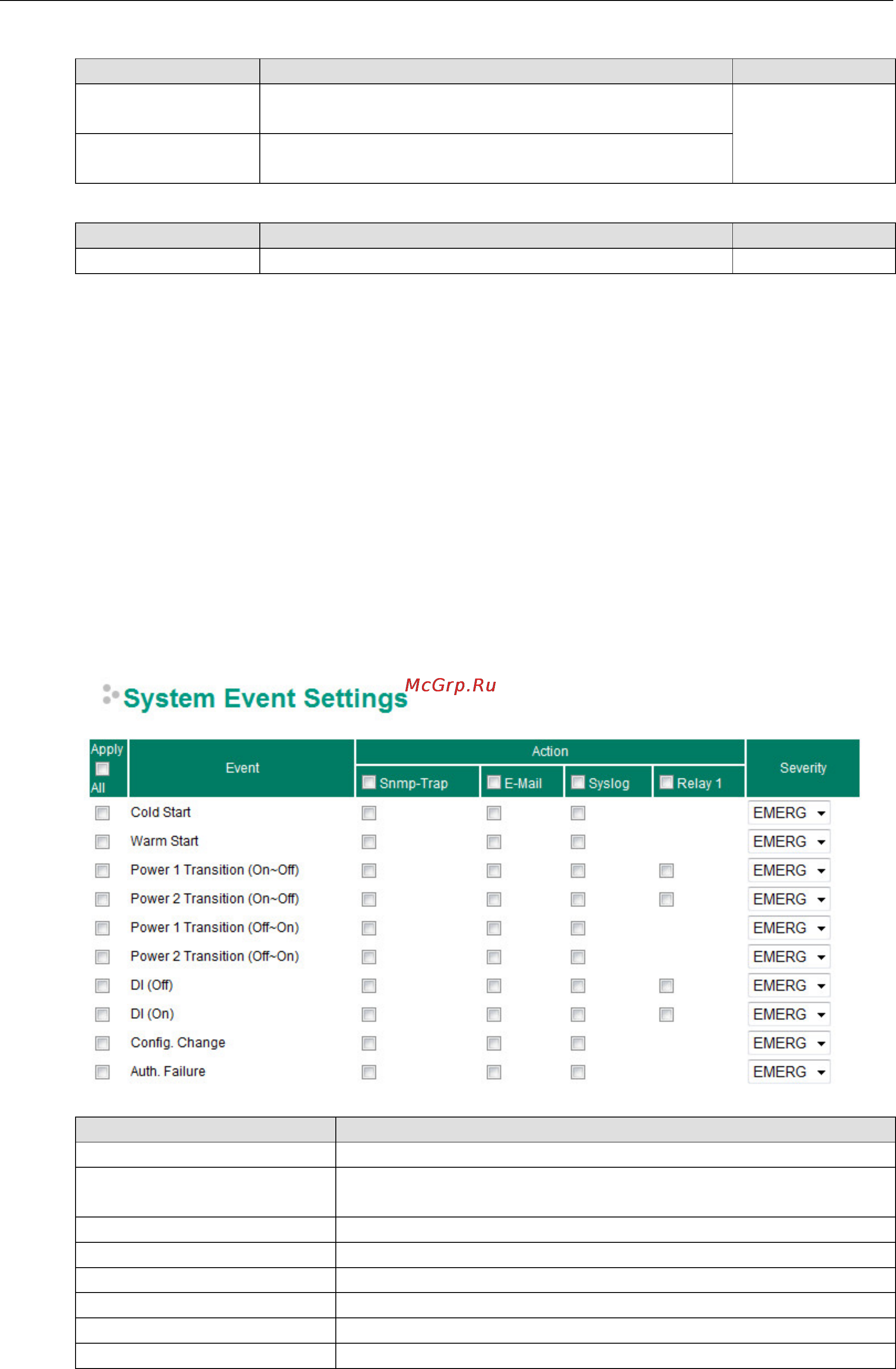

System Event Settings
System Events are related to the overall function of the switch. Each event can be activated independently with
different warning approaches. Administrator also can decide the severity of each system event.
System Events
Description
Cold Start Power is cut off and then reconnected.
Warm Start Moxa industrial secure router is rebooted, such as when network
parameters are changed (IP address, subnet mask, etc.).
Power Transition (OnOff)
Moxa industrial secure router is powered down.
Power Transition (OffOn)
Moxa industrial secure router is powered up.
DI (Off) Digital input state is “0”
DI (On) Digital input state is “1”
Configuration Change Any configuration item has been changed
Authentication Failure An incorrect password was entered.
