Industrial Secure Router User's Manual Virtual Private Network (VPN)
9-12

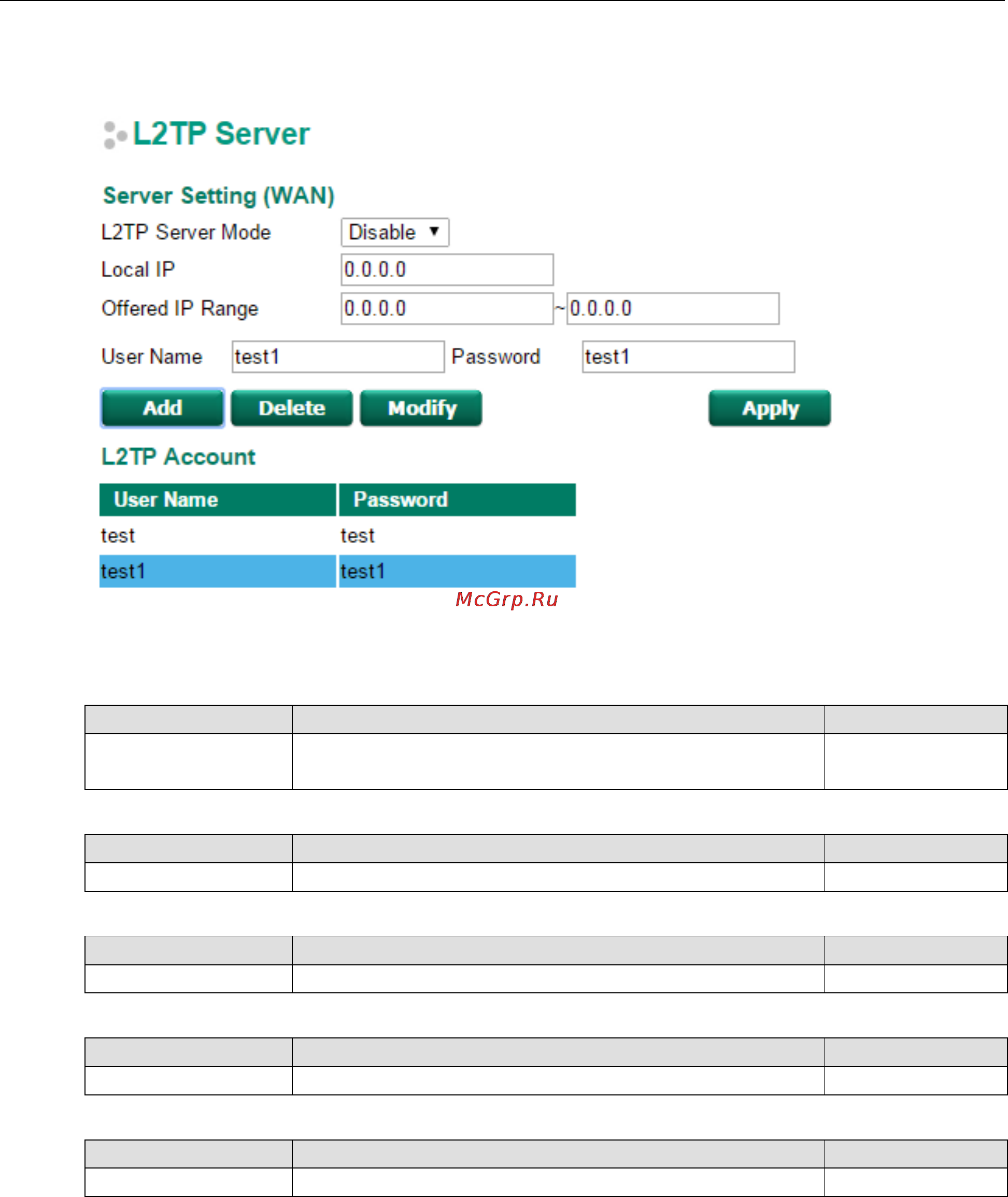

L2TP Configuration
The Industrial Secure Router supports up to 10 accounts with different user names and passwords.
L2TP Server Mode
Setting Description Factory Default
Enable / Disable Enable or Disable the L2TP function on the WAN1 or WAN 2
interface
Disable
Local IP
Setting Description Factory Default
IP Address The IP address of the Local Subnet 0.0.0.0
Offered IP Range
Setting Description Factory Default
IP Address Offered IP range is for the L2TP clients 0.0.0.0
Login User Name
Setting Description Factory Default
Max. to xx character. User Name for L2TP connection NULL
Login Password
Setting Description Factory Default
Max. to xx character. Password for L2TP connection NULL
Examples for Typical VPN Applications
Site to Site IPSec VPN tunnel with Pre-Shared Key
The following example shows how to create a secure LAN to LAN VPN tunnel between the Central site and
Remote site via an Intranet network.
