Industrial Secure Router User's Manual Routing
5-4
RIP Enable Interface
Setting Description Factory Default
WAN Check the checkbox to enable RIP in the WAN interface.
Unchecked
LAN Check the checkbox to enable RIP in the LAN interface.
RIP Interface Table (EDR-810 series only)
Setting Description Factory Default
Enable/Disable Check the checkbox to enable RIP for each interface. Unchecked

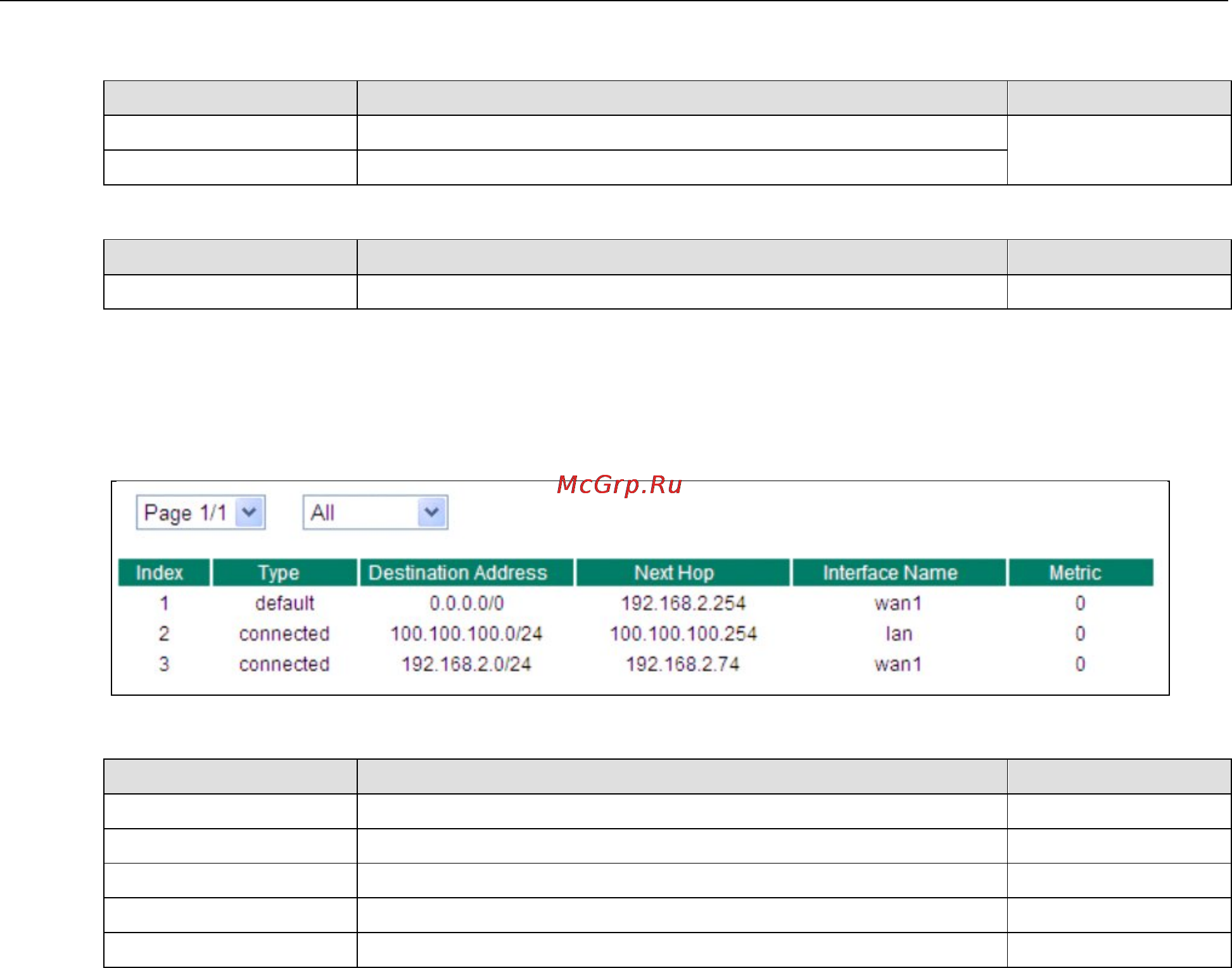

Routing Table
The Routing Table page shows all routing entries.
All Routing Entry List
Setting Description Factory Default
All Show all routing entries N/A
Connected
Show connected routing entries
N/A
Static Show Static routing entries N/A
RIP Show RIP routing entries N/A
Others Show others routing entries N/A
