Industrial Secure Router User's Manual EDR-810 Series Features and Functions

3-32

Join Port

Setting Description Factory Default

Select/Deselect

Checkmark the appropriate check boxes to select the join ports

for this multicast group.

None

QoS and Rate Control

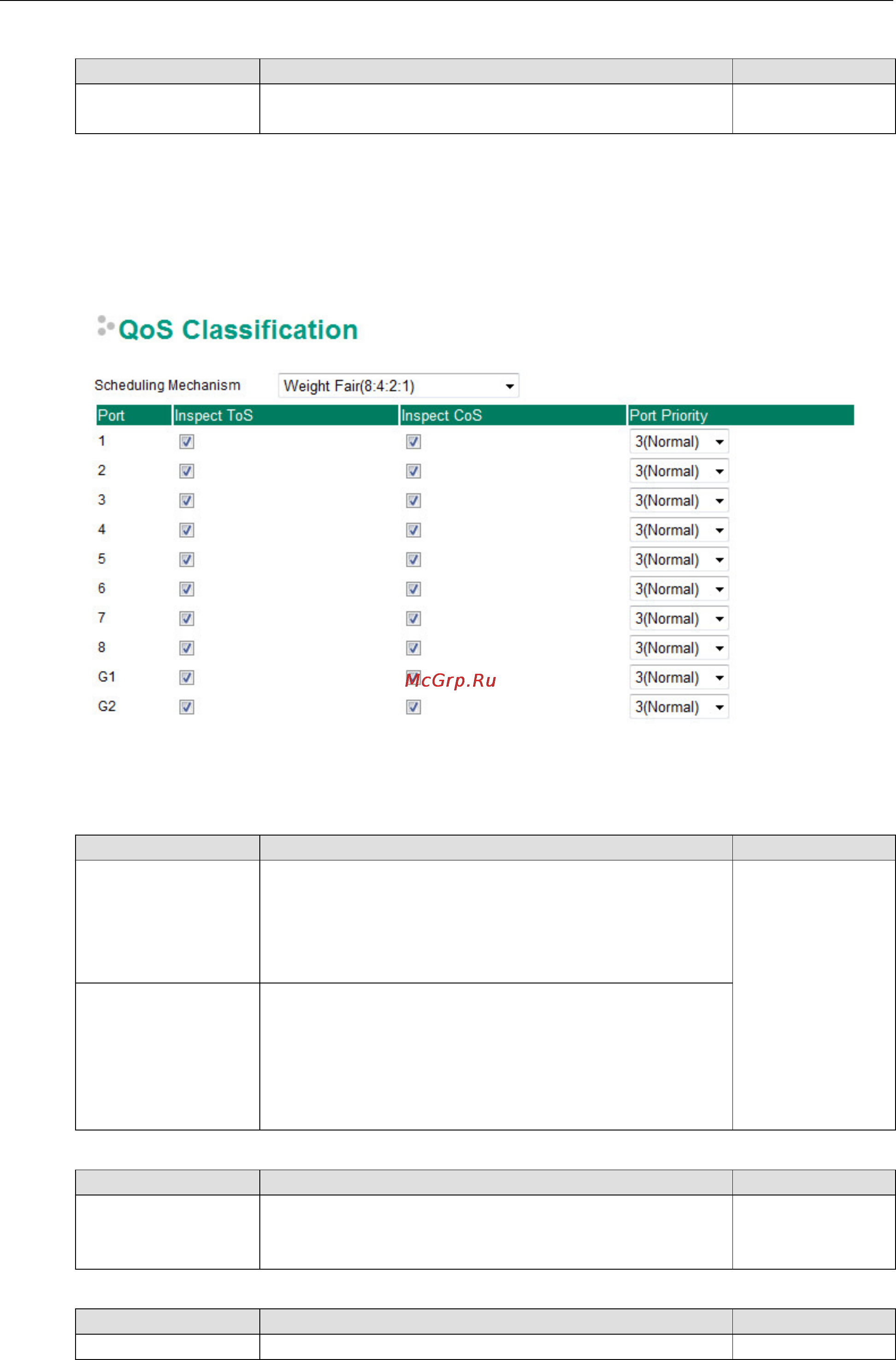

QoS Classification

The Moxa switch supports inspection of layer 3 ToS and/or layer 2 CoS tag information to determine how to

classify traffic packets.

Scheduling Mechanism

Setting Description Factory Default

Weight Fair The Moxa industrial secure router has 4 priority queues. In the

weight fair scheme, an 8, 4, 2, 1 weighting is applied to the four

priorities. This approach prevents the lower priority frames

from being starved of opportunity for transmission with only a

slight delay to the higher priority frames.

Weight Fair

Strict In the Strict-priority scheme, all top-priority frames egress a

port until that priority’s queue is empty, and then the next

lower priority queue’s frames egress. This approach can cause

the lower priorities to be starved of opportunity for transmitting

any frame

s but ensures that all high priority frames will egress

the switch as soon as possible.

Inspect ToS

Setting Description Factory Default

Enable/Disable Enables or disables the Moxa industrial secure router for

inspecting Type of Service (ToS) bits in the IPV4 frame to

determine the priority of each frame.

Enabled

Inspect COS

Setting Description Factory Default

Enable/Disable Enables or disables the Moxa industrial secure router for Enabled
