Quick Automation Profile

Ethernet Fieldbus protocols are popular in industrial automation applications. In fact, many Fieldbus protocols

(e.g., EtheNet/IP and Modbus TCP/IP) can operate on an industrial Ethernet network, with the Ethernet port

number defined by IANA (Internet Assigned Numbers Authority). The Industrial Secure Router provides an

easy to use function called Quick Automation Profile that includes 45 different pre-defined profiles (Modbus

TCP/IP, Ethernet/IP, etc.), allowing users to create an industrial Ethernet Fieldbus firewall policy with a single

click.

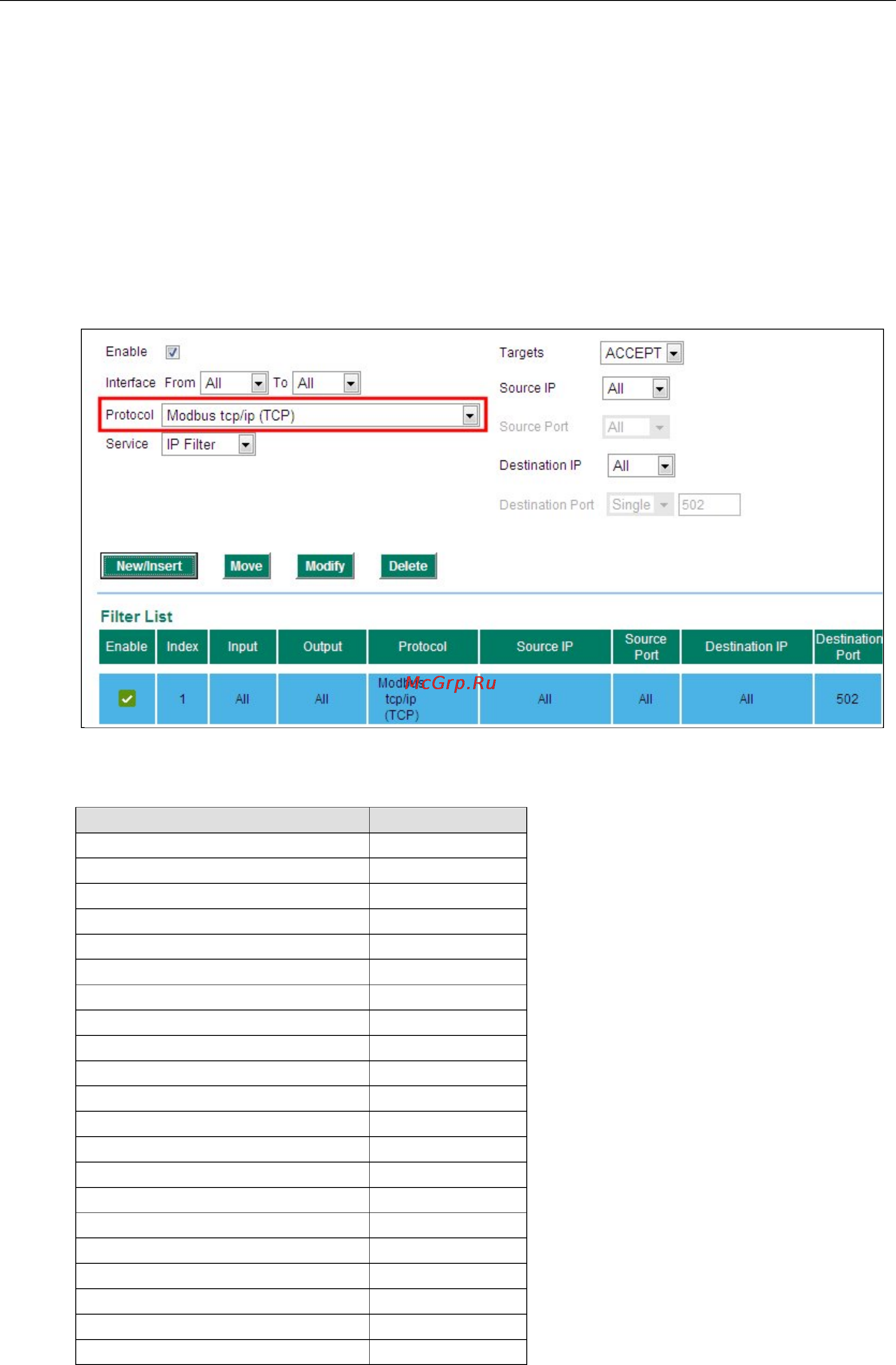

For example, if the user wants to create a Modbus TCP/IP firewall policy for an internal network, the user just

needs to select the Modbus TCP/IP(TCP) or Modbus TCP/IP(UDP) protocol from the Protocol drop-down

menu on the Firewall Policy Setting page.

The following table shows the Quick Automation Profile for Ethernet Fieldbus Protocol and the corresponding

port number

Ethernet Fieldbus Protocol Port Number

EtherCat port (TCP) 34980

EtherCat port (UDP) 34980

EtherNet/IP I/O (TCP) 2222

EtherNet/IP I/O (UDP) 2222

EtherNet/IP Messaging (TCP) 44818

EtherNet/IP Messaging (UDP) 44818

FF Annunciation (TCP) 1089

FF Annunciation (UDP) 1089

FF Fieldbus Message (TCP) 1090

FF Fieldbus Message (UDP) 1090

FF System Management (TCP) 1091

FF System Management (UDP) 1091

FF LAN Redundancy Port (TCP) 3622

FF LAN Redundancy Port (UDP) 3622

LonWorks (TCP)

2540

LonWorks (UDP) 2540

LonWorks2 (TCP) 2541

LonWorks2 (UDP) 2541

Modbus TCP/IP (TCP) 502

Modbus TCP/IP (UDP) 502

PROFInet RT Unicast (TCP) 34962
