Industrial Secure Router User's Manual EDR-810 Series Features and Functions

3-6

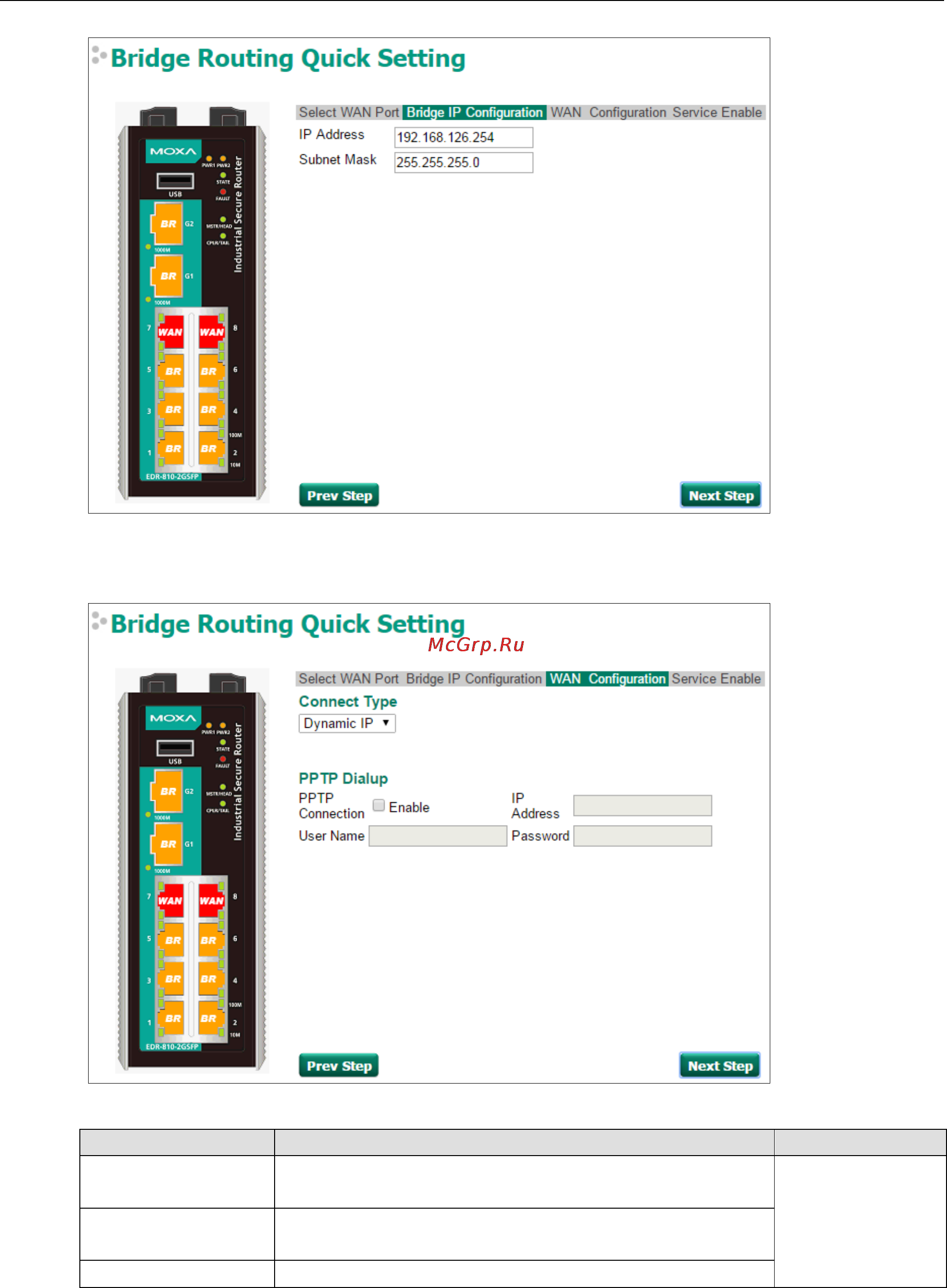

Step 3: Configure the WAN port type

Configure the WAN port type to define how the secure router switch connects to the WAN.

Connect Type

Setting Description Factory Default

Dynamic IP Get the WAN IP address from a DHCP server or via a PPTP

connection.

Dynamic IP

Static IP Set a specific static WAN IP address or create a connection to

PPTP server with a specific IP address.

PPPoE Get the WAN IP address through PPPoE Dialup.
