Industrial Secure Router User's Manual EDR-810 Series Features and Functions

3-4

Static IP

PPPoE

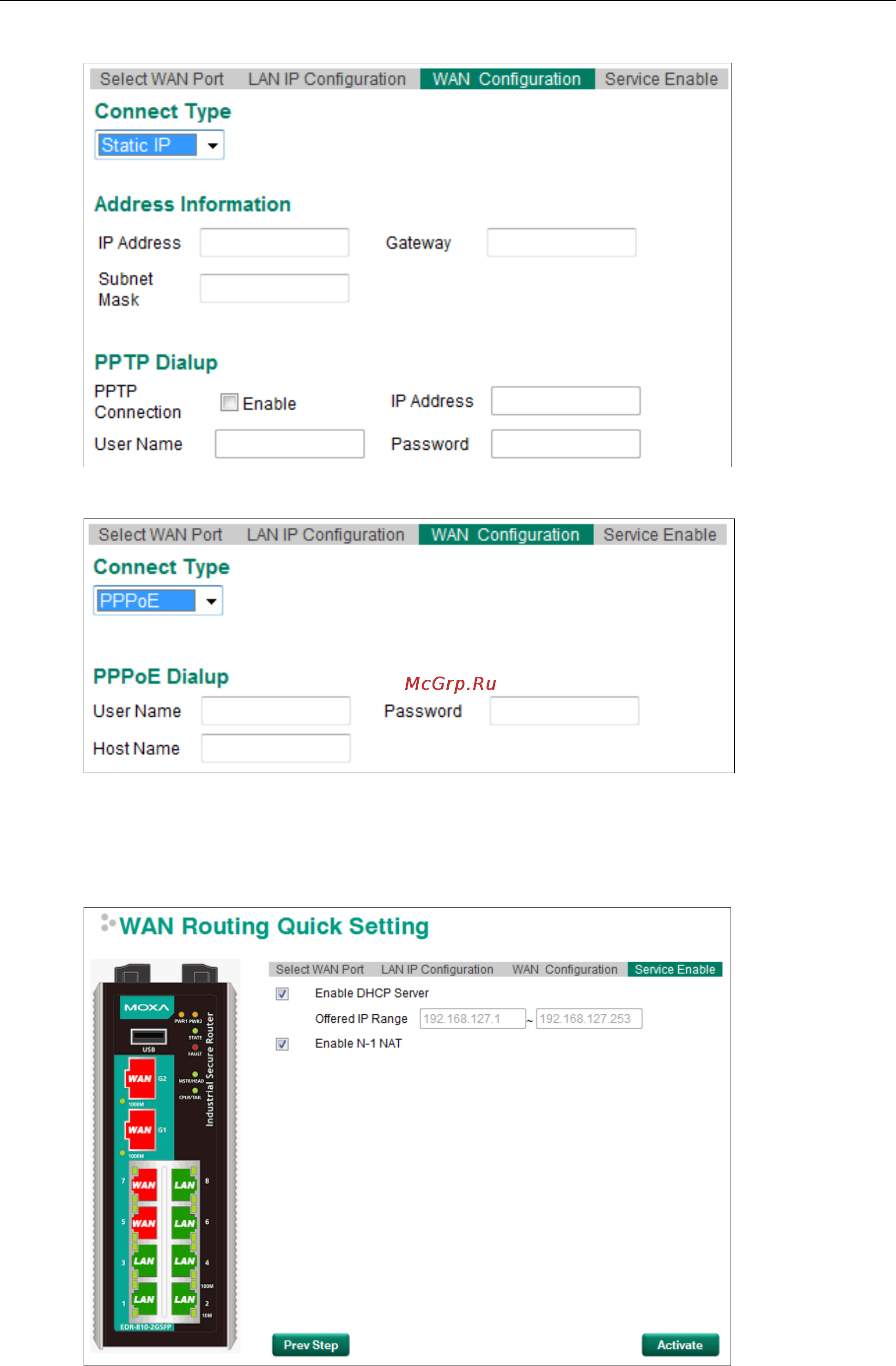

Step 4: Enable services

Check Enable DHCP Server to enable the DHCP server for LAN devices. The default IP address range will be

set automatically. To modify the IP range, go to the DHCP Server page. N-1 NAT will be also enabled by

default.
