Industrial Secure Router User's Manual EDR-810 Series Features and Functions

3-24

Port Mirror

The Port Mirror function can be used to monitor data being transmitted through a specific port. This is done

by setting up another port (the mirror port) to receive the same data being transmitted from, or both to and

from, the port under observation. Using a mirror port allows the network administrator to sniff the observed

port to keep tabs on network activity.

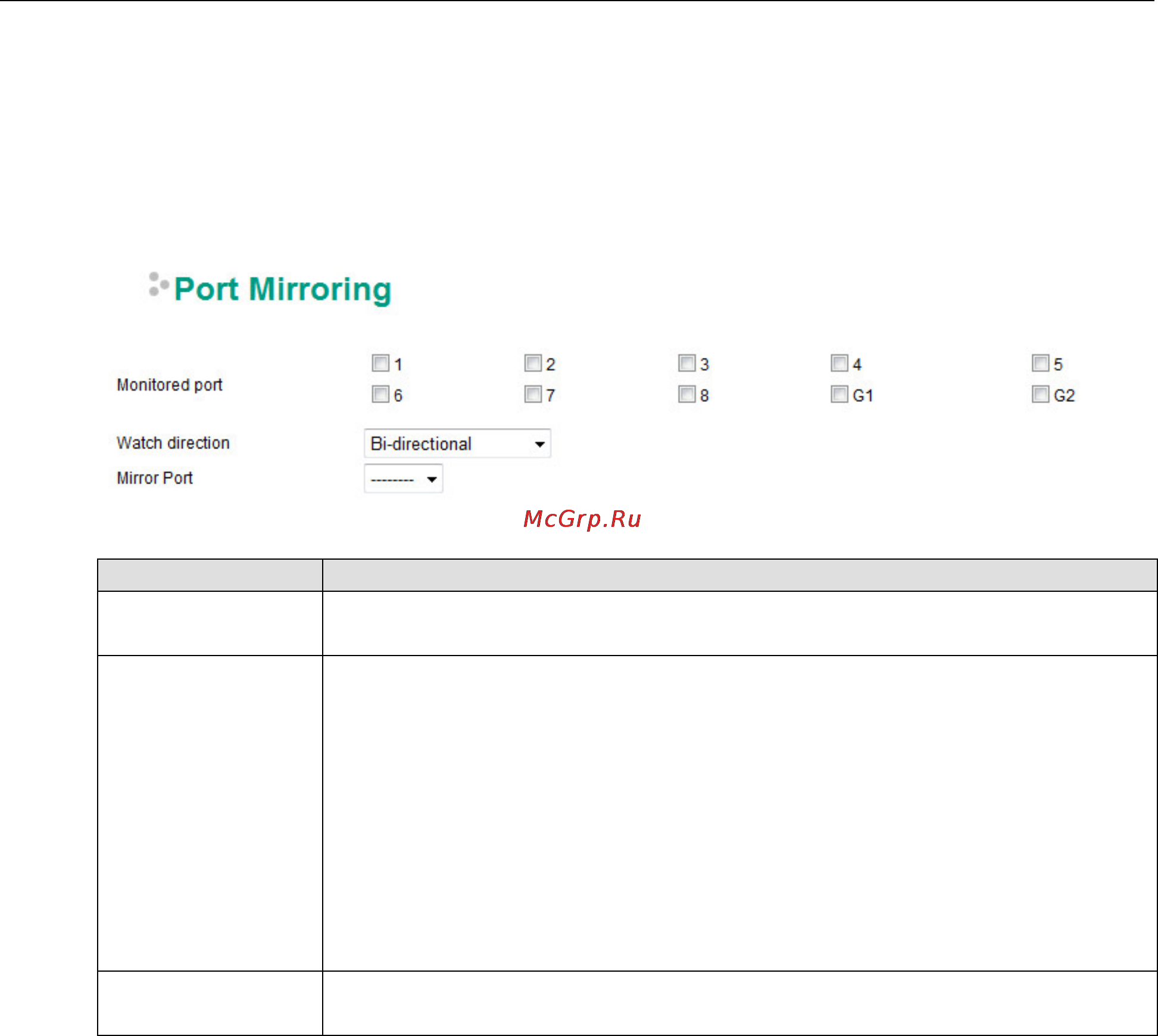

Port Mirroring Settings

Setting Description

Monitored Port Select the number of the ports whose network activity will be monitored. Multiple port

selection is acceptable.

Watch Direction Select one of the following two watch direction options:

• Input data stream:

Select this option to monitor only those data packets coming into the Moxa

industrial secure router’s port.

• Output data stream:

Select this option to monitor only those data packets being sent out through the

Moxa industrial secure router’s port.

• Bi-directional:

Select this option to monitor data packets both coming into, and being sent out

through, the Moxa industrial secure router’s port.

Mirror Port Select the number of the port that will be used to monitor the activity of the monitored

port.

Using Virtual LAN

Setting up Virtual LANs (VLANs) on your Moxa industrial secure router increases the efficiency of your network

by dividing the LAN into logical segments, as opposed to physical segments. In general, VLANs are easier to

manage.

The VLAN Concept

What is a VLAN?

A VLAN is a group of devices that can be located anywhere on a network, but which communicate as if they are

on the same physical segment. With VLANs, you can segment your network without being restricted by physical

connections—a limitation of traditional network design. With VLANs you can segment your network into:

• Departmental groups—you could have one VLAN for the marketing department, another for the finance

department, and another for the product development department.

• Hierarchical groups—you could have one VLAN for directors, another for managers, and another for

general staff.

• Usage groups—you could have one VLAN for email users and another for multimedia users.
