Industrial Secure Router User's Manual EDR-810 Series Features and Functions

3-40

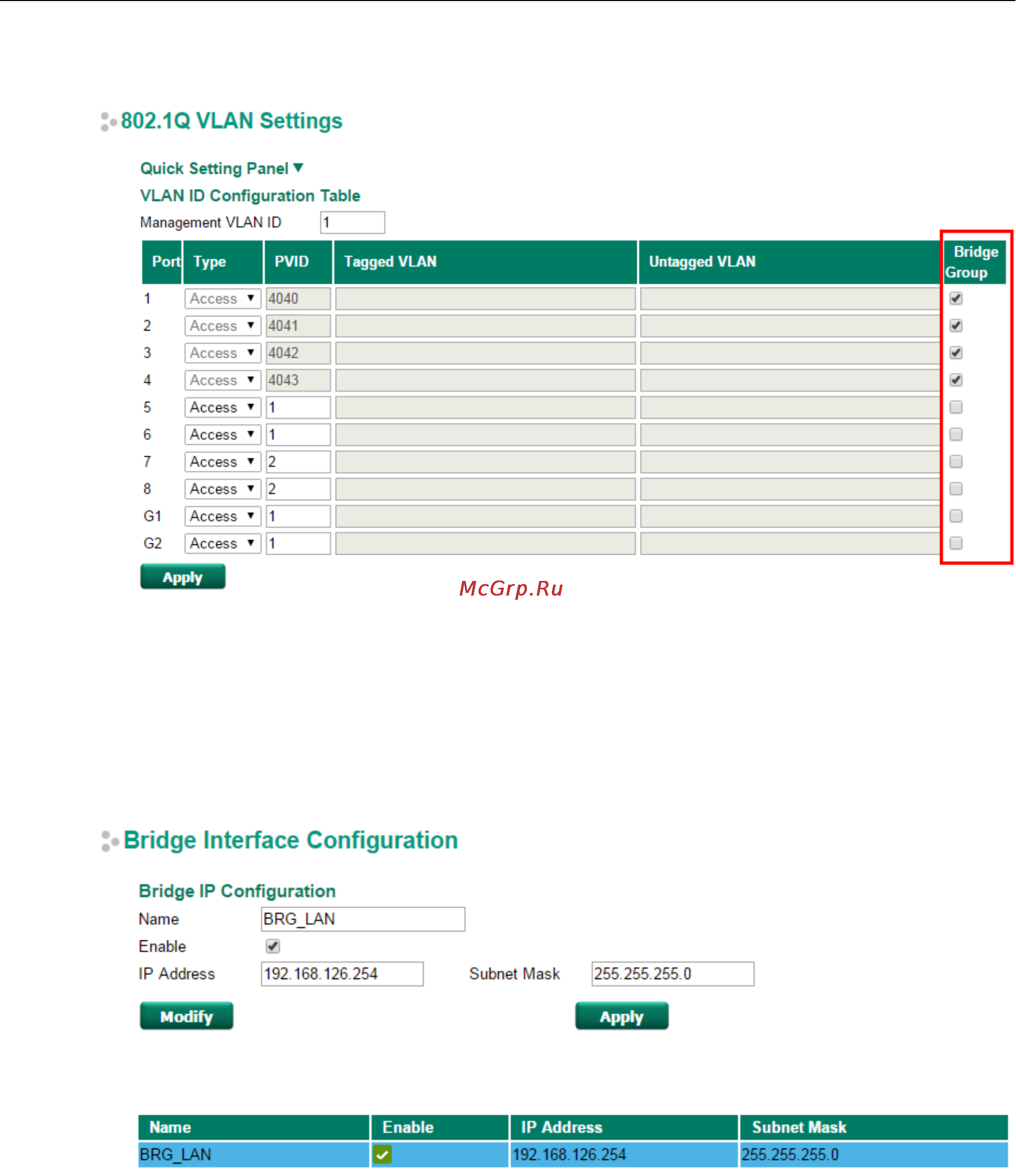

Adding Ports into the Bridge Interface

In previous VLAN settings under Layer 2 Functions, you should click on the Bridge Group checkbox to add the

port into the Bridge Group Interface, and then click Apply. The system will automatically generate the VLAN for

each port starting from 4040. This action will take about 60 to 90 seconds to complete; do not take any other

actions in the web console during the configuration stage.

Modify and Activate the Bridge Group Interface

To enable the interface, checkmark the Enable checkbox. You can modify the interface name, IP address, and

Subnet Mask of the Bridge Group Interface. To activate the setting, click Modify and then Apply
