Industrial Secure Router User's Manual EDR-810 Series Features and Functions
3-5
Step 5: Activate the settings
Click the Activate button.
NOTE
An existin
g configuration will be overwritten by new settings when processing WAN Routing Quick Setting
.
Bridge Routing Quick Setting
The EDR-810 series supports WAN Routing Quick Setting, which creates a routing function between LAN ports
and WAN ports defined by users. Follow the wizard’s instructions to configuring the LAN and WAN ports.

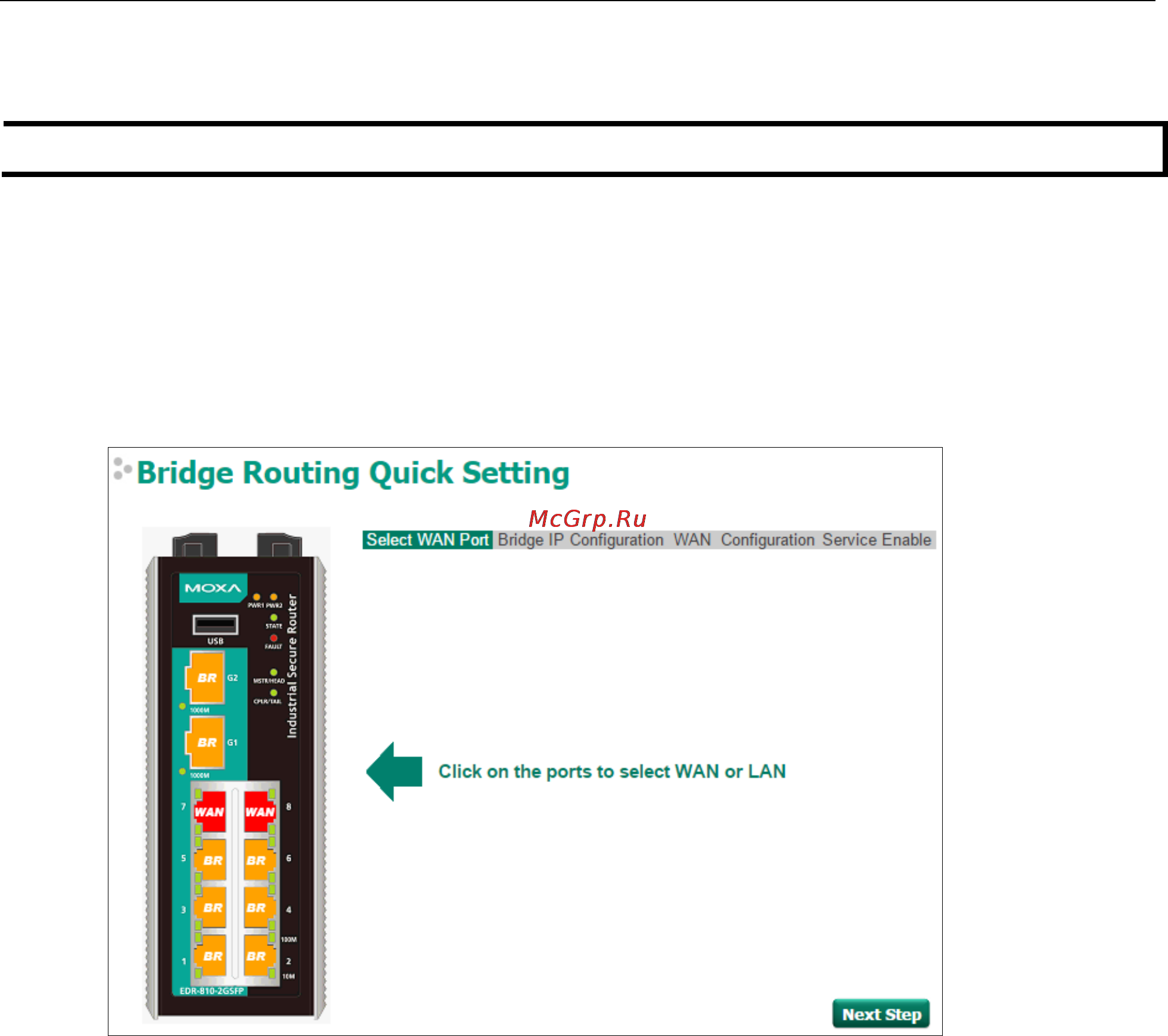

Step1: Define the WAN port and Bridge ports
Click on the ports in the figure to define the WAN ports and Bridge ports.
Step 2: Configure the Bridge LAN IP address of the EDR-810 and the subnet
address of the Bridged ports
Configure the Bridge LAN Interface IP address of the EDR-810 to define the subnet of the Bridge LAN ports on
the secure router. The default IP address of the EDR-810 on the Bridge LAN side is 192.168.126.254, and the
default subnet address is 192.168.126.0/24.
