Industrial Secure Router User's Manual EDR-810 Series Features and Functions
3-12

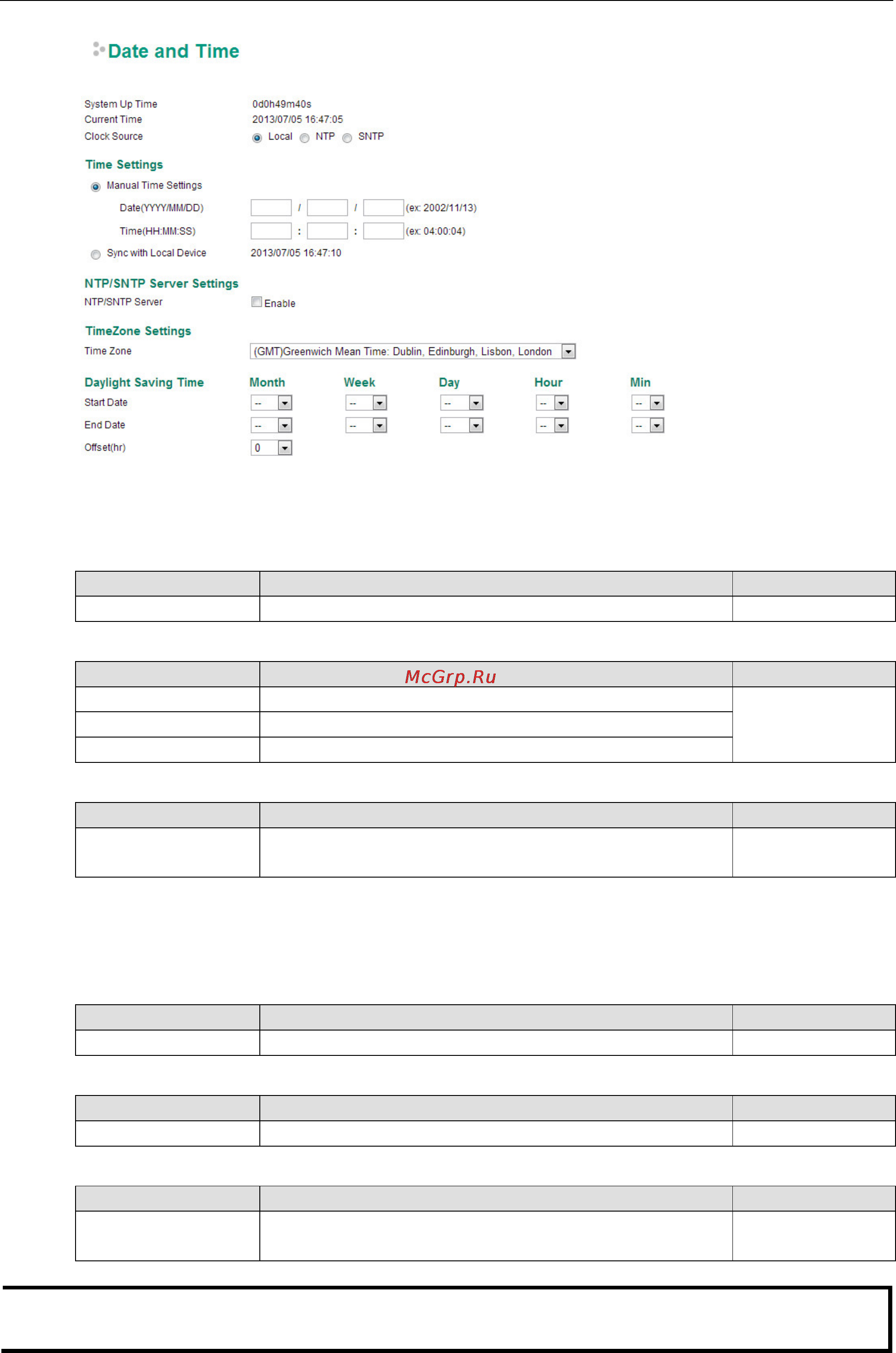

System Up Time
Indicates how long the Moxa industrial secure router remained up since the last cold start.
Current Time
Setting Description Factory Default
User-specified time Indicates time in yyyy-mm-dd format. None
Clock Source
Setting Description Factory Default
Local Configure clock source from local time Local
NTP Configure clock source from NTP
SNTP Configure clock source from SNTP
Time Zone
Setting Description Factory Default
Time zone Specifies the time zone, which is used to determine the local
time offset from GMT (Greenwich Mean Time).
GMT (Greenwich
Mean Time)
Daylight Saving Time
The Daylight Saving Time settings are used to automatically set the Moxa switch’s time forward according to
national standards.
Start Date
Setting Description Factory Default
User-specified date Specifies the date that Daylight Saving Time begins. None
End Date
Setting Description Factory Default
User-specified date
Specifies the date that Daylight Saving Time ends.
None
Offset
Setting Description Factory Default
User-specified hour Specifies the number of hours that the time should be set
forward during Daylight Saving Time.
None
NOTE
Changing the time zone will automatically correct the current time. Be sure to set the time zone before setting
the time.
