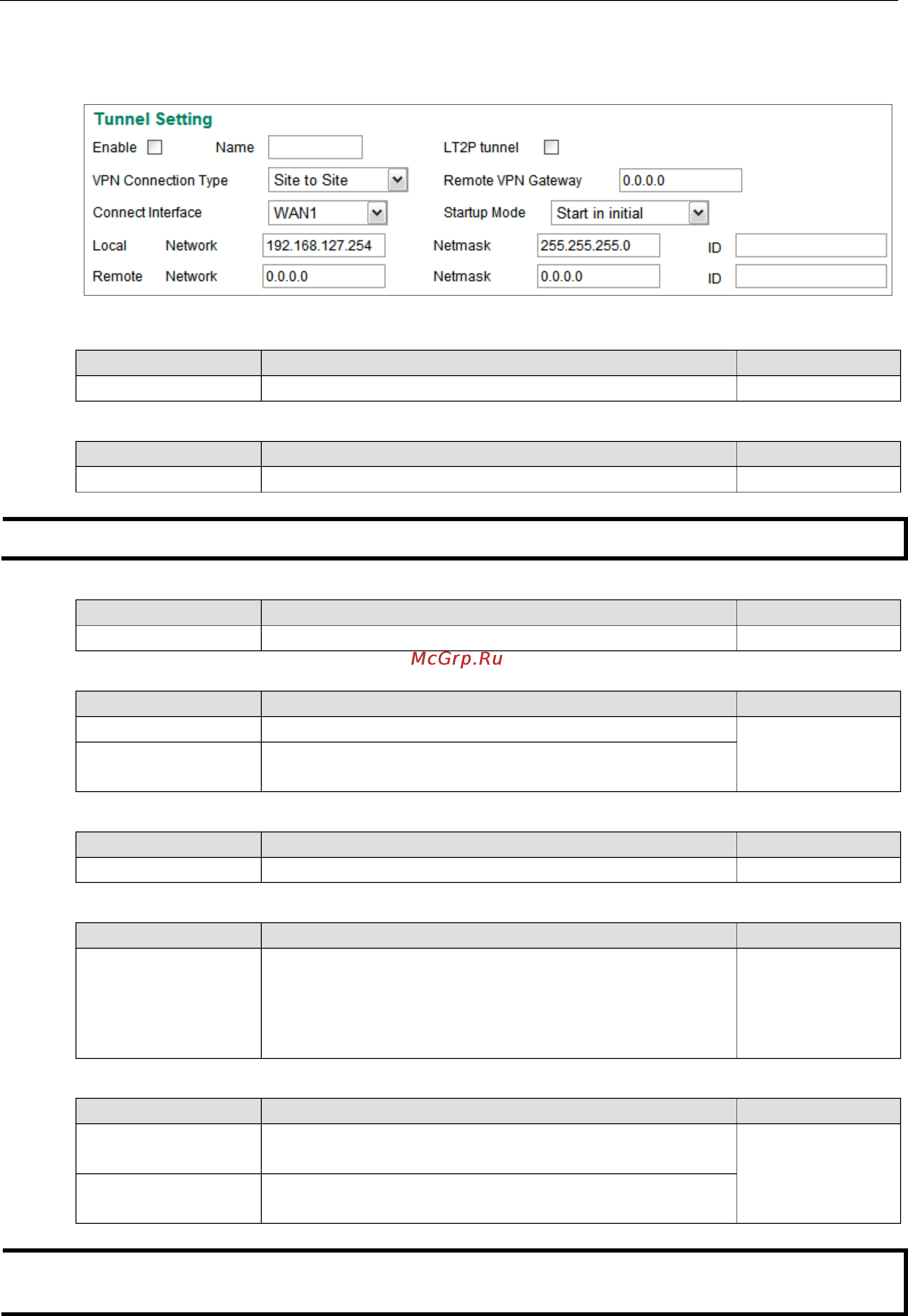

Industrial Secure Router User's Manual Virtual Private Network (VPN)
9-4
Tunnel Setting
Enable or Disable VPN Tunnel
Setting Description Factory Default
Enable or Disable Enable or Disable this VPN Tunnel Disable
Name of VPN Tunnel
Setting Description Factory Default
Max. of 16 characters User defined name of this VPN Tunnel. None
NOTE
T
he first character cannot be a number.
L2TP over IPSec Enable or Disable
Setting Description Factory Default
Enable or Disable Enable or Disable IPSec tunnel over L2TP protocol function None
VPN Connection Type
Setting Description Factory Default
Site to Site VPN tunnel for Local and Remote subnets are fixed Site to Site
Site to Site (Any) VPN tunnel for Remote subnet area is dynamic and Local
subnet is fixed
Remote VPN Gateway
Setting Description Factory Default
IP Address Remote VPN Gateway’s IP Address None
Connection Interface
Setting Description Factory Default
WAN1
WAN2
Default Route
The interface of the VPN Tunnel
If the user enables the WAN backup function, WAN1 would be
the primary default route and WAN2 would be the backup
route.
WAN1
Startup Mode
Setting Description Factory Default
Start in Initial This VPN tunnel will actively initiate the connection with the
Remote VPN Gateway.
Start in Initial
Wait for Connecting This VPN tunnel will wait remote VPN gateway to initiate the
connection
NOTE
The maximum number of
Starts in the initial VPN tunnel is 30. The maximum number of Waits
for connecting
to a VPN tunnel is 100.
