Industrial Secure Router User's Manual EDR-810 Series Features and Functions

3-35

Ingress Policy

Setting Description Factory Default

Limit All Select the ingress rate limit for different packet types Limit Broadcast

Limit Broadcast, Multicast,

Flooded Unicast

Limit Broadcast, Multicast

Limit Broadcast

Ingress/Egress Rate

Setting Description Factory Default

Ingress/Egress Rate Select the ingress/egress rate limit (% of max.

throughput) for all packets from the following options:

Not Limited, 3%, 5%, 10%, 15%, 25%, 35%, 50%,

65%, 85%

Not Limited

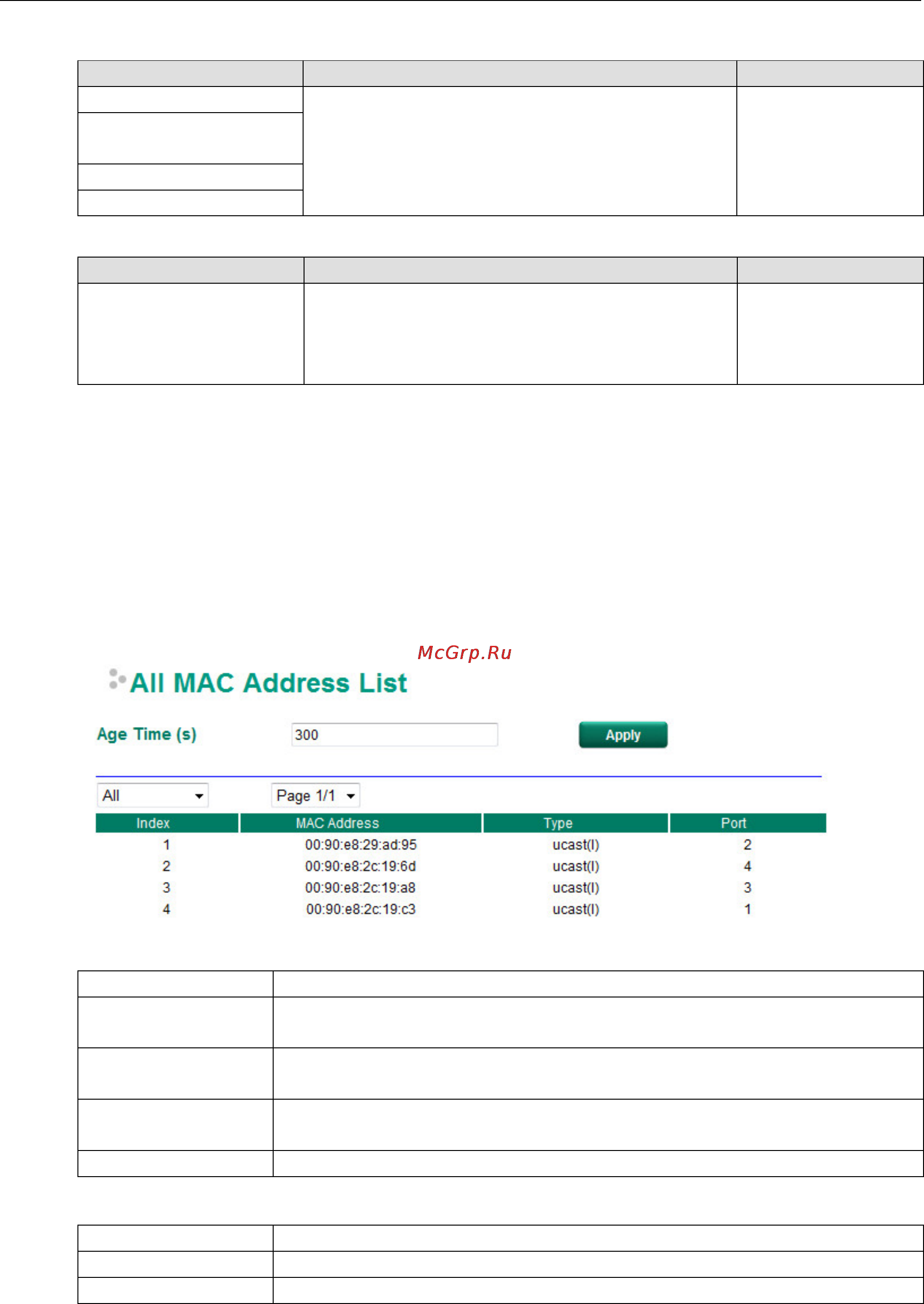

MAC Address Table

The MAC address table shows the MAC address list pass through Moxa industrial secure router. The length of

time(Ageing time: 15 to 3825 seconds) is the parameter defines the length of time that a MAC address entry

can remain in the Moxa router. When an entry reaches its aging time, it “ages out” and is purged from the

router, effectively cancelling frame forwarding to that specific port.

The MAC Address table can be configured to display the following Moxa industrial secure router MAC address

groups, which are selected from the drop-down list.

Drop Down List

ALL Select this item to show all of the Moxa industrial secure router’s MAC addresses.

ALL Learned Select this item to show all of the Moxa industrial secure router’s Learned MAC

addresses.

ALL Static Select this item to show all of the Moxa industrial secure router’s Static, Static Lock,

and Static Multicast MAC addresses.

ALL Multicast Select this item to show all of the Moxa industrial secure router’s Static Multicast MAC

addresses.

Port x Select this item to show all of the MAC addresses dedicated ports.

The table displays the following information:

MAC Address This field shows the MAC address.

Type This field shows the type of this MAC address.

Port This field shows the port that this MAC address belongs to.
