Moxa EDR-810-VPN-2GSFP [52/139] Global settings
![Moxa EDR-810-2GSFP-T [52/139] Global settings](/views2/1196160/page52/bg34.png)
Industrial Secure Router User's Manual EDR-810 Series Features and Functions
3-41
Network Service
DHCP Settings
Global Settings

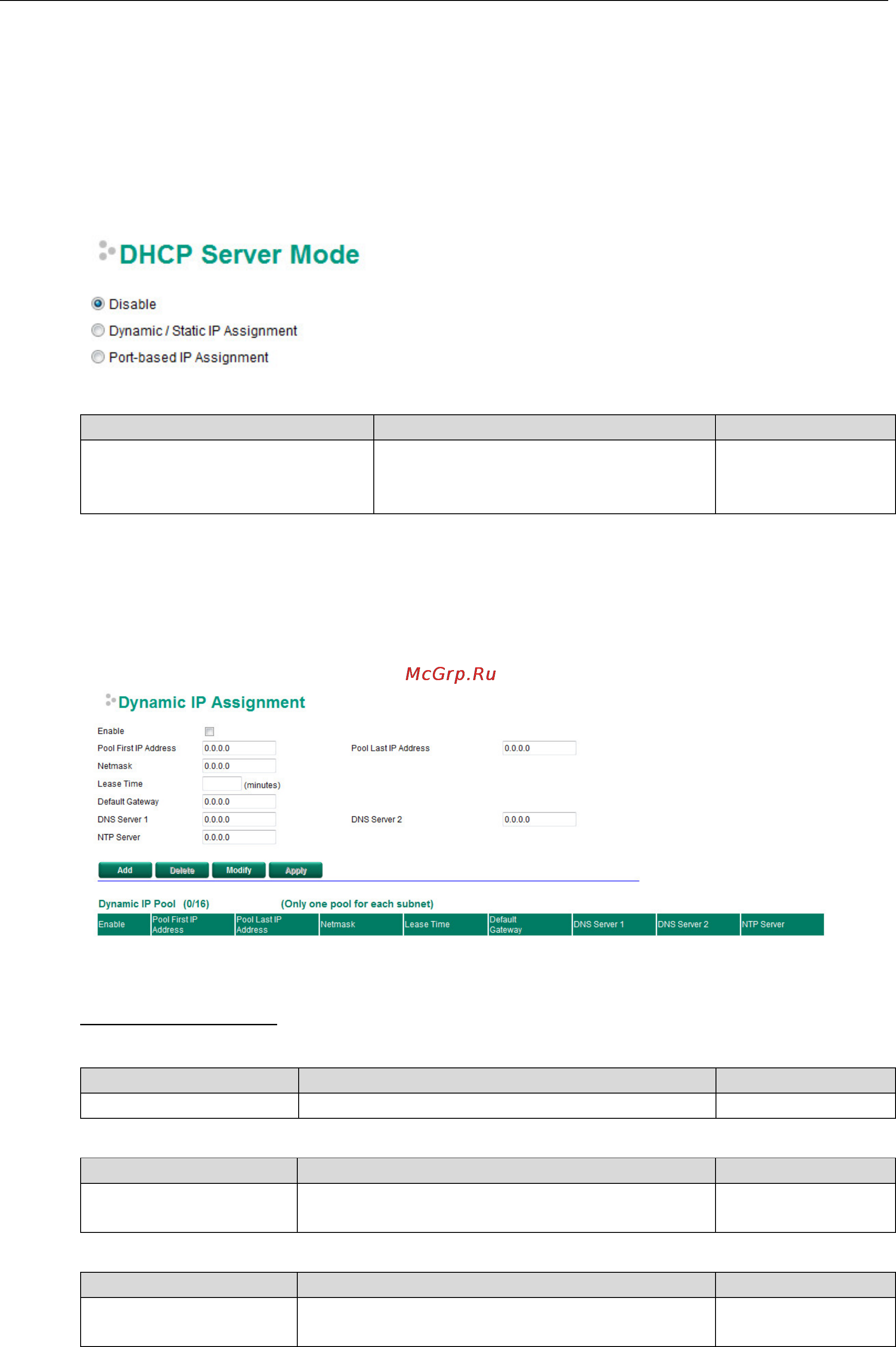

DHCP Server Mode
Setting Description Factory Default
Disable/
Dynamic/Static IP Assignment/
Port-based IP Assignment
Select the DHCP Server Mode Disabled
DHCP Server
The Industrial Secure Router provides a DHCP (Dynamic Host Configuration Protocol) server function for LAN
interfaces. When configured, the Industrial Secure Router will automatically assign an IP address to a Ethernet
device from a defined IP range.
Dynamic IP Assignment
DHCP Server Enable/Disable
Setting Description Factory Default
Enable/Disable Enable or disable DHCP server function Disable
Pool First IP Address
Setting Description Factory Default
IP Address The first IP address of the offered IP address range for
DHCP clients
0.0.0.0
Pool Last IP Address
Setting Description Factory Default
IP Address The last IP address of the offered IP address range for
DHCP clients
0.0.0.0
