Carte mère MS-7566
Fr-6

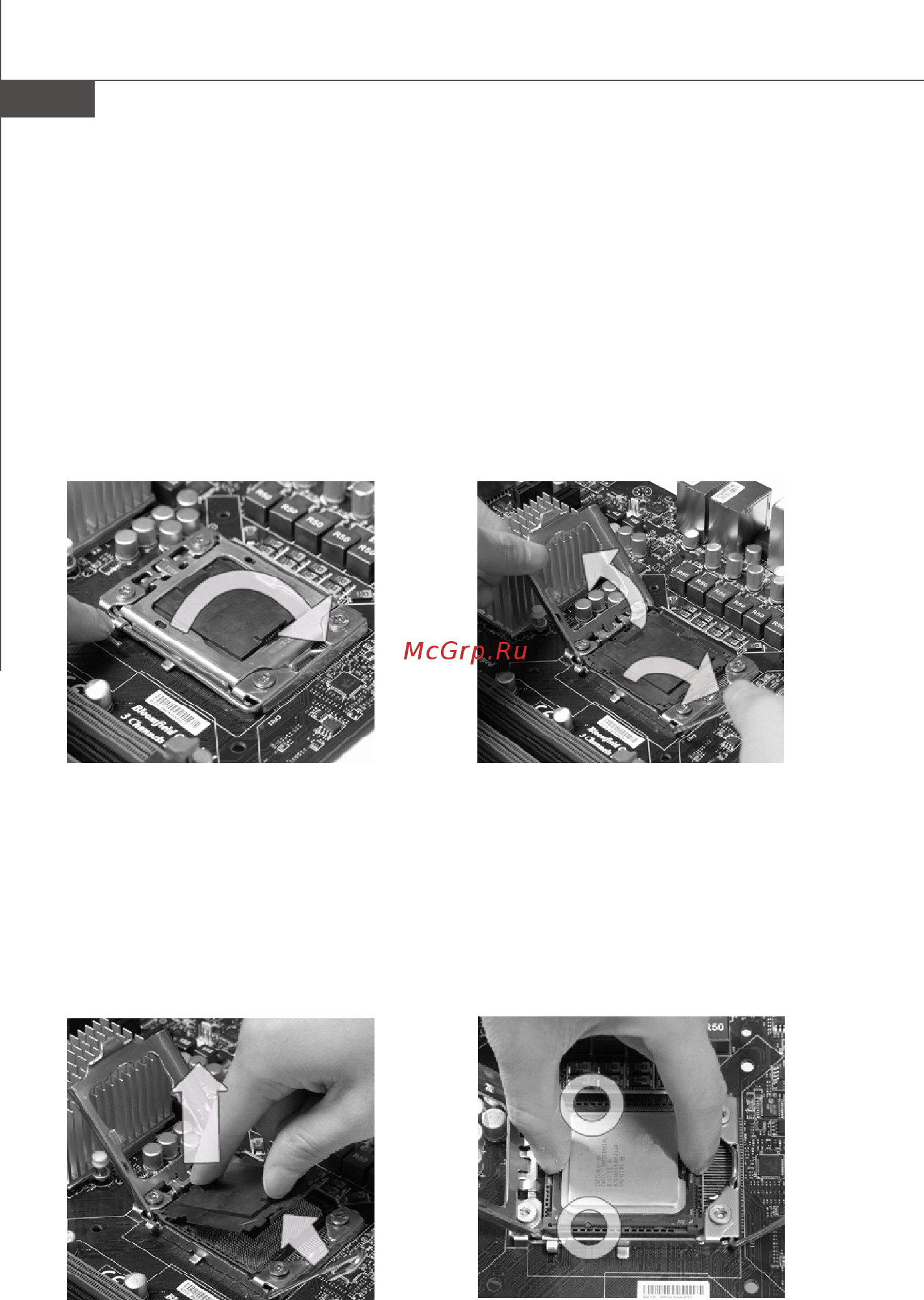

2.Levez le levier et ouvrir le plateau de
chargement.
1. Ouvrez le levier de charge.
Installation du CPU et son ventilateur
Quand vous installez le CPU, veuillez vous assurer que l’unité centrale soit
équipée d’un ventilateur de refroidissement attaché sur le dessus pour
éviter la surchauffe. Méanmoins, n’oubliez pas d’appliquer une couche d’enduit
thermique sur le CPU avant d’installer le ventilateur pour une meilleure dissipation de
chaleur.
Suivez les instructions suivantes pour installer le CPU et son ventilateur correcement.
Une faute installation peut endommager votre CPU et votre carte mère.
4.Après avoir confirmé la direction du
CPU pour joindre correctement,
déposez le CPU dans l’armature du
logement de douille. Faites attention
au bord de sa base. Notez qu’on
aligne les coins assortis.
3. La douille du CPU possède une
couverture plastique qui protège la
contact. Avant d’installer le CPU,
toujours gardez-la pour protéger les
pins de la douille. Retirez cette
couverture de la face d’articulation
du levier (comme montre la flèche).
Clé d’ alignement
