MS-7566 Mainboard
De-40
Intel Turbo Boost tech
Das Untermenü erscheint, wenn Sie eine CPU anbringen, die die Intel Turbo Boost
Technologie aufnehmt. Und hier können Sie die Intel Turbo Boost Technologie aktiviert/
deaktiviert. Für weitere Informationen beziehen Sie in offizielle Website des Intel.

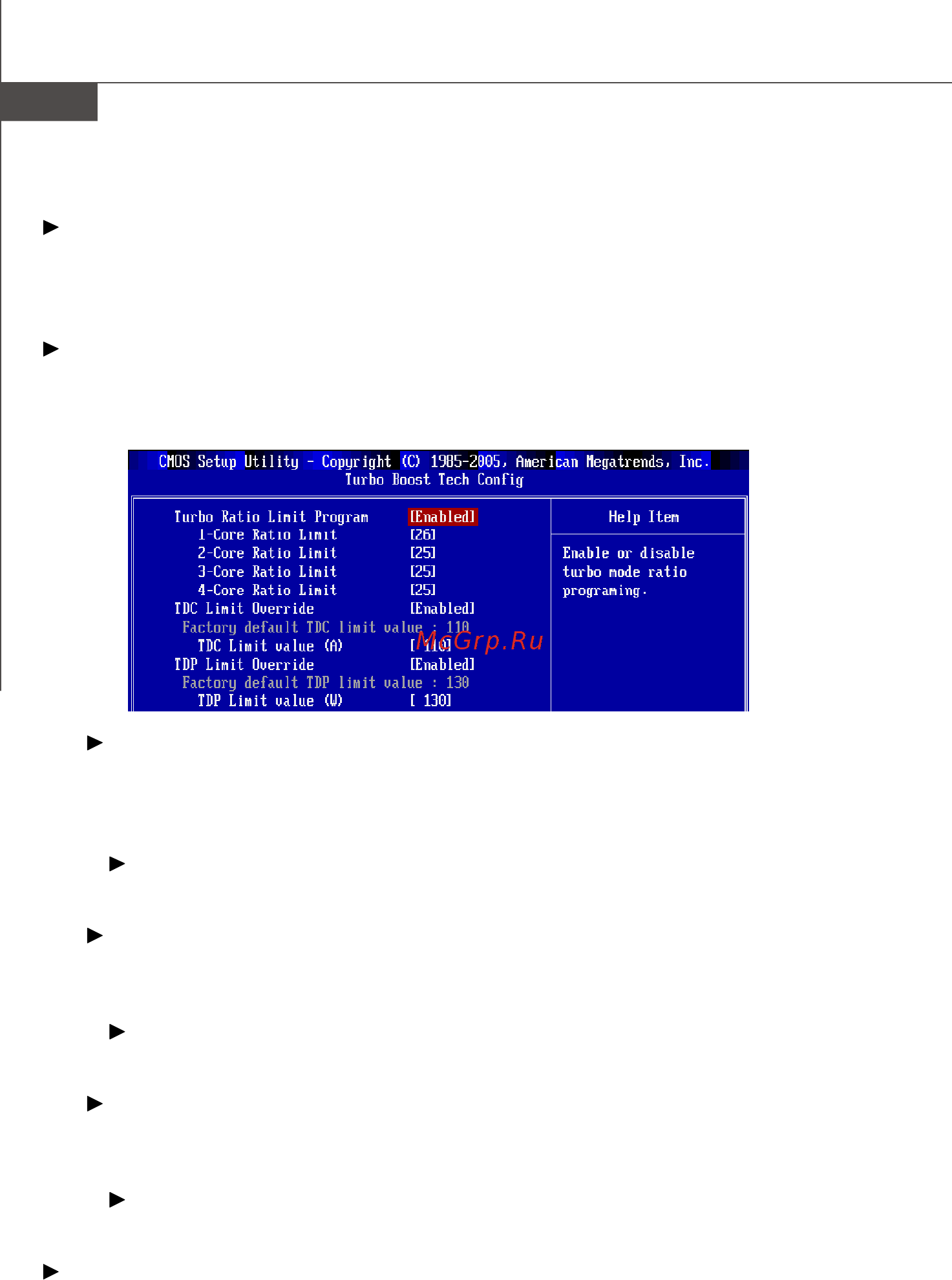

Turbo Boost Tech Config
Das Untermenü erscheint, wenn Sie eine CPU anbringen, die die Intel Turbo Boost
Technologie aufnehmtDrücken Sie die Eingabetaste <Enter>, um das folgende
Untermenü aufzurufen.
Turbo Ratio Limit Program
Hier können Sie dasTurbo Ratio Limit Program aktivieren/ deaktivieren. Lautet die
Einstellung auf [Enabled] (eingeschaltet), aktiviert die folgenden Option, um jede
CPU Core Ratio einzustellen.
#-Core Ratio Limit
Hier können Sie das CPU Core Ratio auswählen.
TDC Limit Override
Die Einstellungen [Enable] (eingeschaltet), aktiviert den TDC Limit Wert und
verwenden diesen TDC Limit Wert , um den CPU TDC Value einzustellen.
TDC Limit value (A)
Hier können Sie den CPU TDC Wert (ampere) auswählen.
TDP Limit Override
Die Einstellungen [Enable] (eingeschaltet), aktiviert den TDP Limit Wert und
verwenden diesen TDP Limit Wert , um den CPU TDP Value einzustellen.
TDP Limit value (W)
Hier können Sie den CPU TDP Wert (watt) auswählen.
OC Dial Function
Hier können Sie die OC Dial-Funktion aktivieren/ deaktivieren . Lautet die Einstellung
