MS-7566 Системная плата
Ru-22
Кнопка OC Dial и регулятор OC Dial
Эта кнопка и регулятор используются для установки FSB.
Эти компоненты позволяют изменять частоту base clock в любое время при
загруженной операционной системе. Установка дополнительного ПО или
перезагрузка системы не требуется. Следуйте указания ниже для изменения
тактовой частоты base clock.
1. Вначале нажмите кнопку OC Dial, чтобы разрешить изменение частоты. При
этом загорится индикатор OC Dial, подтверждающий включение функции.
2. Поворачивайте регулятор OC Dial по часовой стрелке/против часовой
стрелки для увеличения/уменьшения base clock. Шаг изменения частоты
можно установить в BIOS.
3. Нажмите кнопку OC Dial ещё раз, чтобы закончить регулировку. Индикатор
OC Dial выключится автоматически.

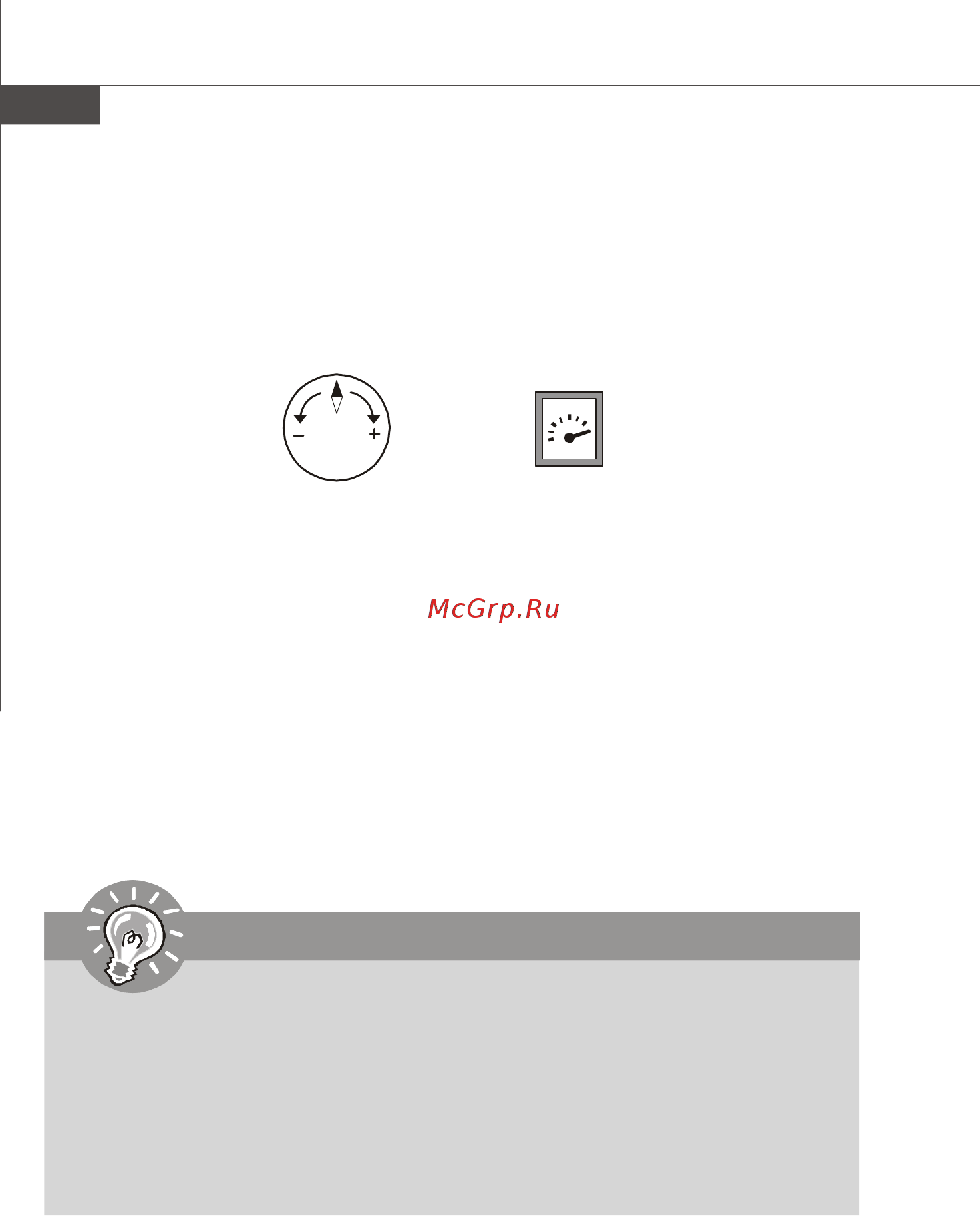

Регулятор OC Dial
Кнопка OC Dial
Внимание
1. Перед использованием функции OC Dial, рекомендуется правильно
установить соответствующие напряжения в BIOS для улучшения
возможности разгона.
2. После установки настроек, функция обязательно должна быть
выключена. В пративном случае это может негативно повлиять на
производительность системы. Поэтому по окончании регулироваки,
проверьте состояние индикатора OC Dial, если он не выключен, то
нажмите кнопку ещё раз и проверьте состояние снова.
