Ru-31
Русский
Световые индикаторы
Индикаторы фаз CPU
Э ти индикаторы показывают количество включённых фаз питания CPU.
Подробнее см. ниже.
6 индикаторов горят голубым при работе 6 фаз питания CPU.
Индикаторы фаз QPI
Э ти индикаторы показывают количество включённых фаз питания QPI.
Подробнее см. ниже.
2 индикатора горит голубым при работе 2 фаз питания QPI.
5 индикаторов горят голубым при работе 5 фаз питания CPU.
4 индикатора горят голубым при работе 4 фаз питания CPU.
3 индикатора горят голубым при работе 3 фаз питания CPU.
2 индикатора горят голубым при работе 2 фаз питания CPU.
1 индикатор горит голубым при работе 1 фазы питания CPU.
1 индикатор горит голубым при работе 1 фазы питания QPI.

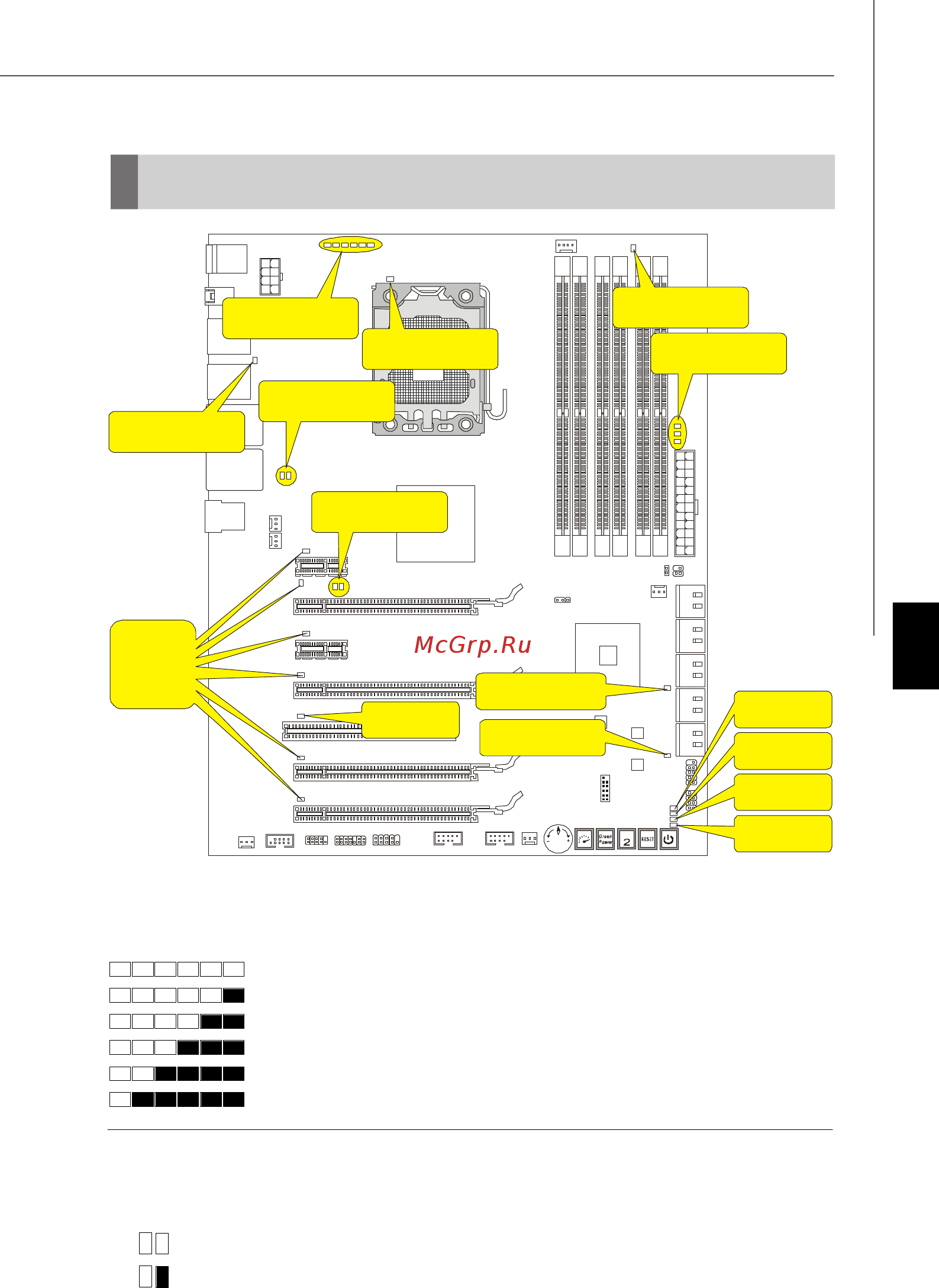

CPU Phase LEDs
QPI Phase LEDs
IOH Phase LEDs
PCIE LEDs
PCI LED
ICH10R SATA LED
JMB322 RAID LED
OC Dial LED
HDD LED
Suspend LED
Power LED
DDR Phase LEDs
DIMM Warning LED
CPU Load Line LED
eSATA LED
DLED
