Ru-11
Русский
Внимание
- Модули DDR3 не взаимозаменяемы с модулями DDR2 и стандарт DDR3
не имеет обратной совместимости. Следует устанавливать модули
памяти DDR3 в разъемы DDR3.
- Для работы в трёхканальном/ двухканальном режиме убедитесь, что
в разъемах разных каналов у вас установлены модули одного типа и
одинаковой ёмкости.
- Чтобы система загрузилась, вначале установите модули в разъем
DIMM_A0.
- Из-за специфики распределения системных ресурсов чипсета, объём
доступной памяти может максимально составить 23+ГБ (но не 24ГБ)
при установке модулей памяти 4ГБ в каждый из слотов.

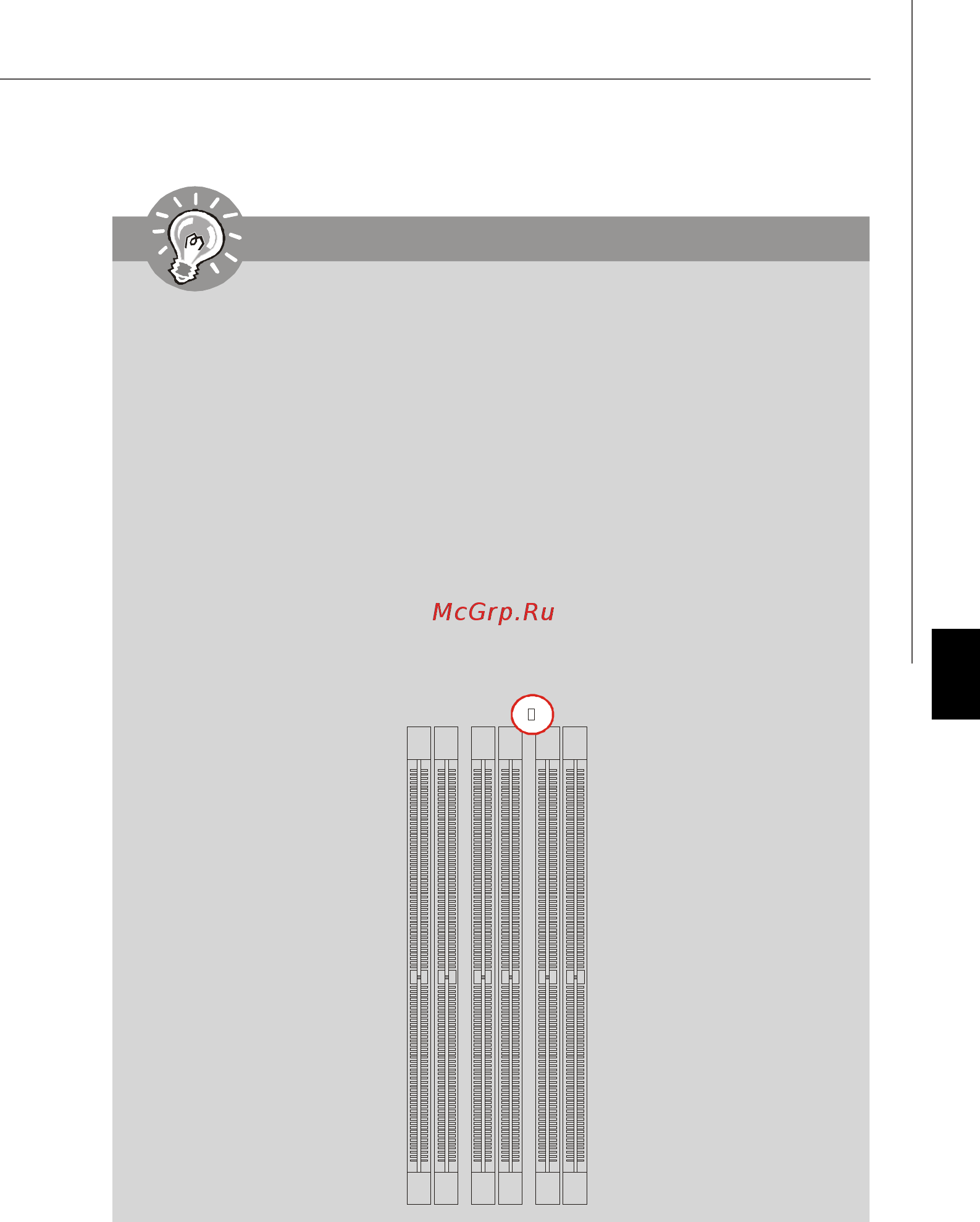

- Если вы установили несовместимые модули памяти (SA2-контакт
модуля памяти заземлен) в DIMM_C0/C1, то предупреждающий
индикатор возле DIMM_C0 горит красным. Расположение индикатора
показано ниже . Обратитесь за информацией от производителя ваших
модулей памяти на предмет поддержки работы в третьем канале.
