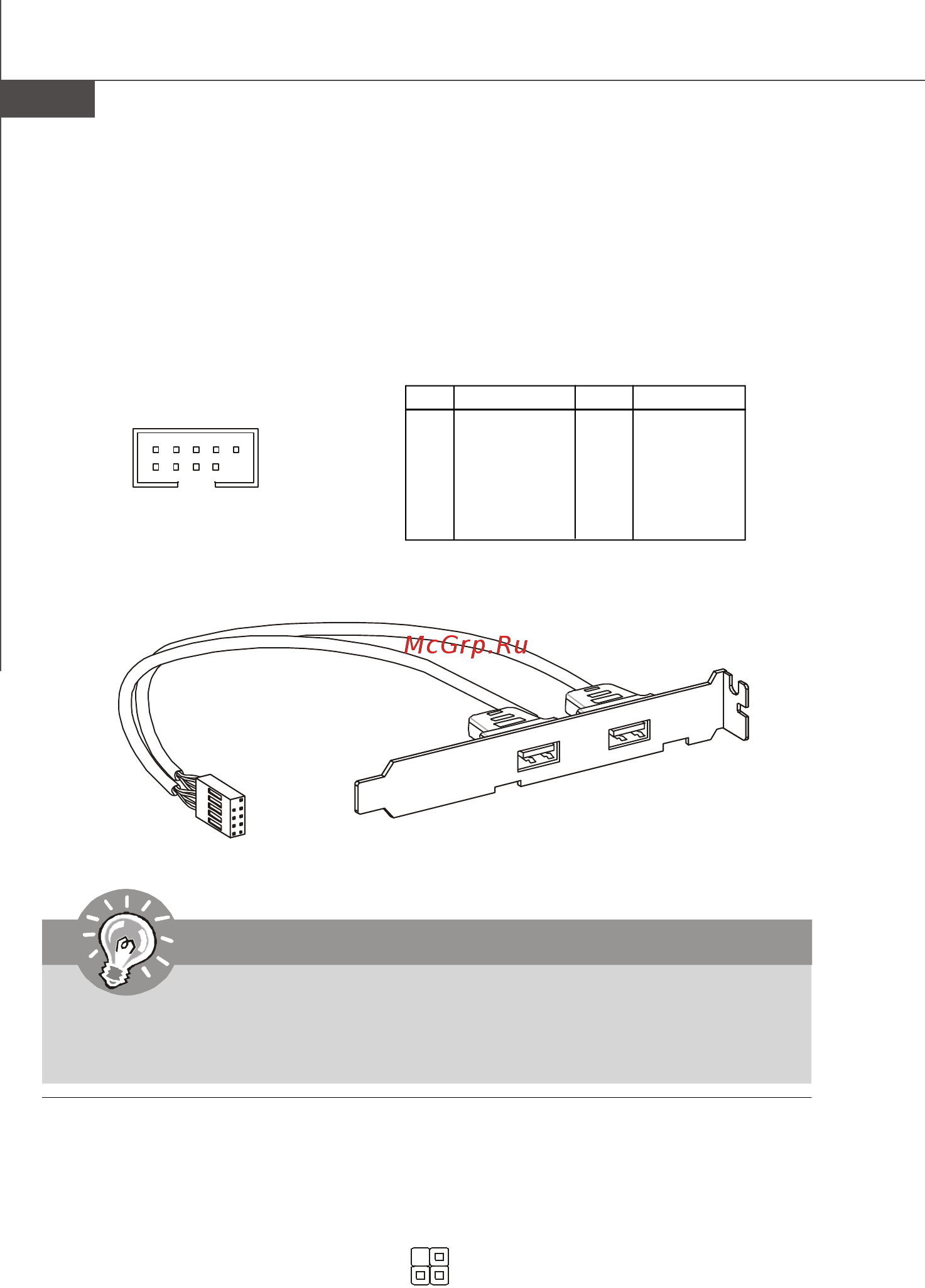

MS-7566 Mainboard
De-20
USB Vorderanschluss: JUSB1/ JUSB2
Dieser Anschluss entspricht den Richtlinien des Intel
®
I/O Connectivity Design Guide.
Er ist bestens geeignet, Hochgeschwindigkeits- USB- Peripheriegeräte anzuschließen,
wie z.B. USB Festplattenlaufwerke, Digitalkameras, MP3-Player, Drucker,
Modems und ähnliches.
PIN SIGNAL PIN SIGNAL
1 VCC 2 VCC
3 USBD- 4 USBD-
5 USBD+ 6 USBD+
7 GND 8 GND
9 Key (no pin) 10 NC
Polzuweisung
USB 2.0 Slotblech
(optional)
1
2
9
10
JUSB1/ JUSB2
GreenPower Genie Anschluss: JSMB1
Der Anschluss ist zur Verwendung mit dem GreenPower Genie (optional). Weitere
Informationen über GreenPower Genie entnehmen Sie bitte dem GreenPower Genie
Handbuch.
JSMB1
1
2
Wichtig
Bitte beachten Sie, dass Sie die mit VCC (Stromführende Leitung) und GND
(Erdleitung) bezeichneten Pins korrekt verbinden müssen, ansonsten kann es zu
Schäden kommen.
