En-27
English
1.Installing three graphics cards which support 3-Way SLI technology on black PCI
Express x16 slots. After three cards installed, SLI Bridge cables are required to
connect the golden fingers on the top of these three graphics cards (fig.1). Please
note that although you have installed three graphics cards, only the video outputs
on the first card (which be installed in PCI_E2 slot) will work. Hence, you only need
to connect a monitor to the first PCI Express card.

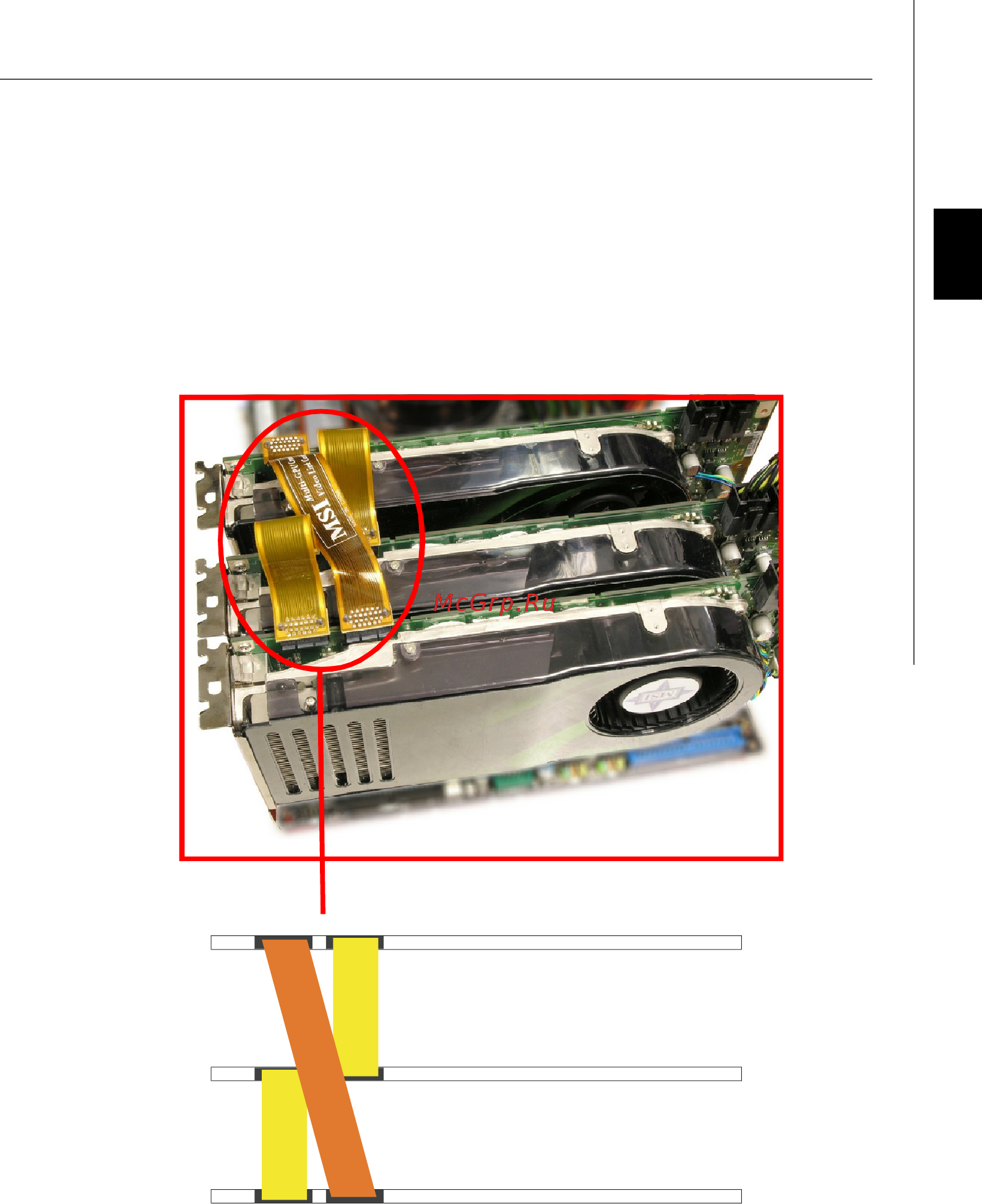

Fig.1 3-Way SLI Bridge cables connection
