MS-7566 Mainboard
En-20

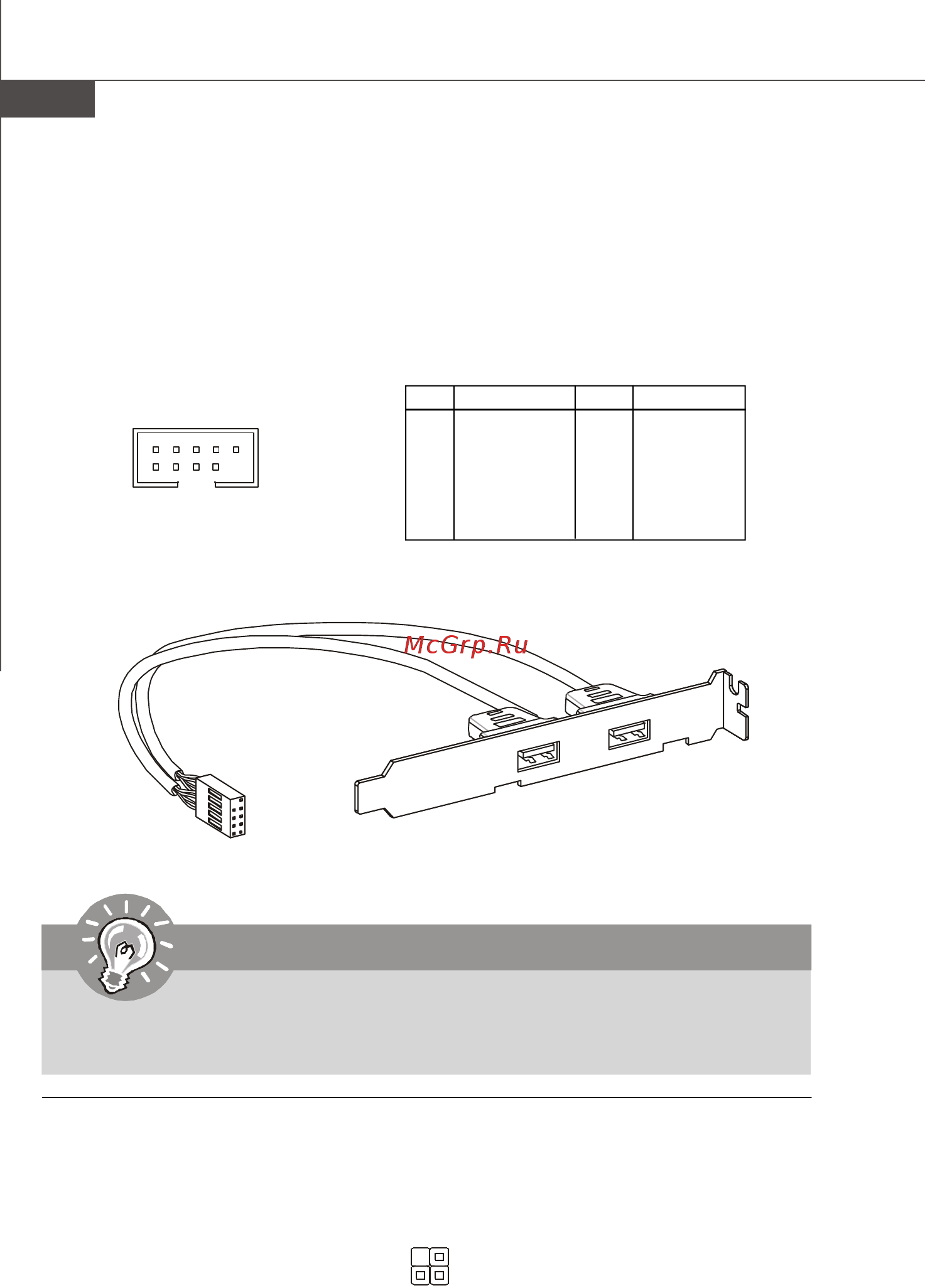

Front USB Connector: JUSB1/ JUSB2
These connectors, compliant with Intel
®
I/O Connectivity Design Guide, is ideal for
connecting high-speed USB interface peripherals such as USB HDD, digital cameras,
MP3 players, printers, modems and the like.
PIN SIGNAL PIN SIGNAL
1 VCC 2 VCC
3 USBD- 4 USBD-
5 USBD+ 6 USBD+
7 GND 8 GND
9 Key (no pin) 10 NC
Pin Definition
Important
Note that the pins of VCC and GND must be connected correctly to avoid
possible damage.
USB 2.0 Bracket
(optional)
1
2
9
10
JUSB1/ JUSB2
GreenPower Genie Connector: JSMB1
This connector connects to GreenPower Genie (optional). Please refer to the
GreenPower Genie manual for more details and usages.
JSMB1
1
2
