The motherboard provides the following buttons for you to set the computer’s function.

This section will explain how to change your motherboard’s function through the use

of button.

Buttons and Knob

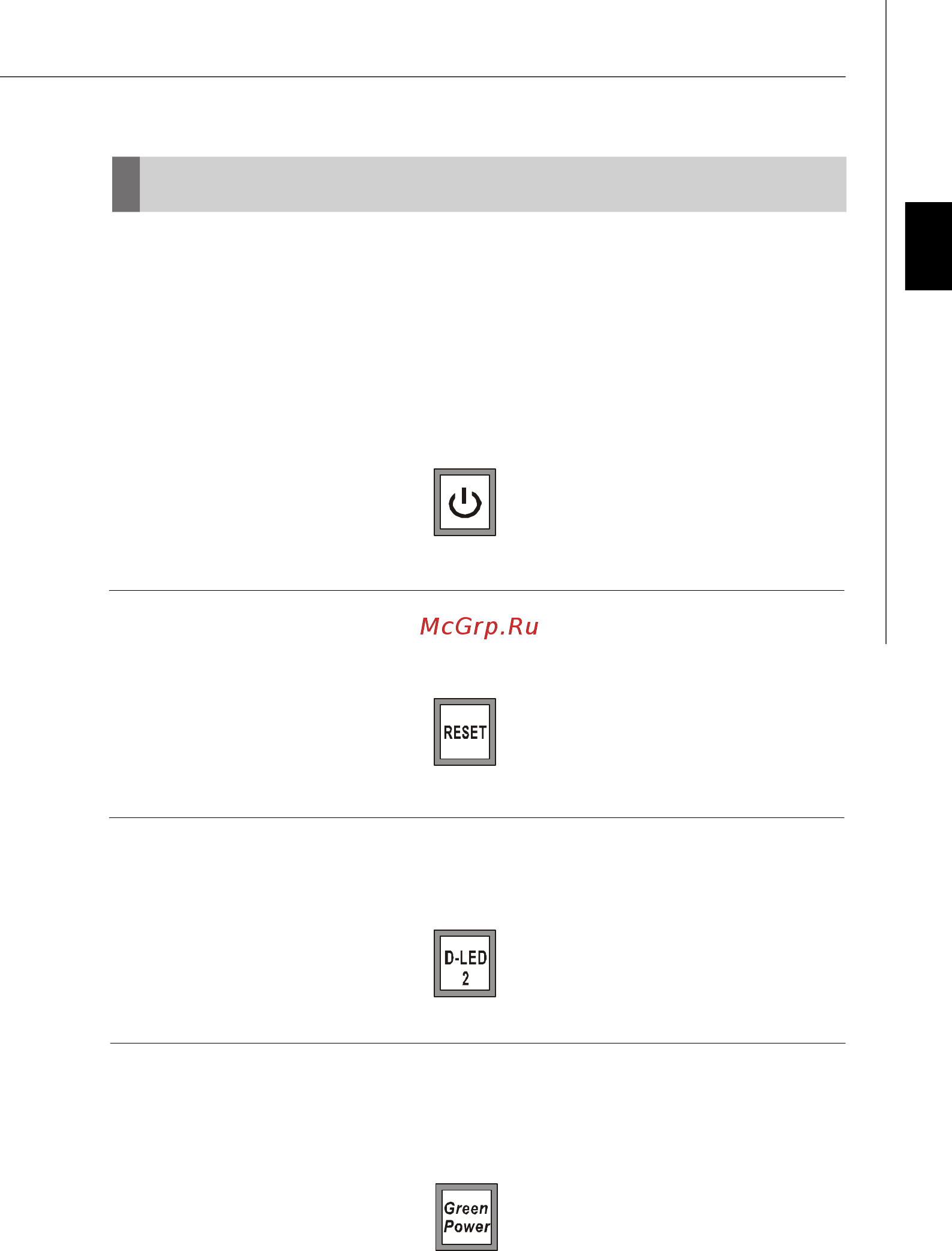

Power Button: POWER1

This power button is used to turn-on or turn-off the system. Press the button to turn-

on or turn-off the system. This button will light after you power-on the system, and

the light will turn-off when you power-off the system.

Reset Button: RESET1

This reset button is used to reset the system. Press the button to reset the system.

This button will light when the system is in S0 status.

RESET1

POWER1

D-LED2 Button: DLED2

This button is used to change the menu on D-LED2 panel. Press the button to change

the menu on D-LED2 panel. Please refer to the D-LED2 quick guide for more details

and usages.

DLED2

GreenPower Button

This button is used to switch GreenPower function of system. Once you press the

button, the system will switch the GreenPower between disable and auto mode.
