MS-7566 Mainboard
En-4
DLED

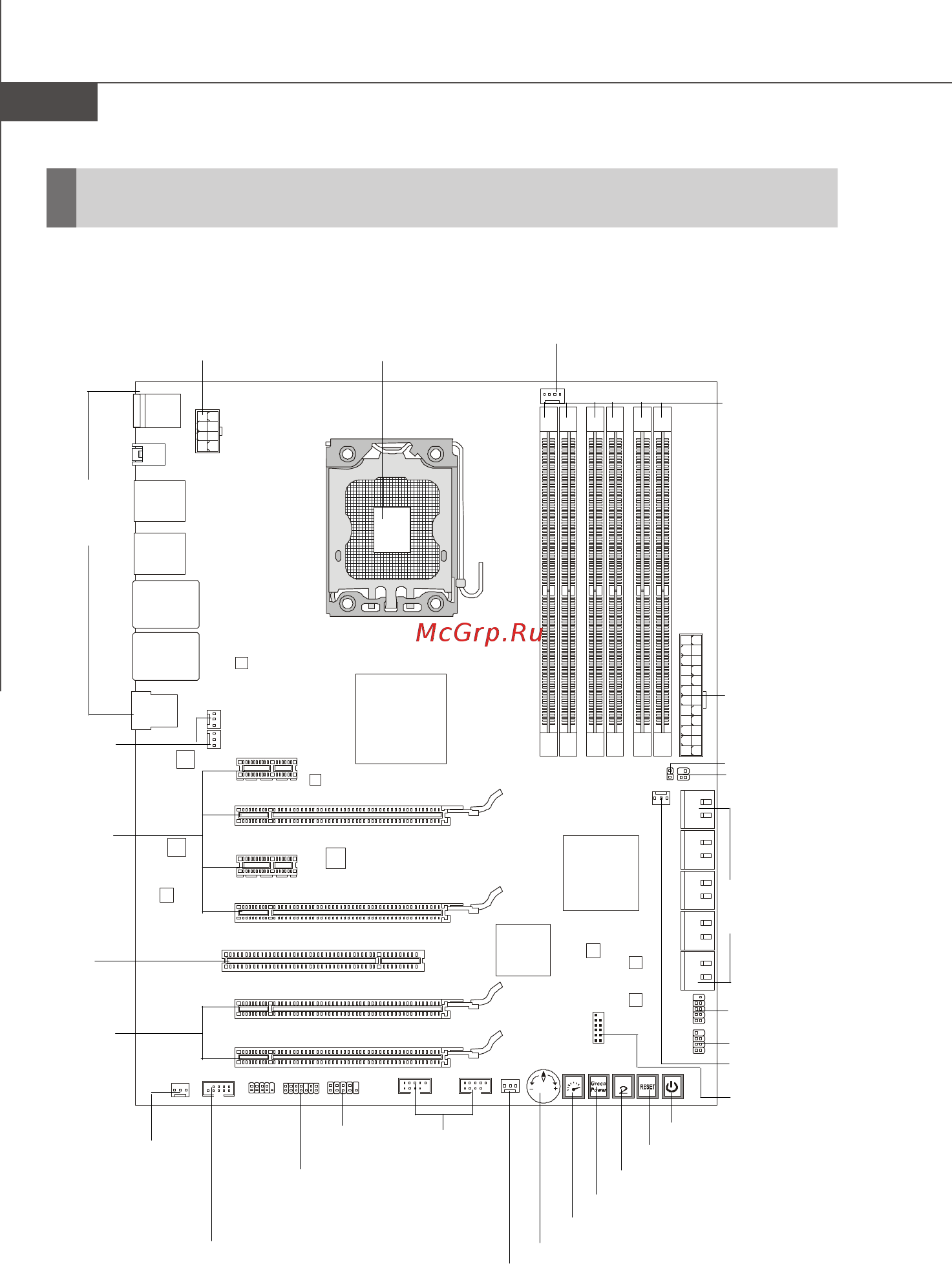

Quick Components Guide
CPU, En-5
DDR3, En-9
Back Panel,
En-14
JPWR2, En-13
CPUFAN1, En-17
JPWR1, En-13
JCI1, En-19
JSMB1, En-20
SATA1~10,
En-16
JFP1, En-18
JFP2, En-18
SYSFAN2, En-17
JDLED2, En-19
POWER1, En-21
RESET1, En-21
D-LED2, En-21
GreenPower button, En-21
OC Dial button, En-22
OC Dial knob, En-22
SYSFAN5, En-17
JUSB1/2,
En-20
JCOM1,
En-18
JTPM1, En-19
J1394_1, En-17
SYSFAN3,
En-17
PCIE slots,
En-23
PCI slot,
En-30
PCIE slots,
En-23
SYSFAN1/4,
En-17
