En-31
English

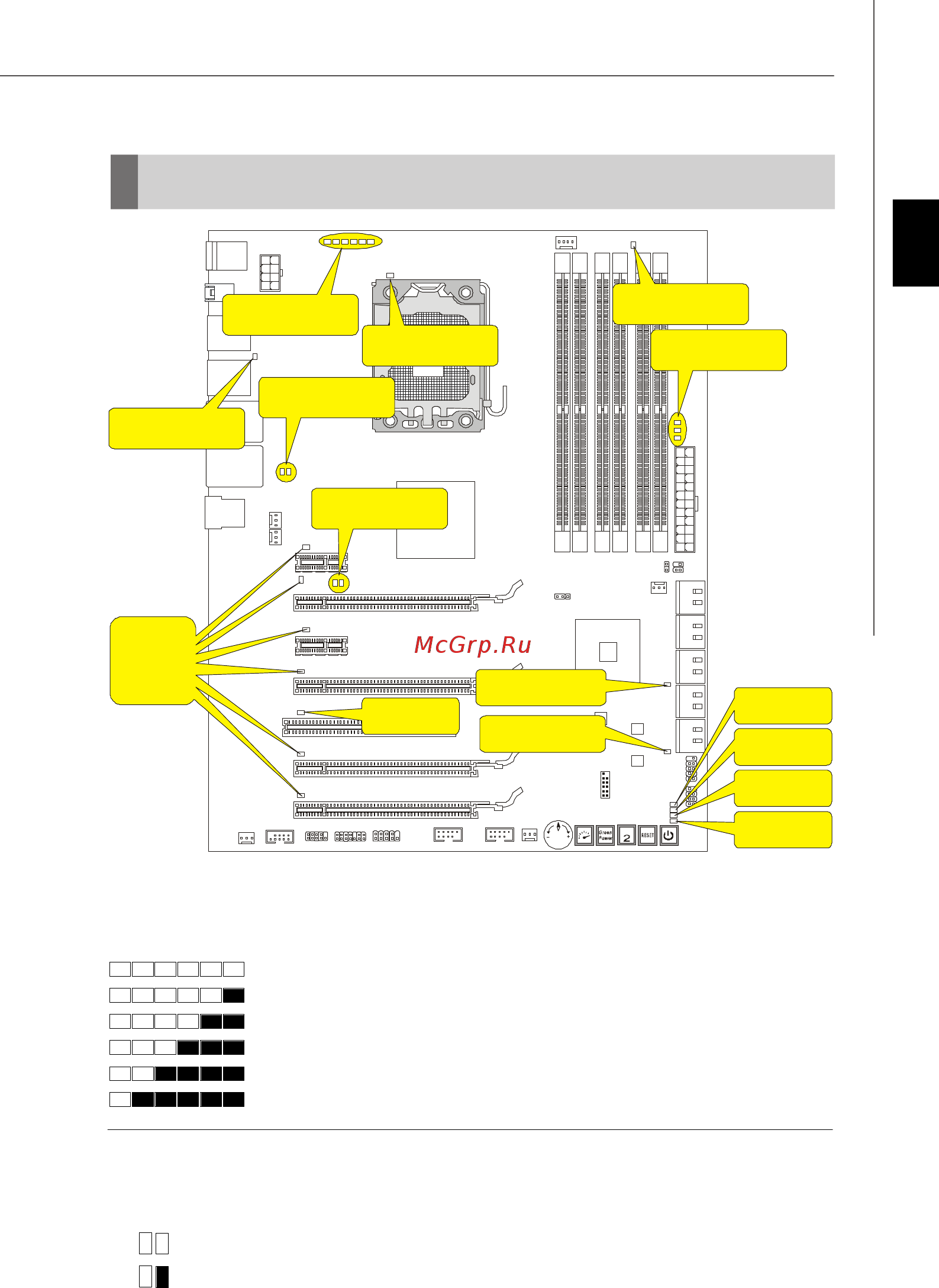

LED Status Indicators
CPU Phase LEDs
These LEDs indicate the current CPU power phase mode. Follow the instructions
below to read.
6 of the LEDs will light blue when CPU is in 6 phase power mode.
QPI Phase LEDs
These LEDs indicate the current QPI power phase mode. Follow the instructions
below to read.
2 of the LEDs will light blue when QPI is in 2 phase power mode.
5 of the LEDs will light blue when CPU is in 5 phase power mode.
4 of the LEDs will light blue when CPU is in 4 phase power mode.
3 of the LEDs will light blue when CPU is in 3 phase power mode.
2 of the LEDs will light blue when CPU is in 2 phase power mode.
1 of the LEDs will light blue when CPU is in 1 phase power mode.
1 of the LEDs will light blue when QPI is in 1 phase power mode.
CPU Phase LEDs
QPI Phase LEDs
IOH Phase LEDs
PCIE LEDs
PCI LED
ICH10R SATA LED
JMB322 RAID LED
OC Dial LED
HDD LED
Suspend LED
Power LED
DDR Phase LEDs
DIMM Warning LED
CPU Load Line LED
eSATA LED
DLED
