Ru-13
Русский
Разъем питания
PIN SIGNAL
13 +3.3V
14 -12V
15 GND
16 PS-ON#
17 GND
18 GND
19 GND
20 Res
21 +5V
22 +5V
23 +5V
24 GND
PIN SIGNAL
1 +3.3V
2 +3.3V
3 GND
4 +5V
5 GND
6 +5V
7 GND
8 PWR OK
9 5VSB
10 +12V
11 +12V
12 +3.3V
Pin Definition
pin 12
pin 13

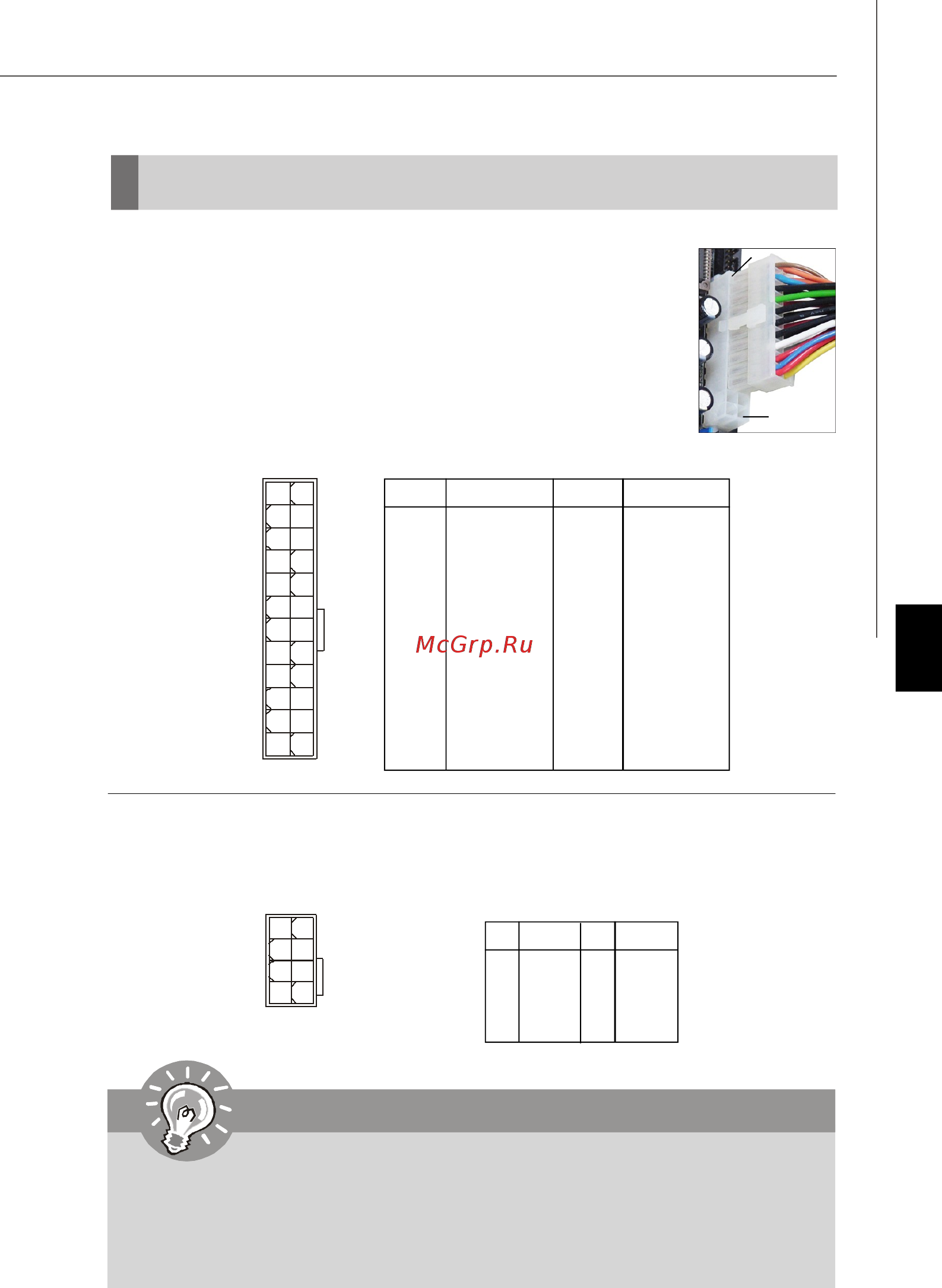

24-контактный разъем питания ATX: JPWR1
Этот разъем позволяет подключить 24-контактный коннектор
питания ATX. Перед подключением убедитесь, что разъем и
коннектор правильно сориентированы. Затем плотно
вставьте его в разъем на системной плате.
Вы также можете использовать 20-контактный блок питания
ATX. При использовании 20-контактного разъема, подключайте
его вдоль контактов 1 и 13 (см. изображение справа).
JPWR2
8-контактный разъем питания ATX: JPWR2
Этот разъем питания используется для обеспечения питания процессора.
1
8
5
4
PINSIGNAL
5 +12V
6 +12V
7 +12V
8 +12V
PINSIGNAL
1 GND
2 GND
3 GND
4 GND
Pin Definition
Внимание
1. Убедитесь в том, что все разъемы подключены к источнику питания
ATX для стабильной работы системной платы.
2. Для стабильности системы настоятельно рекомендуется источник
питания мощностью 450 Вт (и выше).
3. Линия питания ATX 12V должна быть больше 18A.
1
JPWR1
12
24
13
PDF created with pdfFactory trial version www.pdffactory.com
