En-17
English

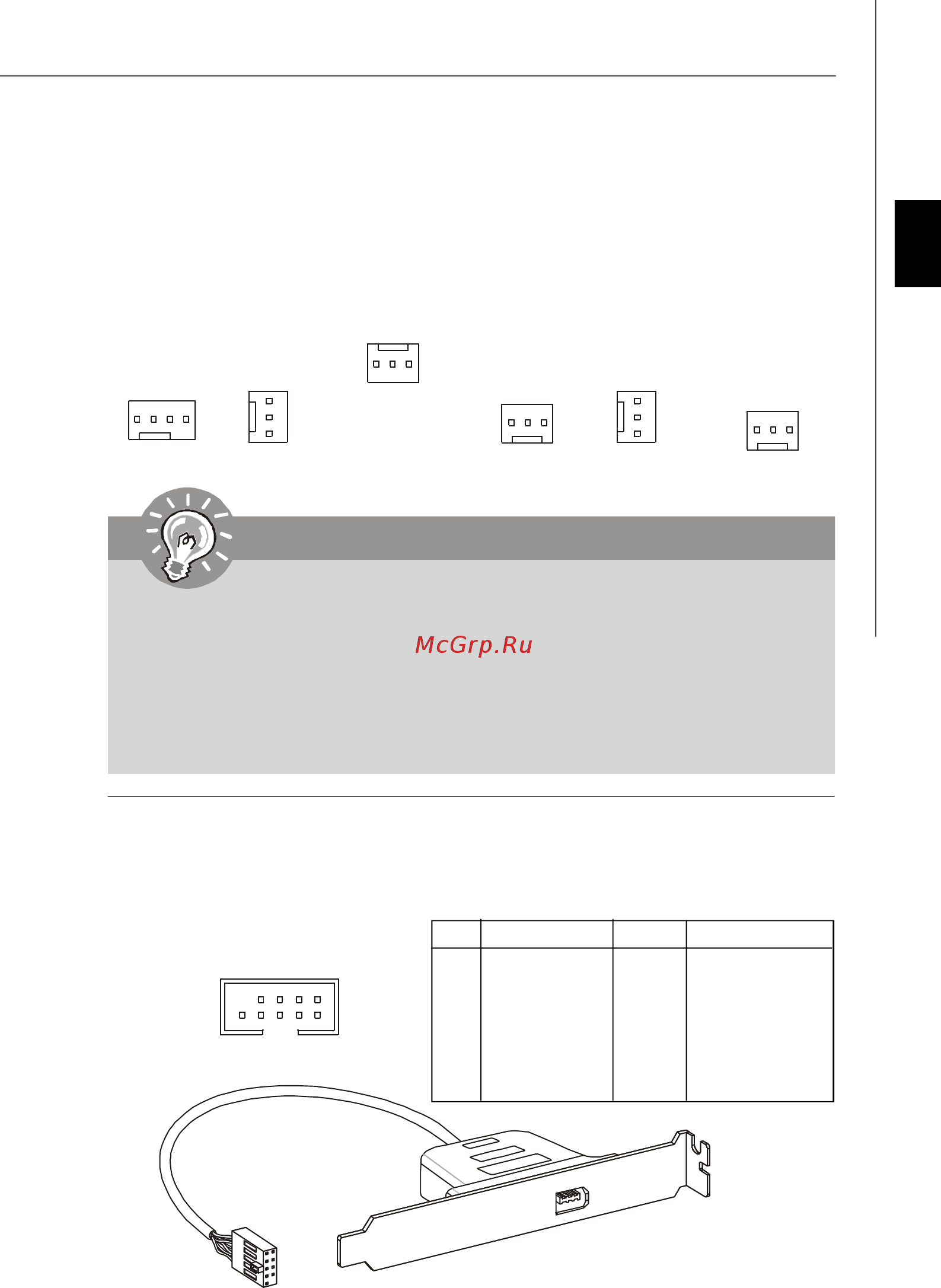

Fan Power Connectors: CPUFAN1, SYSFAN1~5
The fan power connectors support system cooling fan with +12V. When connecting
the wire to the connectors, always note that the red wire is the positive and should
be connected to the +12V; the black wire is Ground and should be connected to GND.
If the mainboard has a System Hardware Monitor chipset on-board, you must use a
specially designed fan with speed sensor to take advantage of the CPU fan control.
IEEE1394 Connector: J1394_1 (optional)
This connector allows you to connect the IEEE1394 device via an optional IEEE1394
bracket.
Pin Definition
PIN SIGNAL PIN SIGNAL
1 TPA+ 2 TPA-
3 Ground 4 Ground
5 TPB+ 6 TPB-
7 Cable power 8 Cable power
9 Key (no pin) 10 Ground
IEEE1394 Bracket (Optional)
Important
1.Please refer to the recommended CPU fans at processor’s official website
or consult the vendors for proper CPU cooling fan.
2.CPUFAN1 supports fan control. You can install Overclocking Center util-
ity that will automatically control the CPU fan speed according to the actual
CPU temperature.
3. SYSFAN1~3 support fan control, too. You may select how percentage of
speed for the SYSFAN1/2/3 in BIOS.
CPUFAN1
+12V
GND
SENSOR
SYSFAN1 SYSFAN2
SENSOR
+12V
GND
+12V
GND
NC
SYSFAN4 SYSFAN5
NC
+12V
GND
SYSFAN3
SENSOR
+12V
GND
J1394_1
1
9
2
10
SENSOR
+12V
GND
CONTROL
