MS-7566 Mainboard
De-16

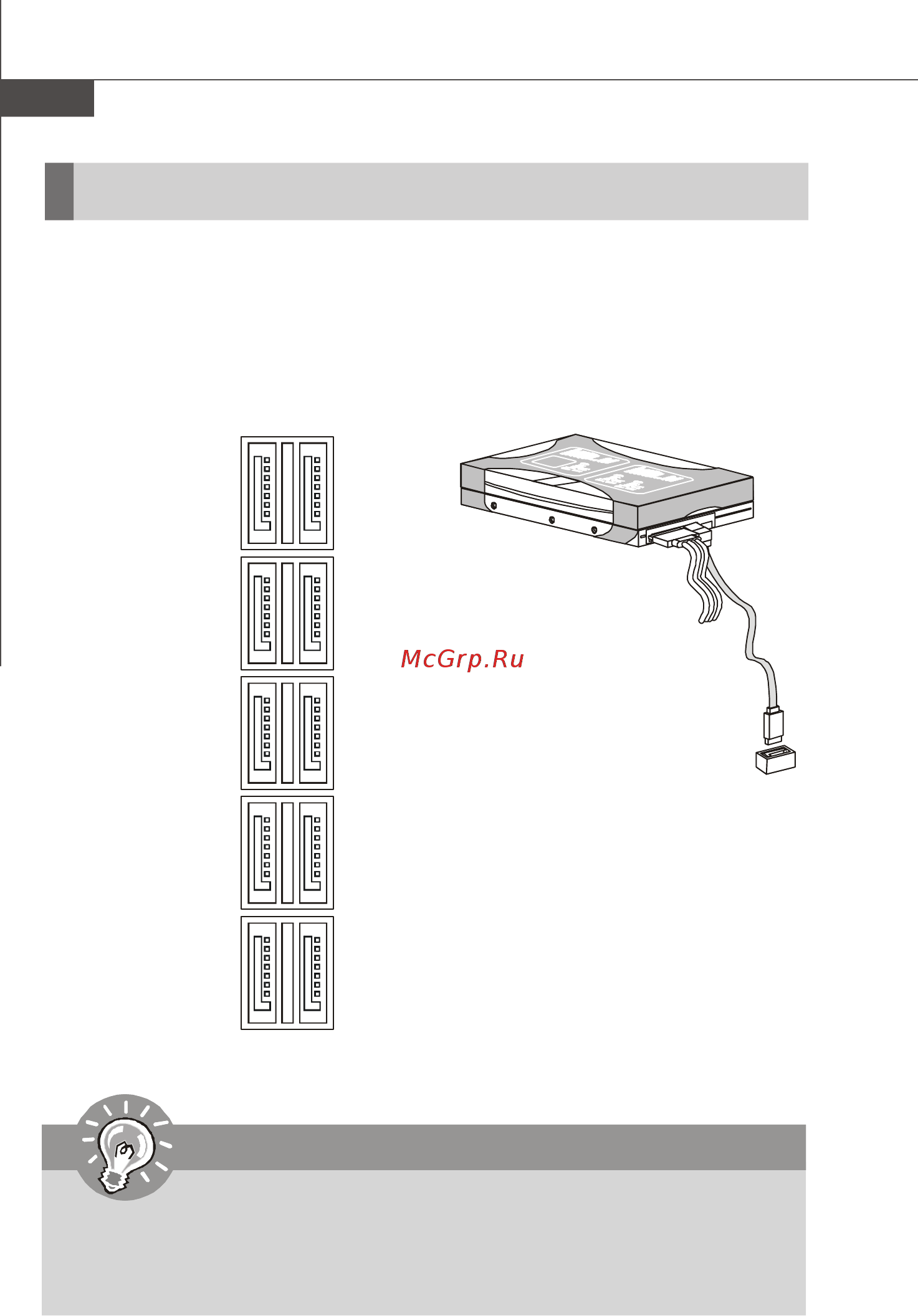

Serial ATA Anschluss: SATA1~10
Der Anschluss ist eine Hochgeschwindigkeitsschnittstelle der Serial ATA. Pro
Anschluss kann ein S-ATA Gerät angeschlossen werden.
SATA1~6
werden mit ICH10R
unterstützt.
SATA1_3
SATA2_4
SATA5_6
Anschlüsse
SATA7_8
SATA9_10
SATA7~8
werden mit erstem JMB322
unterstützt.
SATA9~10
werden mit zweitem JMB322
unterstützt
Wichtig
1. Bitte falten Sie das Serial ATA Kabel nicht in einem Winkel von 90 Grad,
da dies zu Datenverlusten während der Datenübertragung führt.
2. Bitte benutzen Sie immer die Stecker des Intel standard SATA SATA
Anschlüsse (SATA1~6) zuerst.
