MS-7566 Mainboard
De-22
OC Dial Taste und OC Dial Knopf
Diese Taste und dieser Knopf können das FSB stellen.
Hier können Sie den FSB Takt unter den Betriebssystemen jederzeit ändern. Sie
brauchen nicht Software oder Neuladen anzubringen. Bitte folgen Sie den unten
Schritten, um die Frenquenz des FSB zuzunahemen oder abzunahemn.
1.Drücken Sie die OC Dial-Taste, um der Abgleich zu starten. Der OC Dial LED
beleuchtet, um gegenwärtigen Betrieb anzuzeigen.
2.Drehen Sie den OC Dial-Knopf rechts/nach links zum niedrigen Taktgeber der
Zunahme/der Abnahme. Sie können den Wert des OC Dial-Schrittes im BIOS
einstellen.
3.Drücken Sie die OC Dial-Taste wieder; um der Abgleich abzusolvieren. Die OC Dial
LED stellt automatisch ab.

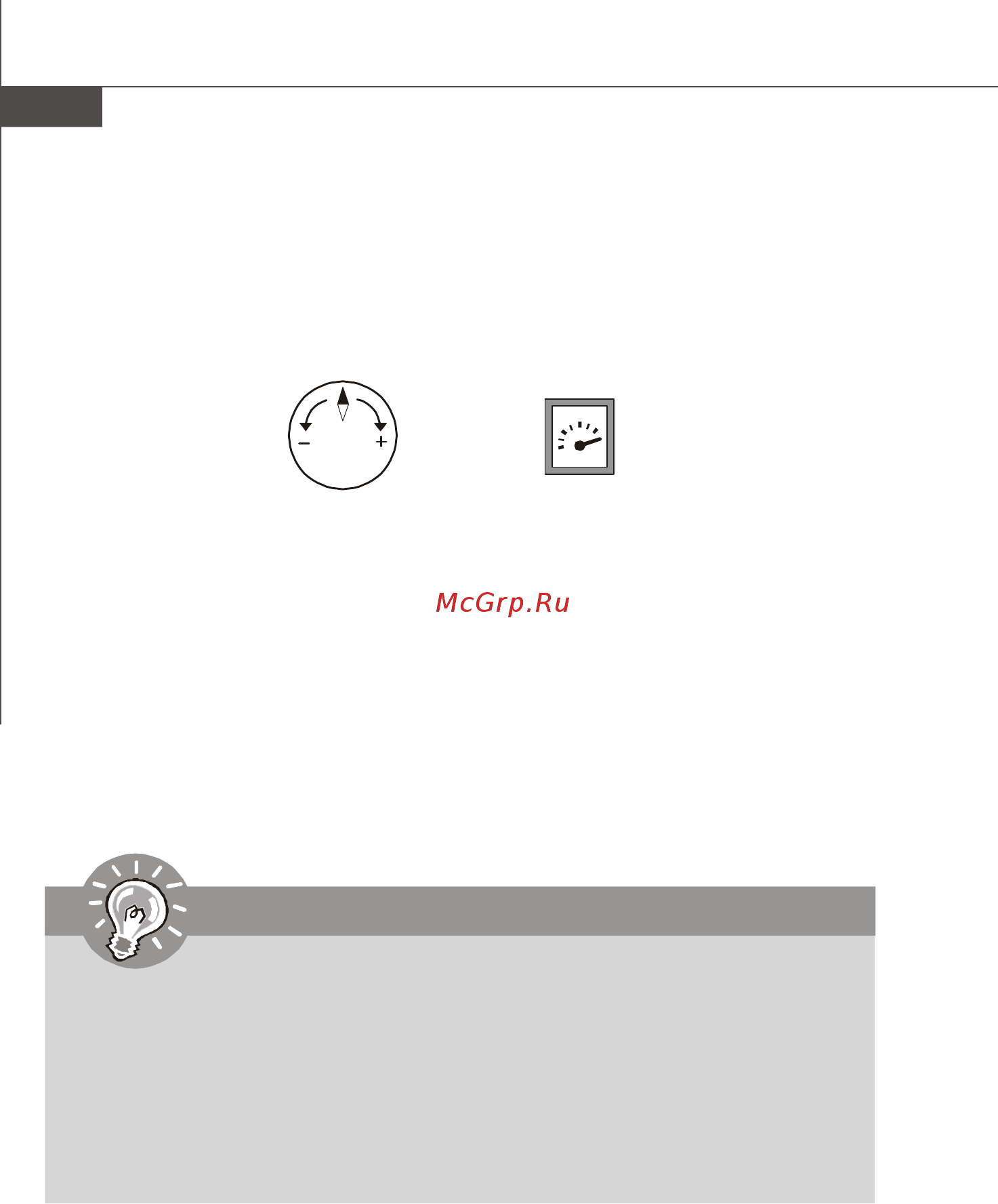

OC Dial Knopf OC Dial Taste
Wichtig
1.Vor Ihnen verwenden Sie OC Dial-Funktion zum Übertaktung das System.
Um die Erfolgrate zu erhöhen, sollten Sie die Spannung im BIOS richtig
einstellen.
2.Nach jeder der Abgleich, sollte diese Eigenschaft geschlossen werden.
Andernfalls würde es die System Leistung beeinflussen. Folglich wenn
Sie der Abgleich durchführen, überprüfen Sie, ob OC Dial LED
eingeschaltet oder aus ist. Wenn OC Dial LED noch beleuchtet wird,
drücken Sie die Taste und überprüfen Sie dann wieder.
