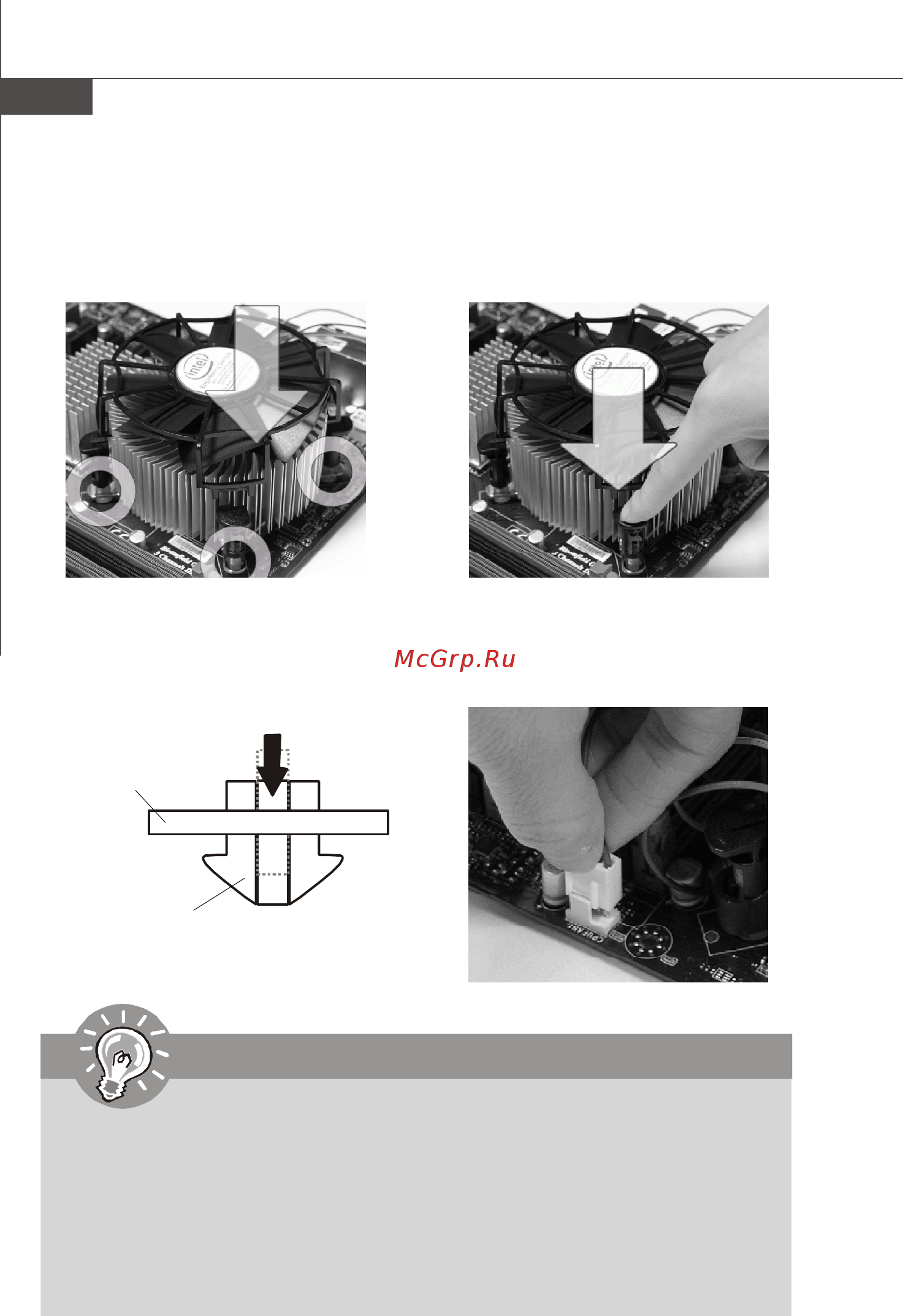

MS-7566 Mainboard
En-8
11. Turn over the mainboard to confirm
that the clip-ends are correctly
inserted.
Mainboard
Hook
Important
1. Read the CPU status in BIOS.
2. Whenever CPU is not installed, always protect your CPU socket pin with the
plastic cap covered (shown in Figure 1) to avoid damaging.
3. Mainboard photos shown in this section are for demonstration of the CPU/
cooler installation only. The appearance of your mainboard may vary depend-
ing on the model you purchase.
4. Please refer to the documentation in the CPU fan package for more details
about the CPU fan installation.
10.Press the four hooks down to fas-
ten the cooler.
9.Align the holes on the mainboard with
the heatsink. Push down the cooler
until its four clips get wedged into
the holes of the mainboard.
12. Finally, attach the CPU Fan cable to
the CPU fan connector on the
mainboard.
