Fr-23
Français

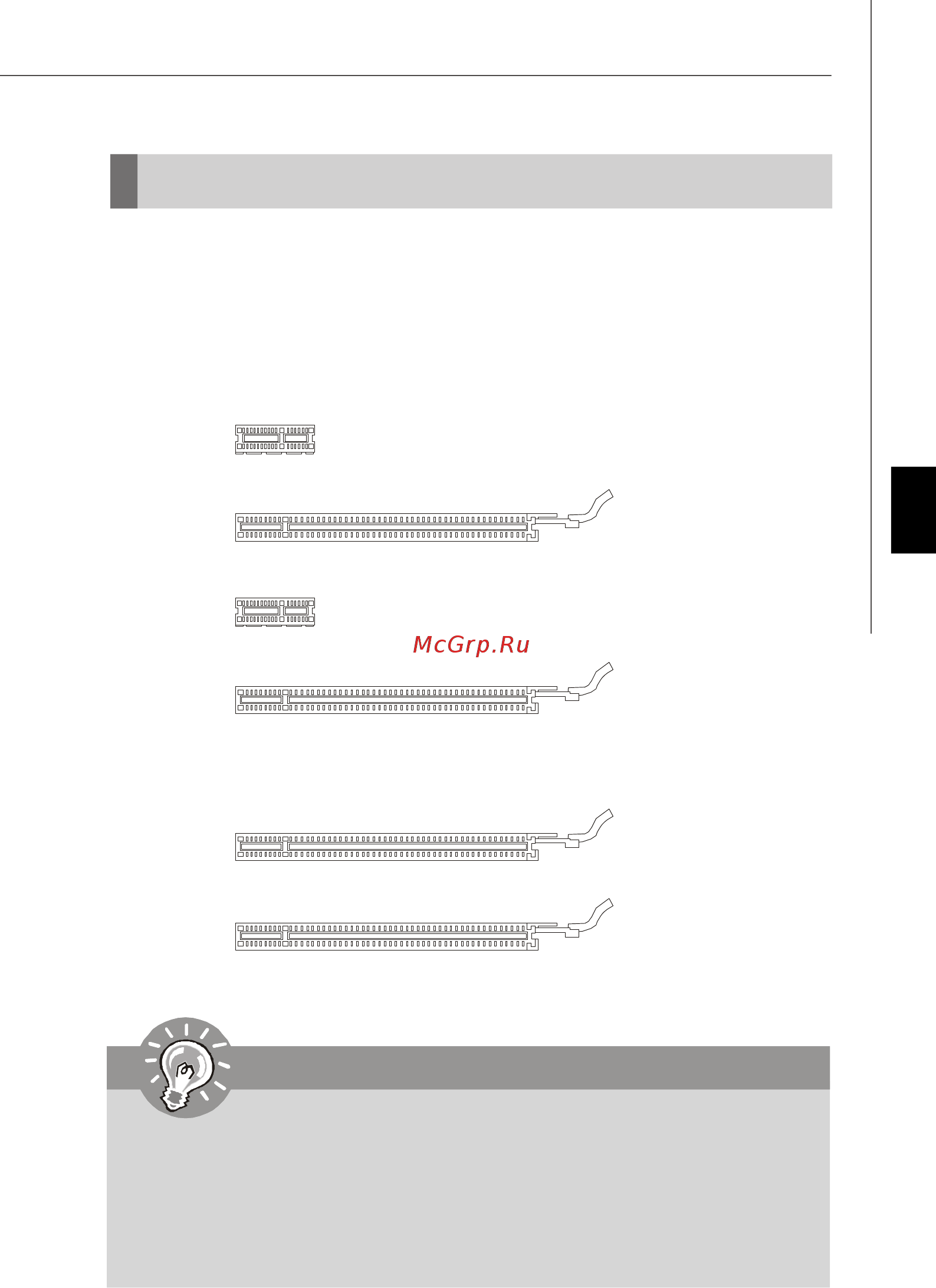

Slot PCI (Peripheral Component Interconnect) Express et
Le slot PCI Express supporte la carte d’extension d’interface PCI Express.
Le slot PCI Express 2.0 x16 supporte un taux de transfert jusqu’à 8.0 GB/s.
Le slot PCI Express 2.0 x4 supporte un taux de transfert jusqu’à 2.0 GB/s.
Le slot PCI Express 1.0 x1 supporte un taux de transfert jusqu’à 250 MB/s.
Slots
Important
1.La carte mère supporte la technologie ATI CrossFireX
TM
et la solution
NVIDIA SLI
TM
Multi Graphic.
2Lorsque vous ajoutez ou retirez une carte d’extension, assurez-vous que
le PC n’est pas relié au secteur. Lisez la documentation pour faire les
configurations nécessaires du matériel ou du logiciel de la carte d’extension,
tels que cavaliers, commutateurs ou la configuration du BIOS.
PCI_E2 supporte jusqu’à la vitesse de PCI Express 2.0 x16
PCI_E4 supporte jusqu’à la vitesse de PCI Express 2.0 x16
PCI_E5 supporte jusqu’à la vitesse de PCI Express 2.0 x16
PCI_E6 supporte jusqu’à la vitesse de PCI Express 2.0 x4
PCI_E1 supporte jusqu’à la vitesse de PCI Express 1.0 x1
PCI_E3 supporte jusqu’à la vitesse de PCI Express 1.0 x1
