Fr-21
Français
Cette carte mère vous fournit les boutons suivants (optinnel) pour régler les fonctions
de l’ordinateur. Cette partie vous explique comment changer les fonctions de votre
carte mère par ces boutons.

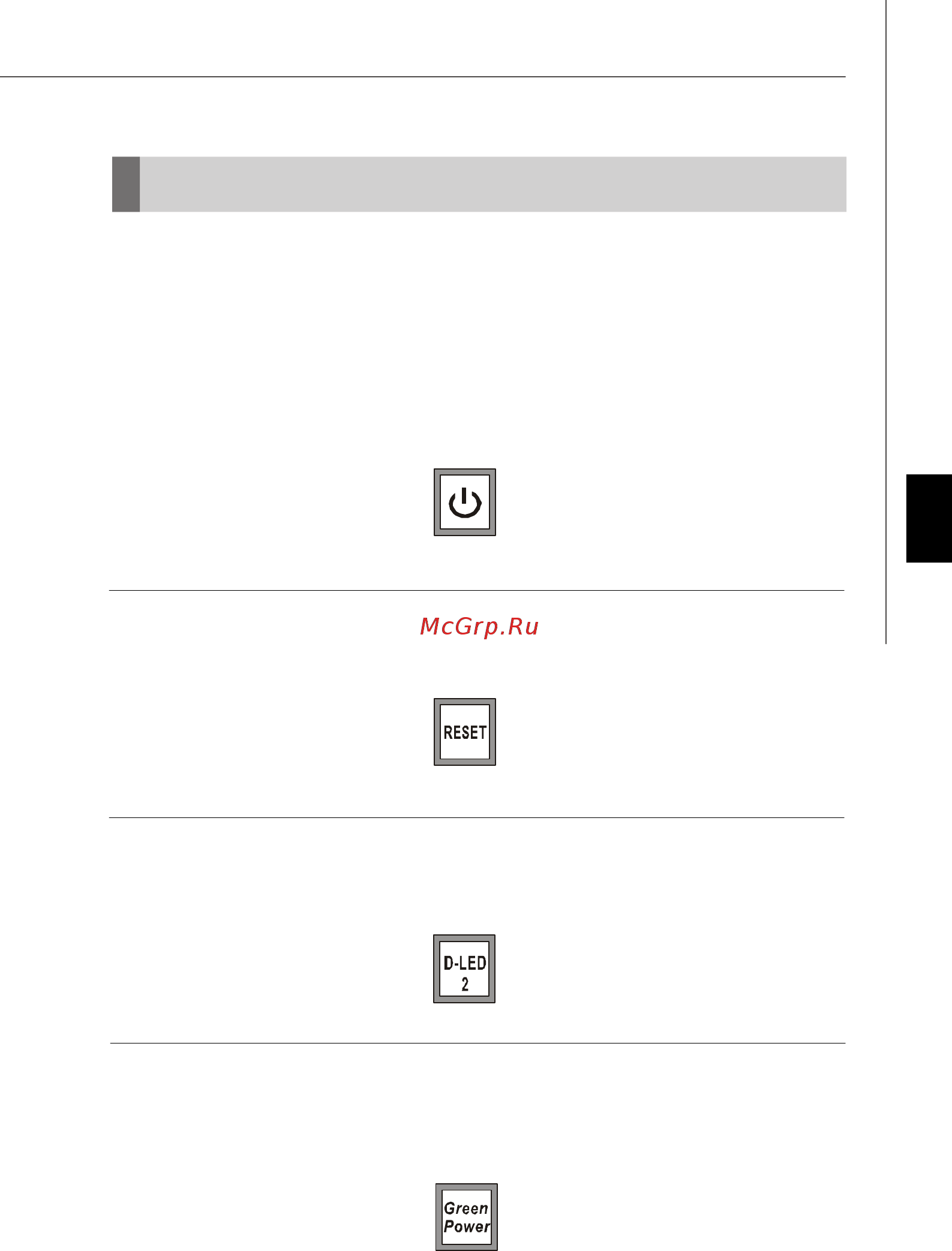

Boutons et poignée
Bouton d’alimentation : POWER1
Ce bouton d’alimentation sert à allumer ou éteindre le système. Appuyez sur ce
bouton pour allumer ou éteindre le système. Ce bouton s’alumera après que vous
allumiez le système et la lumière s’éteindra quand vous éteignez le système.
Bouton de réinitialisation : RESET1
Ce bouton de réinitialisation sert à réinitialiser le système. Appuyez sur ce bouton
pour réinitialiser le système. Ce bouton s’allume quand le système dans le statut S0.
RESET1
POWER1
Bouton D-LED2 : DLED2
Ce bouton sert à changer le menu sur le panneau D-LED2. Appuyez sur le bouton
pour changer le menu sur le bouton D-LED2. Veuillez vous référer au guide rapide de
D-LED2 pour plus de détails et d’utilisations.
DLED2
Bouton GreenPower
Ce bouton sert à configurer la fonction GreenPower du système. Une fois déclenché,
le système configure cette fonction en mode désactivé ou au mode auto.
