Fr-17
Français

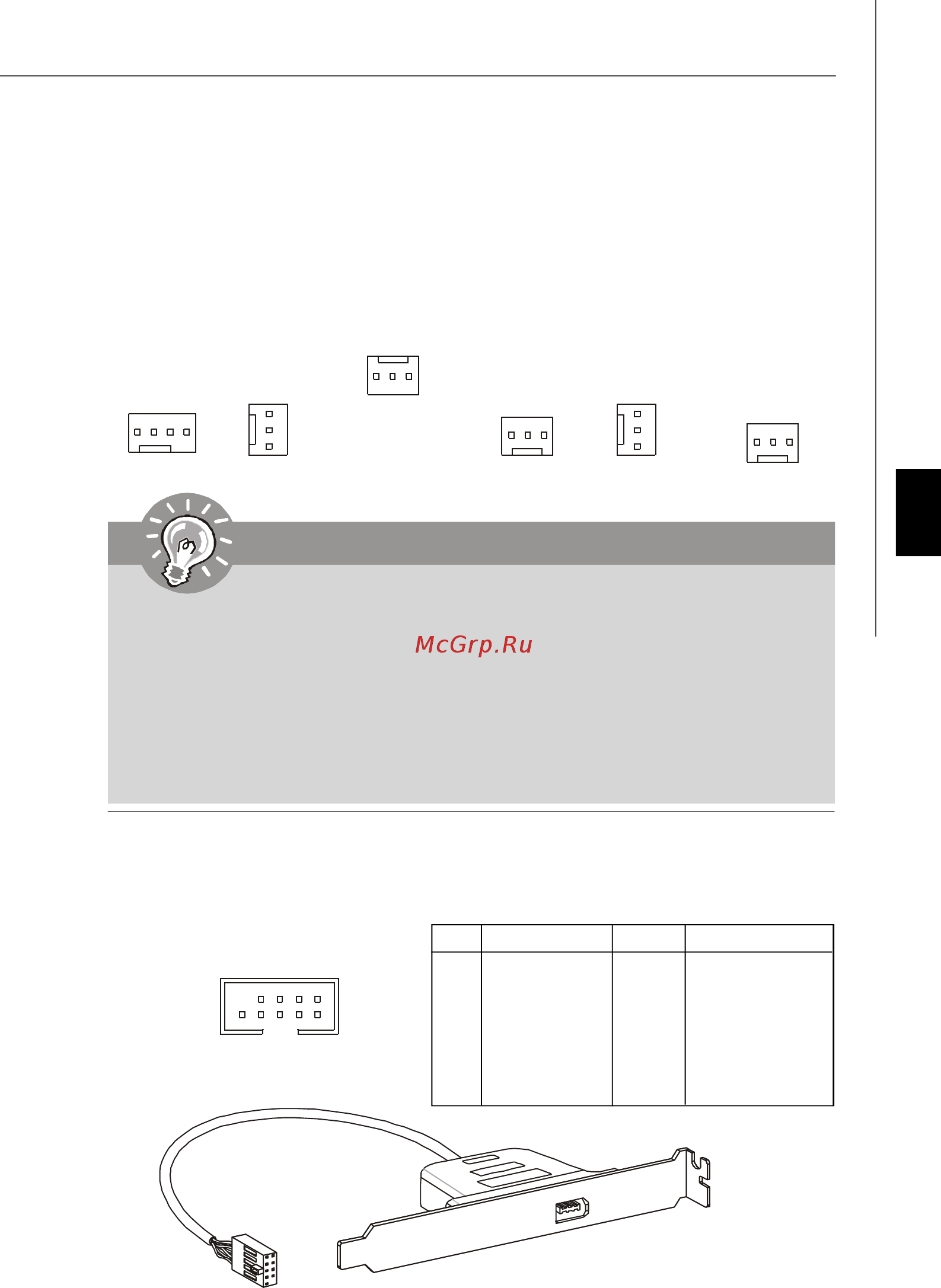

Connecteur d’alimentation du ventilateur : CPUFAN1, SYSFAN1~5
Les connecteurs de courant du ventilateur supportent le ventilateur de refroidissement
du système avec +12V. Lors du branchement des fils aux connecteurs, faites toujours
en sorte que le fil rouge soit le fil positif devant être relié au connecteur +12V ; et que
le fil noir soit le fil de mise à la terre devant être relié au connecteur de mise à la terre
GND. Si la carte mère est équipée d’un jeu de puces intégré pour moniteur de matériel
de système, vous devrez utiliser un ventilateur spécial pourvu d’un capteur de vitesse
afin de contrôler le ventilateur de l’unité centrale.
Connecteur IEEE1394 : J1394_1 (optionnel)
Ce connecteur vous permet de relier un appareil IEEE1394 via un support optionnel
IEEE1394.
Support IEEE1394 (Optionnel)
Important
1.Veuillez consulter les ventilateurs d’unité centrale recommandés sur les
sites officiels des fabricants de processeurs ou bien consultez votre
revendeur pour obtenir des informations sur le ventilateur de
refroidissement adapté à votre unité centrale.
2.CPUFAN1 supporte le contrôle du ventilateur. Vous pouvez installer l’unité
Overclocking Center qui contrôlera automatiquement la vitesse du
ventilateur du CPU selon sa température actuelle.
3. SYSFAN1~3 supportent aussi le contrôle du ventilateur. vous pouvez choisir
le pourcentage de la vitesse pour SYSFAN1/2/3 dans le BIOS.
J1394_1
1
9
2
10
CPUFAN1
SENSOR
+12V
GND
CONTROL
+12V
GND
SENSOR
SYSFAN1 SYSFAN2
SENSOR
+12V
GND
+12V
GND
NC
SYSFAN4 SYSFAN5
NC
+12V
GND
SYSFAN3
SENSOR
+12V
GND
Définition de pins
PIN SIGNAL PIN SIGNAL
1 TPA+ 2 TPA-
3 Ground 4 Ground
5 TPB+ 6 TPB-
7 Cable power 8 Cable power
9 Key (no pin) 10 Ground
