Carte mère MS-7566
Fr-16

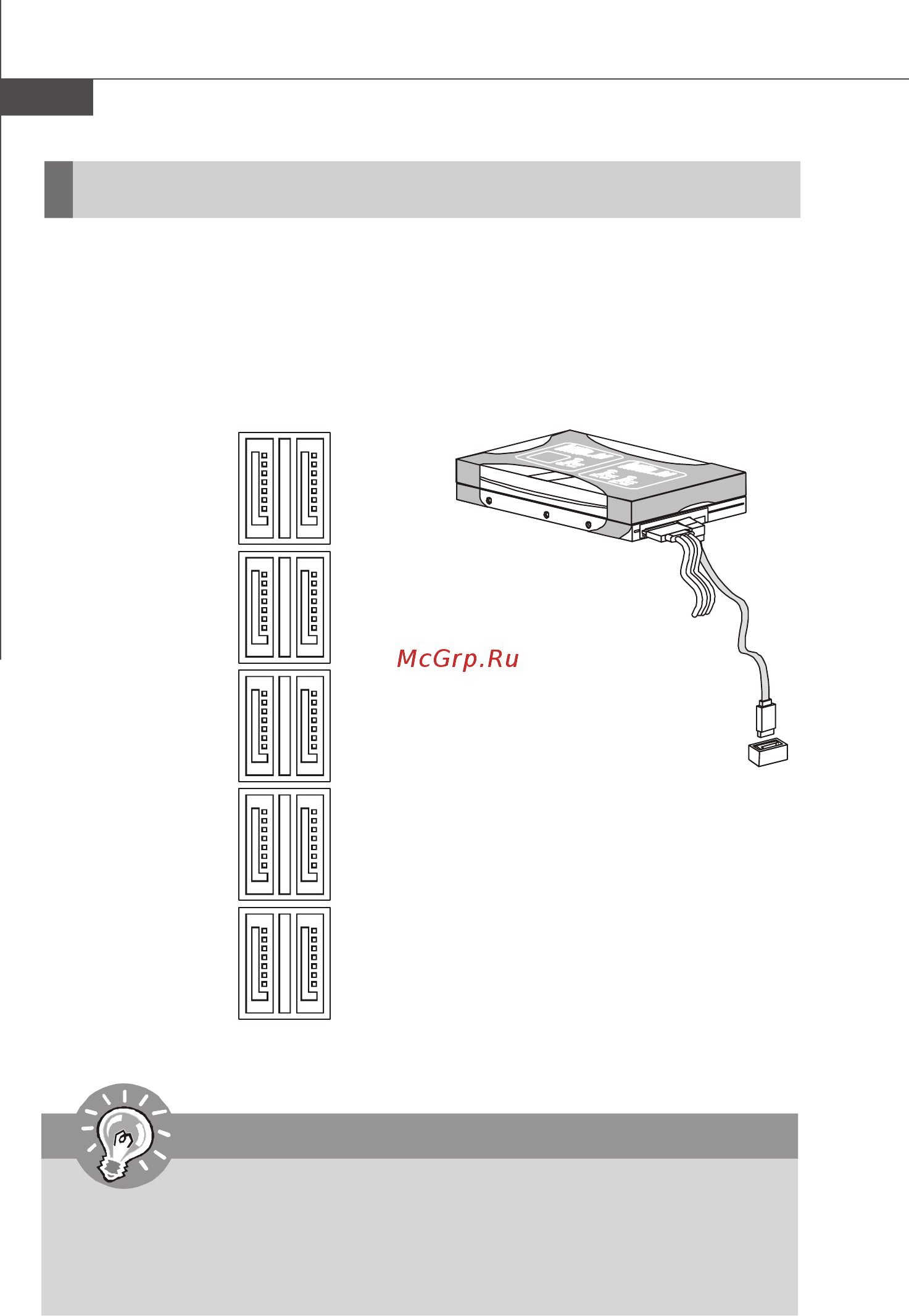

Connecteur Sérial ATA : SATA1~10
Ce connecteur est un port d’interface de série ATA haut débit. Chaque connecteur
peut être relié à un appareil de série ATA.
SATA1~6
sont supportés par ICH10R
SATA1_3
SATA2_4
Important
1. Veuillez ne pas plier le câble de série ATA à 90°. Autrement des pertes de
données pourraient se produire pendant la transmission.
2. Veuillez toujours utiliser d’abord les connecteurs Intel défaut SATA
(SATA1~6).
SATA5_6
Connecteurs
SATA7_8
SATA9_10
SATA7~8
sont supportés par le premier JMB322
SATA9~10
sont supportés par le deuxième JMB322
