MS-7566 Системная плата
Ru-26
Технология NVIDIA 3-Way SLI
Технология NVIDIA 3-Way SLI (Scalable Link Interface) позволяет трем GPU
работать совместно, повышая быстродействие графической подсистемы (до
3х). Для использования данной технологии, видеокарты необходимо соединить
мостами 3-Way SLI. Смотрите следующие иллюстрации, поясняющие, как
включить технологию 3-Way SLI.

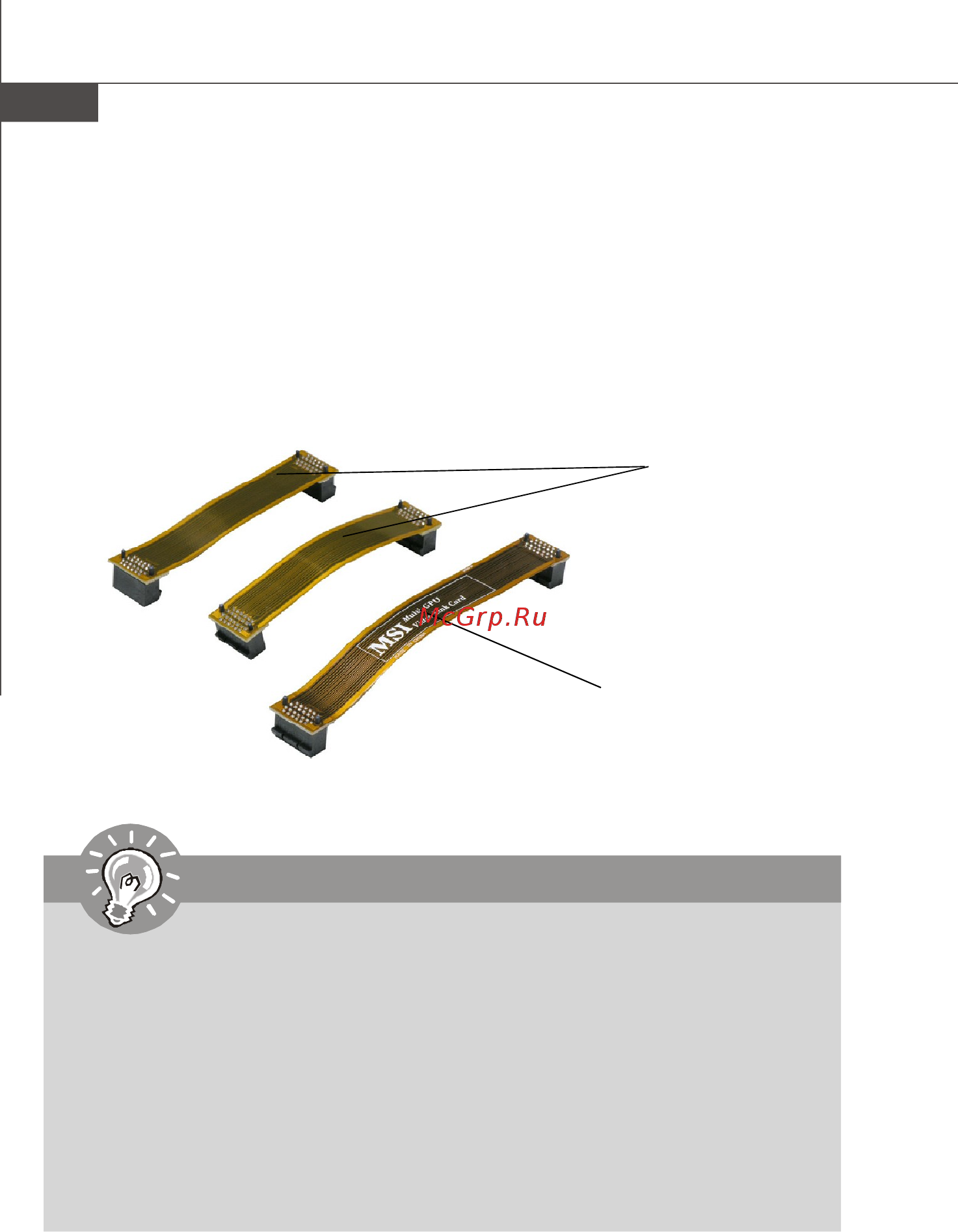

Длинный мостик
3-Way SLI
Короткий мостик
3-Way SLI
Внимание
Перед установкой оборудования платформы 3-Way SLI, убедитесь в
том , что:
1. Все три видеокарты поддерживают технологию 3-Way SLI, сделаны
одним производителем и имеют одинаковые спецификации;
2. Платформа 3-Way SLI имеет особые требования к блоку питания,
который должен поддерживать пиковую нагрузку как минимум 1000W,
чтобы обеспечить потребности трёх видеокарткарт в системе;
3. Платформа 3-Way SLI требует также использование корпуса,
соответствующего спецификациям для 3-way NVIDIA SLI.
4. Посетите официальный вейбсайт NVIDIA, чтобы узнать о
видеокартах, блоках питания и корпусах, совместимых с 3-Way SLI.
