Aten VM5808H [11/118] Overview
![Aten VM5808H [11/118] Overview](/views2/1211650/page11/bgb.png)

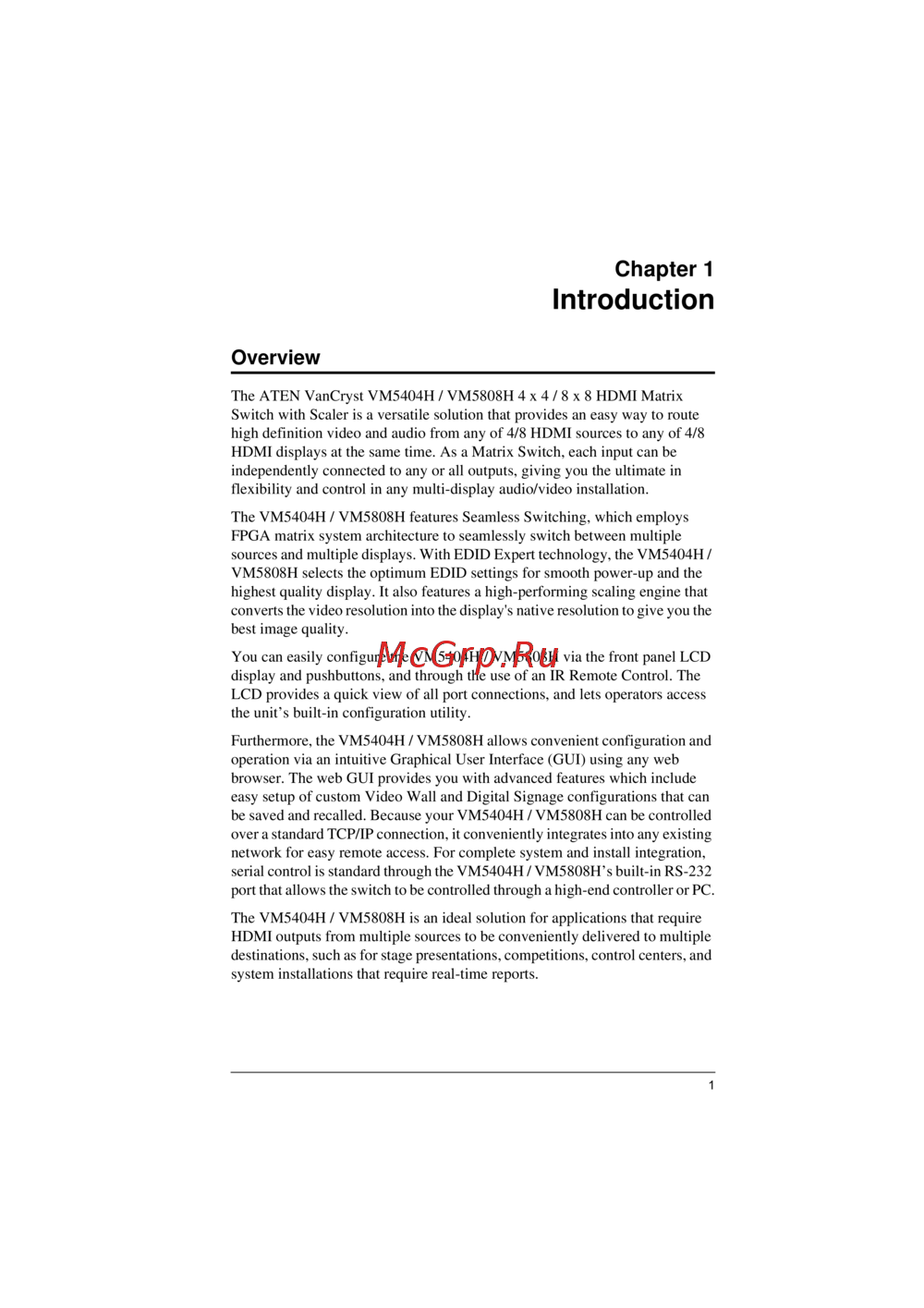

1
Chapter 1
Introduction
Overview
The ATEN VanCryst VM5404H / VM5808H 4 x 4 / 8 x 8 HDMI Matrix
Switch with Scaler is a versatile solution that provides an easy way to route
high definition video and audio from any of 4/8 HDMI sources to any of 4/8
HDMI displays at the same time. As a Matrix Switch, each input can be
independently connected to any or all outputs, giving you the ultimate in
flexibility and control in any multi-display audio/video installation.
The VM5404H / VM5808H features Seamless Switching, which employs
FPGA matrix system architecture to seamlessly switch between multiple
sources and multiple displays. With EDID Expert technology, the VM5404H /
VM5808H selects the optimum EDID settings for smooth power-up and the
highest quality display. It also features a high-performing scaling engine that
converts the video resolution into the display's native resolution to give you the
best image quality.
You can easily configure the VM5404H / VM5808H via the front panel LCD
display and pushbuttons, and through the use of an IR Remote Control. The
LCD provides a quick view of all port connections, and lets operators access
the unit’s built-in configuration utility.
Furthermore, the VM5404H / VM5808H allows convenient configuration and
operation via an intuitive Graphical User Interface (GUI) using any web
browser. The web GUI provides you with advanced features which include
easy setup of custom Video Wall and Digital Signage configurations that can
be saved and recalled. Because your VM5404H / VM5808H can be controlled
over a standard TCP/IP connection, it conveniently integrates into any existing
network for easy remote access. For complete system and install integration,
serial control is standard through the VM5404H / VM5808H’s built-in RS-232
port that allows the switch to be controlled through a high-end controller or PC.
The VM5404H / VM5808H is an ideal solution for applications that require
HDMI outputs from multiple sources to be conveniently delivered to multiple
destinations, such as for stage presentations, competitions, control centers, and
system installations that require real-time reports.
