Chapter 1. Introduction
7

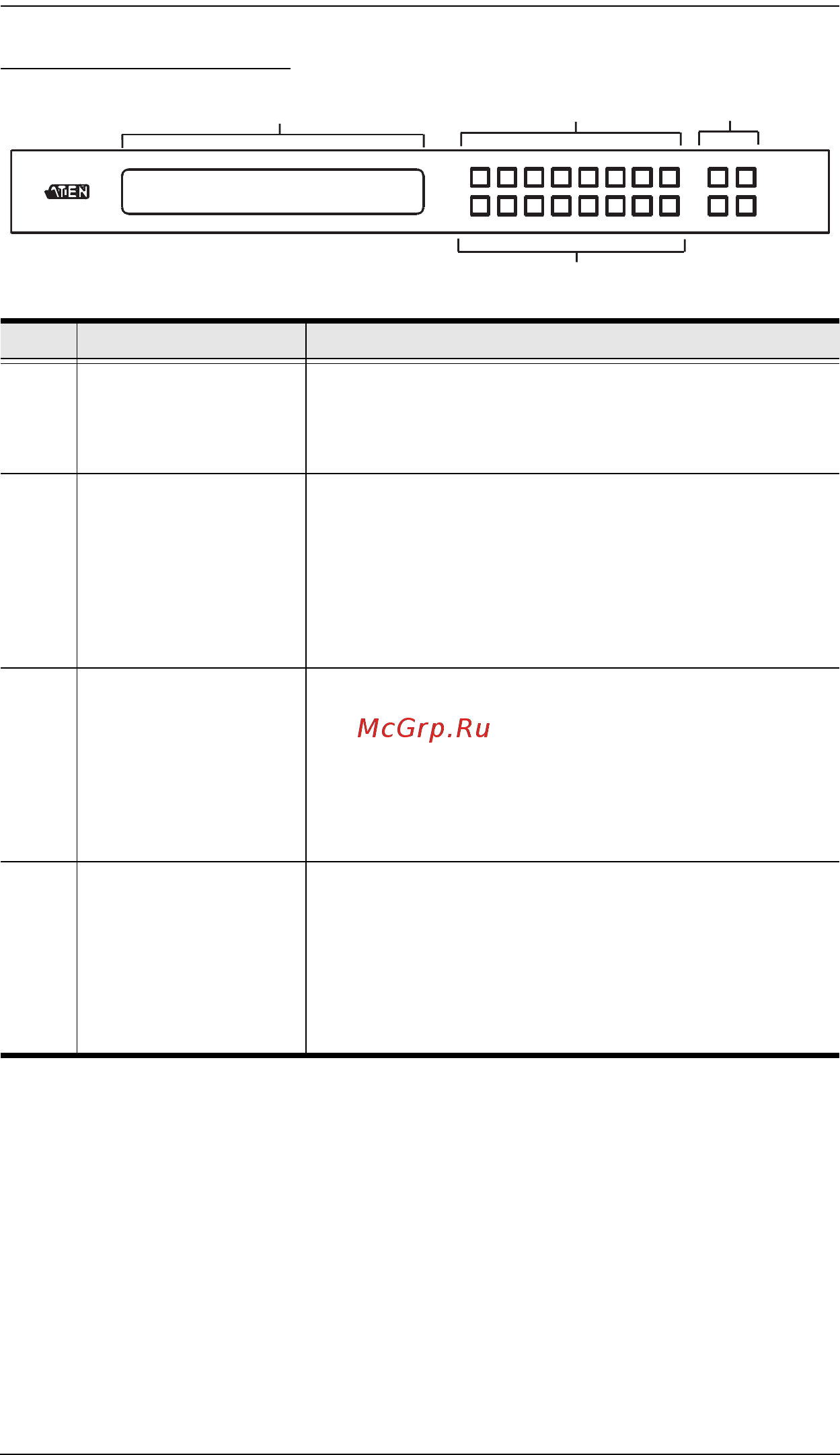

VM5808H Front View
No. Component Description
1 LCD Display The LCD Display gives a quick view of all port
connections, and shows the various options for
configuring and operating the VM5808H. For full
details, see Main Screen, page 17.
2 Input Pushbuttons These pushbuttons refer to the HDMI Input ports found
on the VM5808H rear panel. Press to select the Input
port. These pushbuttons may also correspond to menu
options, connection profiles (P1–P8) and so on.
Note: The INPUT (1–8) front panel pushbuttons have
built-in LEDs that light to indicate they have been
selected.
3 Output Pushbuttons These pushbuttons refer to the HDMI Output ports
found on the VM5808H rear panel. Press to select the
Output port. These pushbuttons may also correspond
to connection profiles (P9–P16).
Note: The OUTPUT (1–8) front panel pushbuttons
have built-in LEDs that light to indicate they have been
selected.
4 Function Pushbuttons The function pushbuttons (MENU, PROFILE, ENTER
and CANCEL) are for navigating the LCD built-in
configuration utility. For full details, see Front Panel
Pushbuttons, page 15.
Note: The MENU and PROFILE front panel
pushbuttons have built-in LEDs that light to indicate
they have been selected.
1
2
3
4
