VM5404H / VM5808H User Manual
28

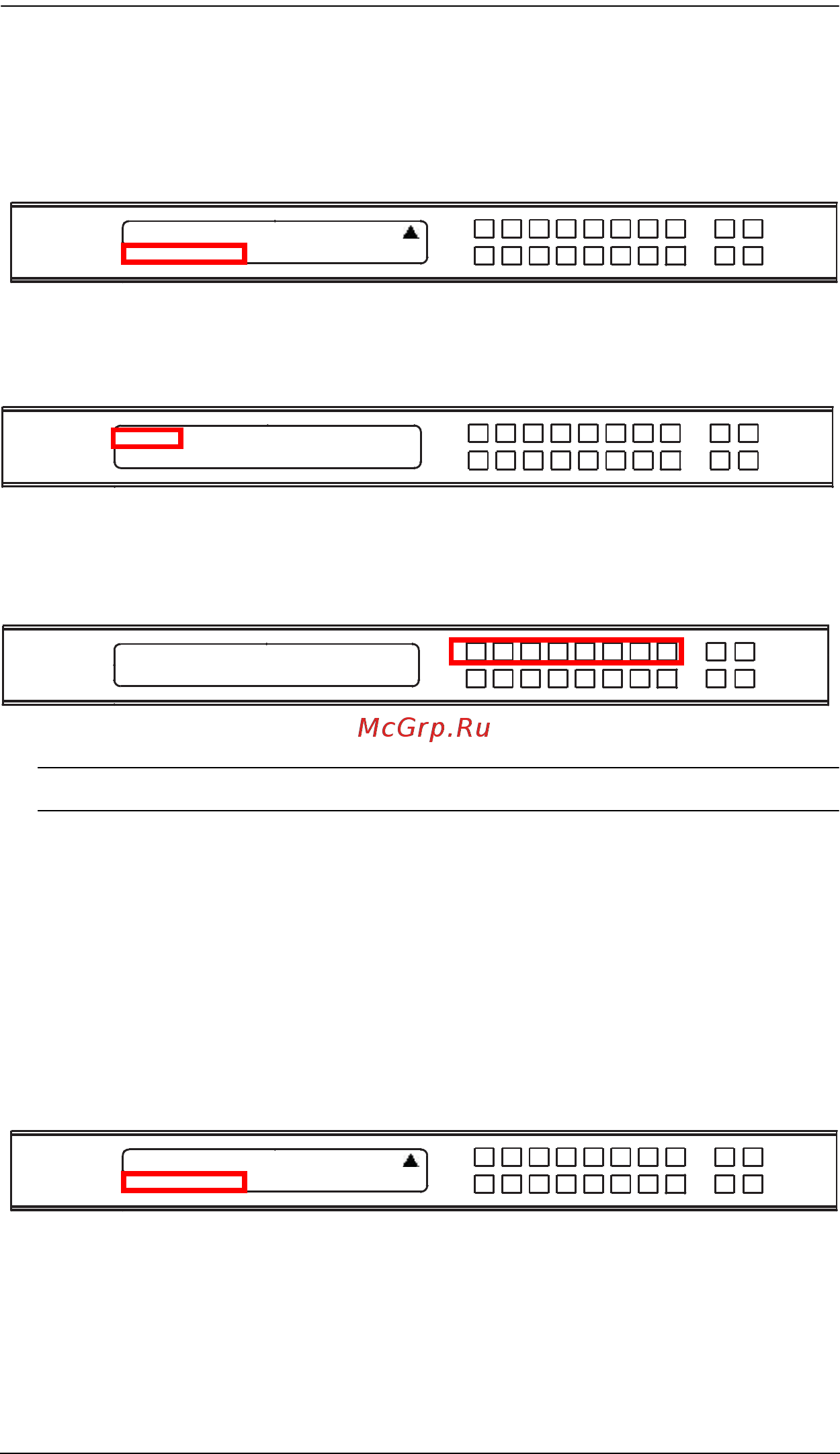

Output Status
To configure the Output Status settings for each output port, do the following:
1. From the Operation Mode page, press 8 or Next to go to the next page,
then press pushbutton 2:
2. From the Output Status page, press 1 to select Video.
3. Press pushbuttons (1–8) or (1–4) to enable (ON) or disable (NA) the
video/audio of the output port.
Note: The default Output Status setting is On.
4. Press Menu to return to the Menu page.
5. Press Cancel to return to the previous step without saving.
To configure the Output Resolution settings for each output port, do the
following:
1. From the Operation Mode page, press 8 or Next to go to the next page,
then press pushbutton 2:
1: OSD
7: Back
2: Output Status
1: Video
2: Output Resolution
OUTPUT 1 2 3 4 5 6 7 8
ON ON ON NA ON NA ON NA
1: OSD
7: Back
2: Output Status
