VM5404H / VM5808H User Manual
62

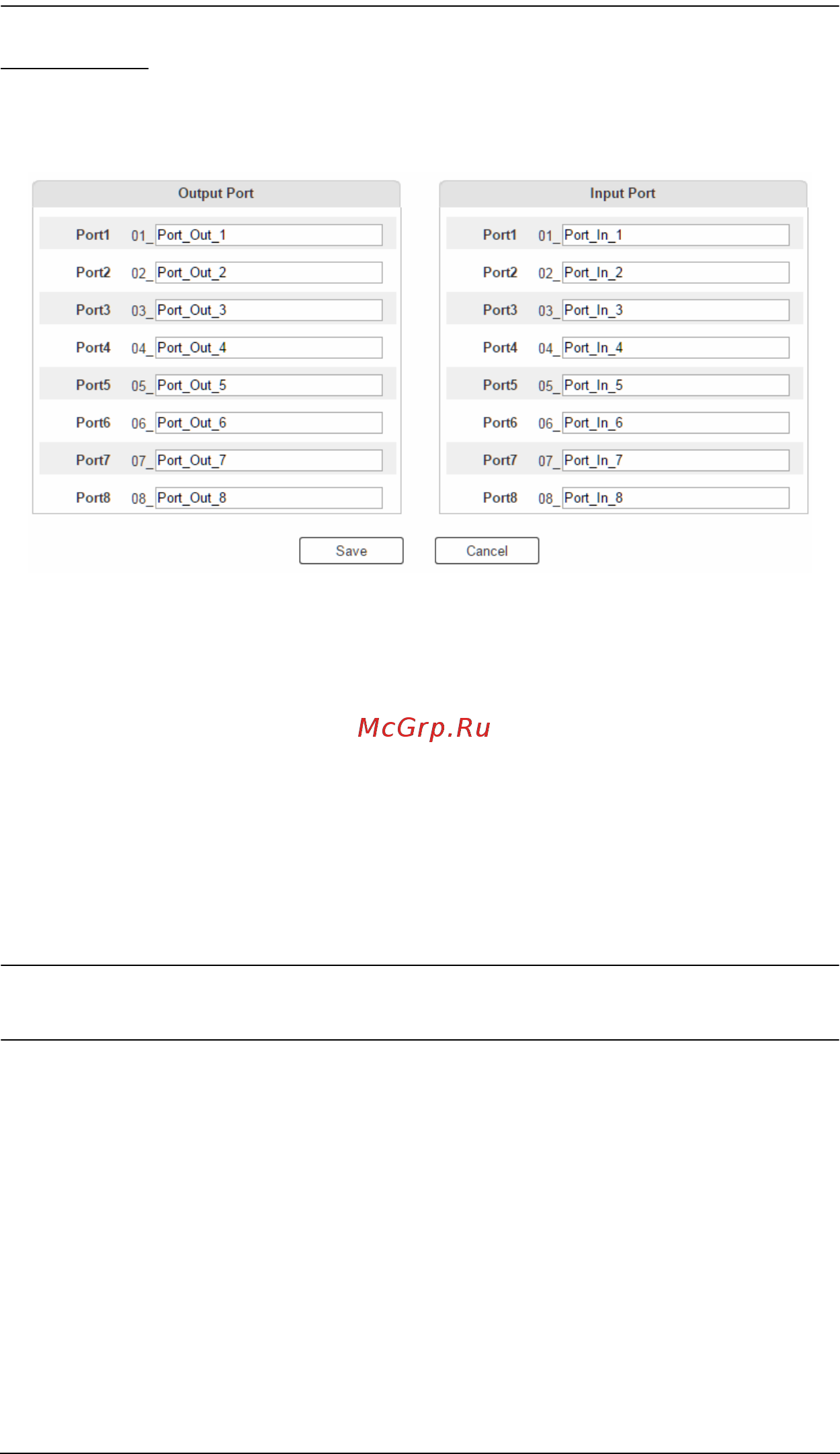

Port Name
The Port Name page lets you name the input and output ports for easy
identification.
To name an Input/Output port, enter a descriptive name of up to 16
multi-language characters (excluding :;=[]+=/?\|) in the corresponding
field and click Save.
Language characters available include: English, French, German,
Italian, Japanese, Korean, Portuguese, Russian, Spanish, Simplified
Chinese and Traditional Chinese.
To change an Input/Output port’s name, enter another value and click
Save.
Input and Output port names can be the same.
Press Cancel to go back a level, return to the initial screen, or exit.
Note: The VM5404H will only have four Output Port and four Input Port
fields to name.
