VM5404H / VM5808H User Manual
58

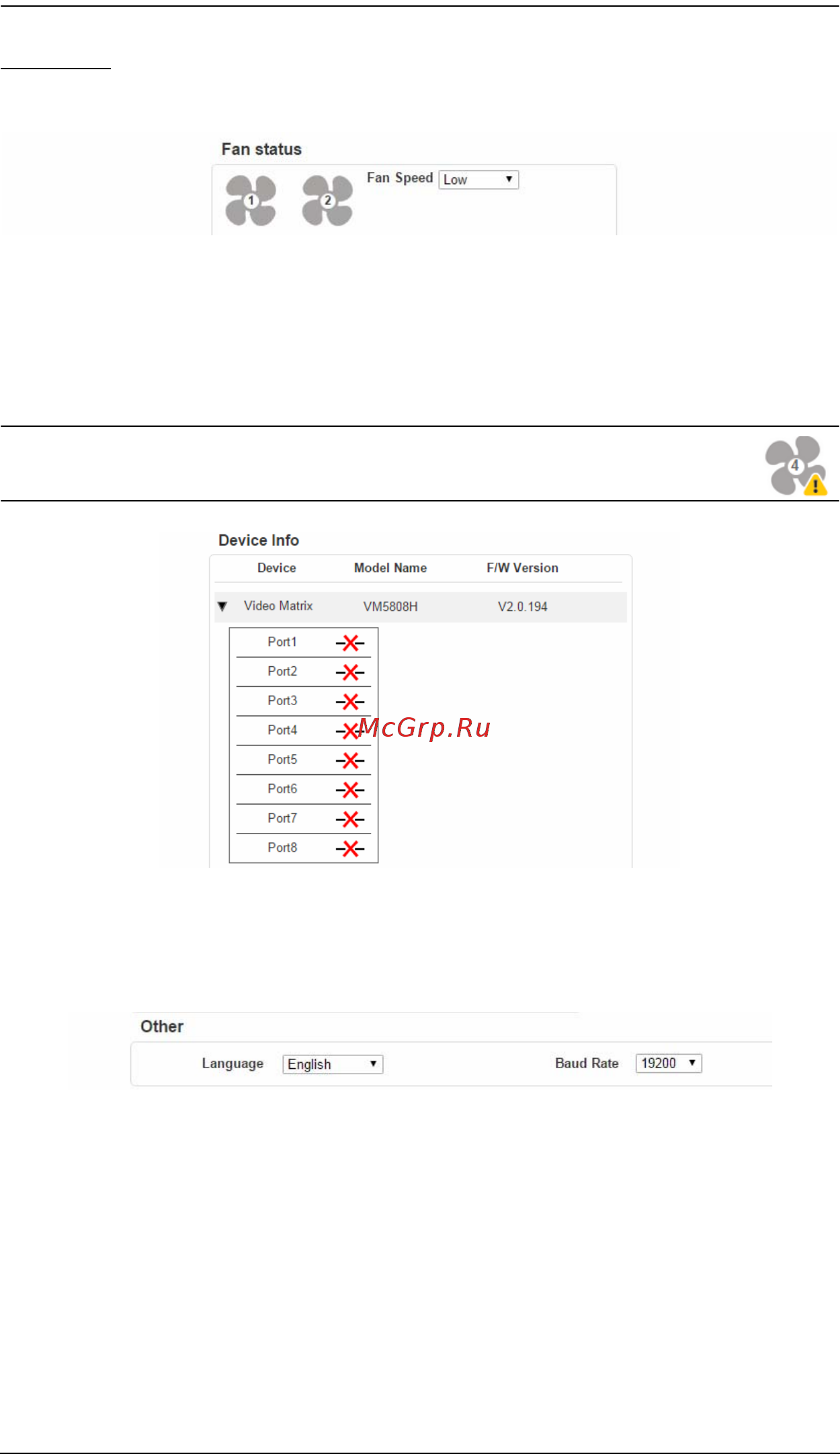

General
The General page has three sections: Fan Status, Device Info and Other.
Fan Status
This section displays the VM5404H / VM5808H’s two fans’ statuses.
The VM5404H / VM5808H also includes a drop-down menu which
allows for manual selection of fan speed.
Note: If the fans have stopped working or are switched off, they will
appear as follows.
Device Info
This section lists the device’s type, Model Name, Firmware Version
and port statuses.
Other
Use the Language drop-down menu to select a preferred user interface
language.
Options include: English, French, German, Italian, Japanese,
Korean, Portuguese, Russian, Spanish, Simplified Chinese and
Traditional Chinese.
Use the Baud Rate drop-down menu to select a serial port setting.
Options include: 9600, 19200, 38400 and 115200.
