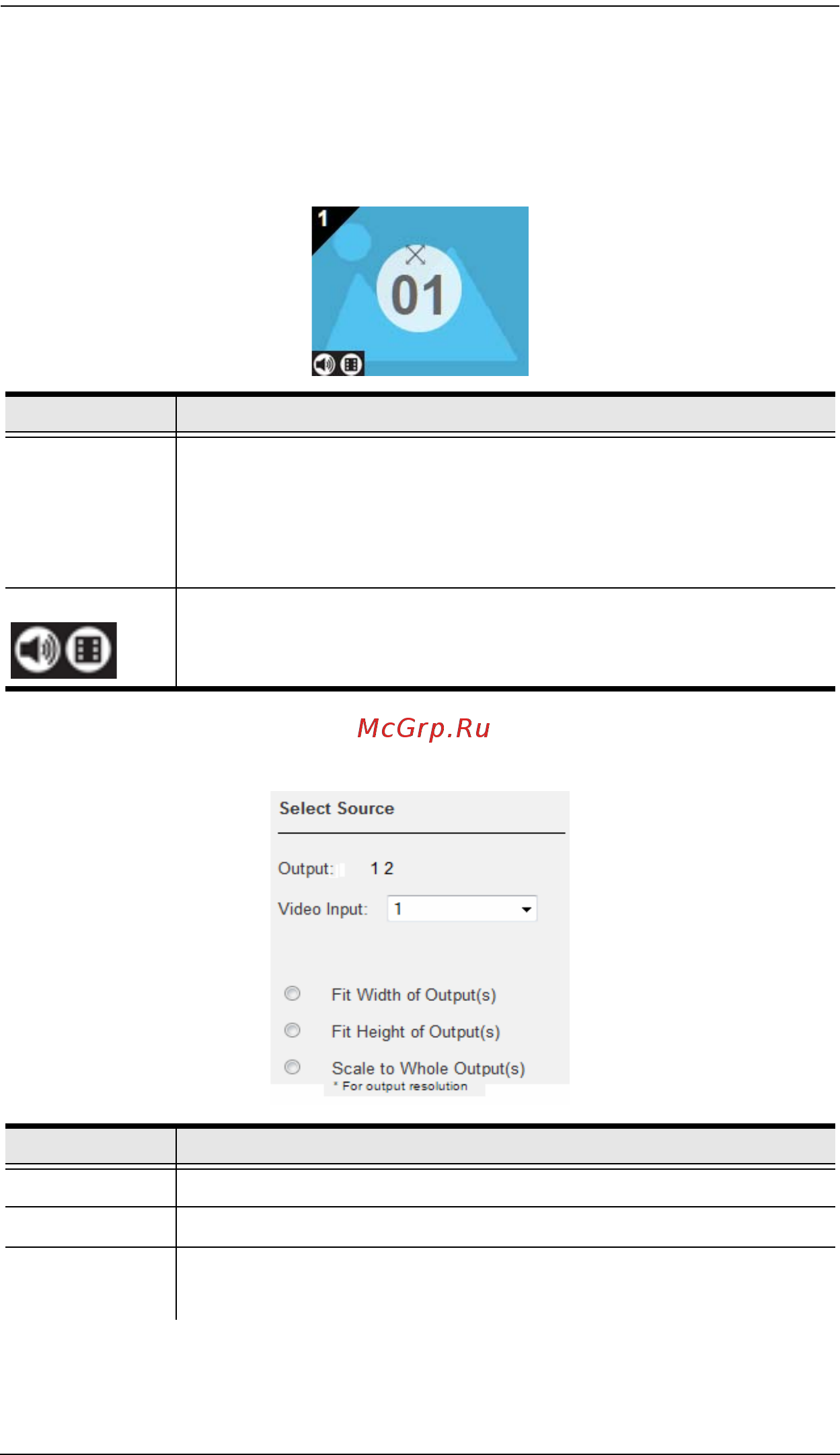

Chapter 4. Browser Operation
47
Click Grid View to use an alternate method for configuring connection
profiles (see page 48).
Output Icon
Select Source
Option Description
Output Icon Click an Output icon(s) to highlight it in green and use the Select
Source menu to set the video options (see Select Source below).
The large number is the Video Input port selected for the display.
The small number (upper-left corner) is the Output port of the
display.
Mute / Video Click the speaker icon to mute the audio on/off.
Click the video icon to turn the video off/on.
Option Description
Select Source The Select Source menu appears when you click an Output icon.
Output Displays the Outputs that are selected for the configuration change.
Video Input Use the drop-down menu to select the Video Input.
Click Save or Save as to save the changes.
