VM5404H / VM5808H User Manual
34
Profile Pushbutton
The PROFILE pushbutton lets users conveniently switch between connection
profiles that have been saved or added to the Profile List (see Profile List,
page 39).
When a Profile is in use, its profile number (P1–P16) is shown on the lower
right corner of the LCD display.
The Profile pushbutton functions as follows:
After pressing the Profile pushbutton, available profile numbers will light
up. The active profile number will flash. use the Input/Output pushbuttons
to switch to a specific profile (P1 to P16) or (P1 to P8). Note that:
Input ports 1–8 or 1-4 correspond to Profile P1 to P8 or P1 to P4
Output ports 1–8 or 1-4 correspond to Profile P9 to P16 or P5 to P8
(where Output Port 1=Profile 9, Output Port 2=Profile 10... Output
Port 8=Profile 16)
The selected pushbutton’s light flashes, and the VM5404H / VM5808H
immediately applies the port connections configured in the selected
profile. If the light changes to a steady state, it means the profile is valid.
After pressing the Profile pushbutton, pressing it again will change to next
profile in Profile Scheduling (see page 44), not the profile list. This feature
is only available while a schedule is playing.
Press the Cancel pushbutton to exit
Note: If there are no profiles configured on the VM5404H / VM5808H device,
an error message “No Available Profile” is displayed when the Profile
pushbutton is pressed.
A Profile’s port connections can be edited using the front panel pushbuttons
(see Port Switching, page 17) or from the Connections page of the Browser
GUI (see Connection Profiles, page 46). Additionally, the Profile List can be
configured via the Profile page of the Browser GUI (see Profile List, page 39).

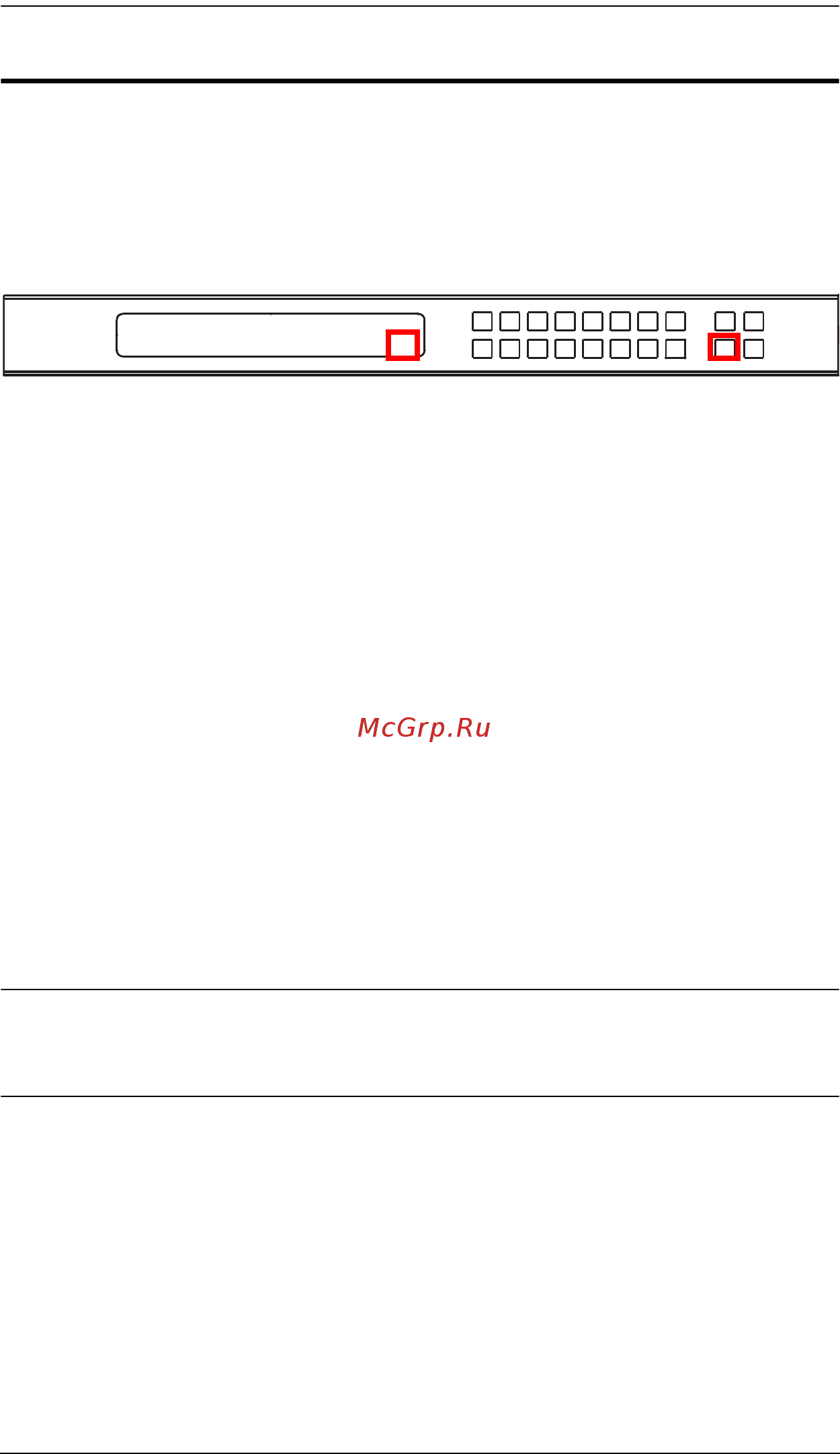

INPUT 1 2 5 5 1 1 3 4
OUTPUT 1 2 3 4 5 6 7 8
P1
