Aten VM5808H [19/118] Ir remote control

Chapter 1. Introduction

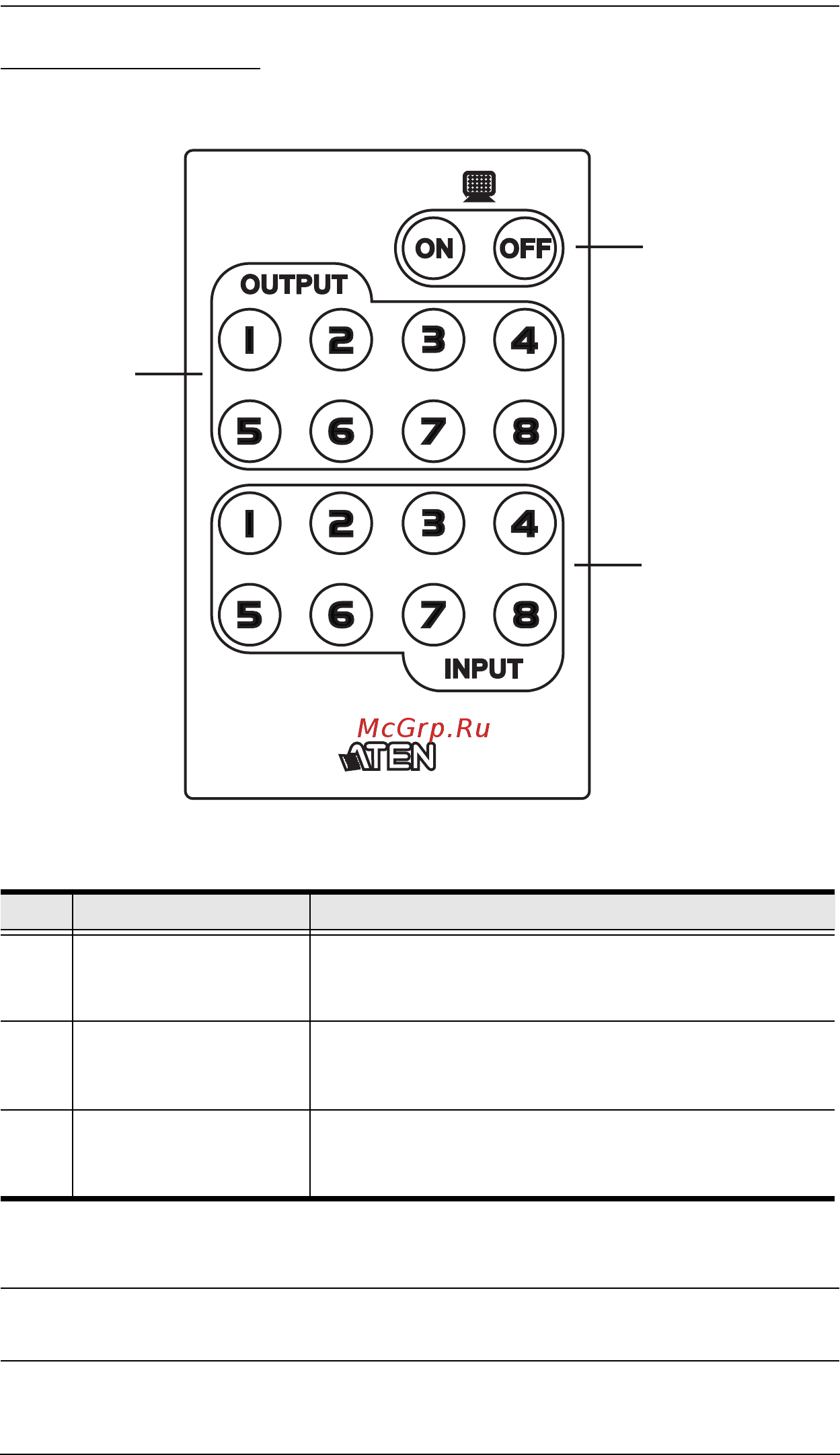

IR Remote Control

Note: The VM5404H's IR remote control only supports use the 1~4 Input and

1~4 Output pushbuttons.

No. Component Description

1 Power ON/OFF Use the ON and OFF pushbuttons to turn the Output

displays on or off – by individual port, or all ports. (see

IR Remote Control Operation, page 35)

2 Output Pushbuttons

1–8

Press Output display pushbuttons 1–8 to select the

Output display you want to configure (see IR Remote

Control Operation, page 35).

3 Input Pushbuttons

1–8

Press Input source pushbuttons 1–8 to select the

Input source you want to display on a selected output

(see IR Remote Control Operation, page 35).
