Chapter 4. Browser Operation

EDID & CEA Description

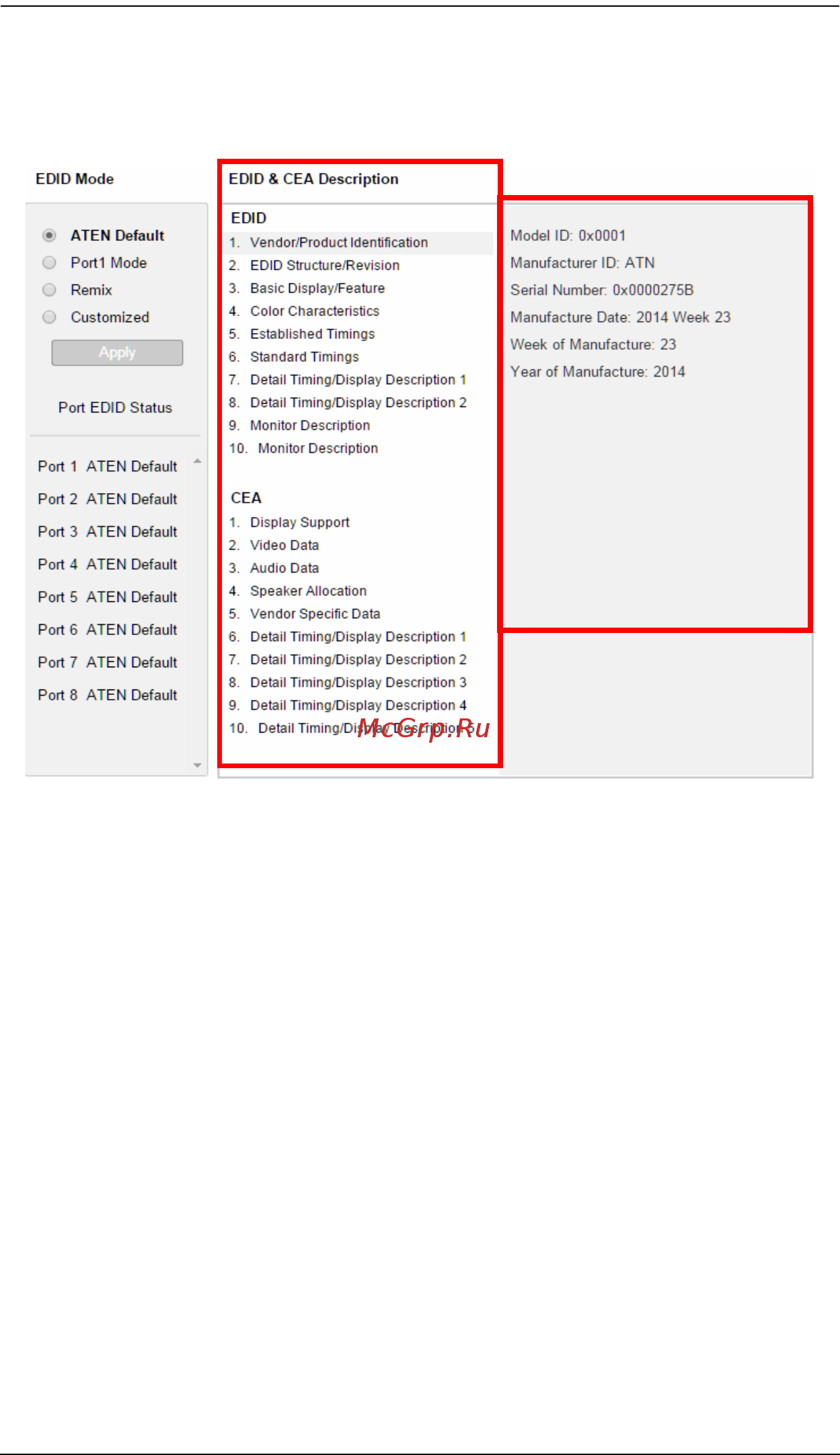

The right panel of the screen lets users view the configuration of the EDID and

CEA Modes selected:

 From the left column, click the option that you want to view and/or

edit. There are two categories: EDID (Extended Display Identification

Data) and CEA (Consumer Electronics Association).

 When you highlight the menu items on the left column, the right

column displays the current settings for the corresponding EDID

configuration. Some of the screens are read-only.

 See Customized EDID Settings, page 68 for more information on these

two columns.
