VM5404H / VM5808H User Manual
50

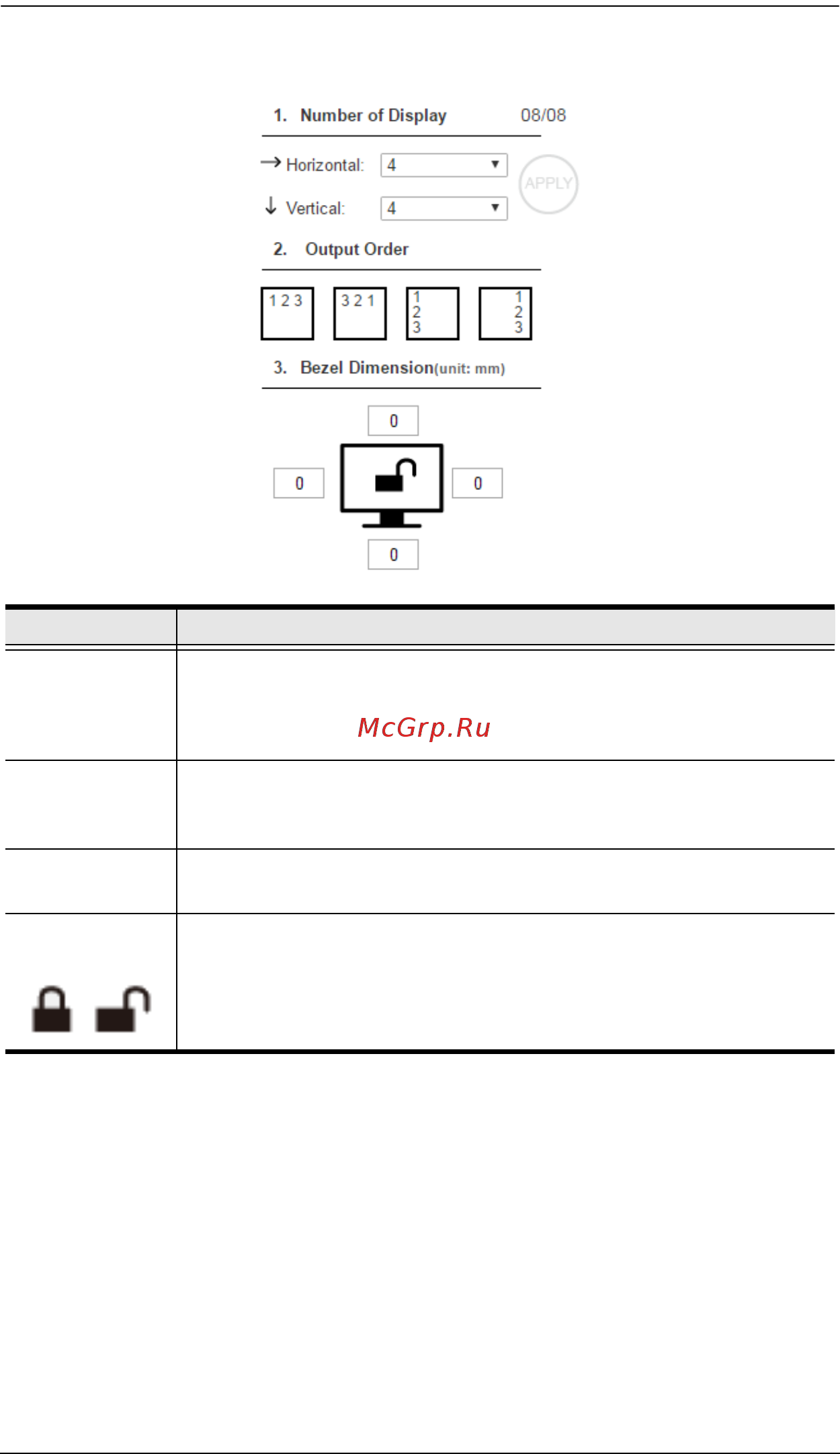

Number of Displays / Bezel Dimensions
Option Description
Number of
Displays
Use the Horizontal and Vertical drop-down menu to select the
number of displays that make up the video wall (a maximum of 64
are supported). Match this to the physical layout of the displays.
Click Apply to set the layout.
Output Order Automatically assign output ports by selecting one of the following
options: Left to right (top to bottom), right to left (top to bottom), top
to bottom (left to right) or top to bottom (right to left).
Bezel
Dimension
Use the four boxes to increase/decrease the frame size for each
active display.
Monitor
Lock / Unlock
Click the monitor icon to Lock the (4) bezel settings, so that when
one size is changed they all change.
Click the monitor icon to Unlock the (4) bezel settings, so that each
size can be set independently.
